M Roth GmbH & Co 31,372 Gal M Roth GmbH Storage Tank, 304 S/S
Overview
Description

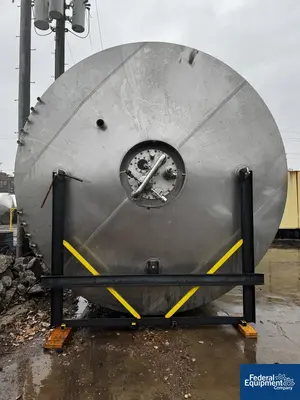

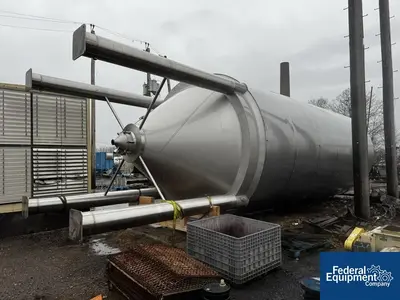

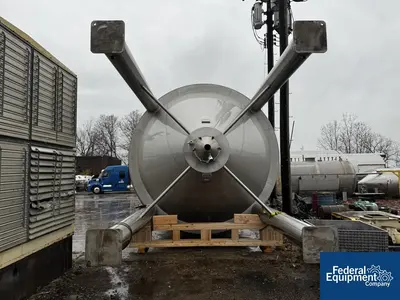

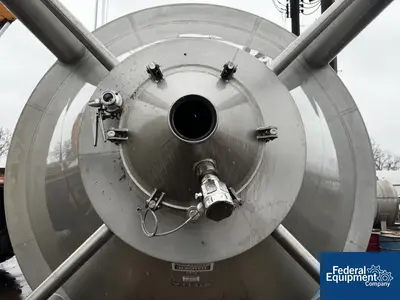

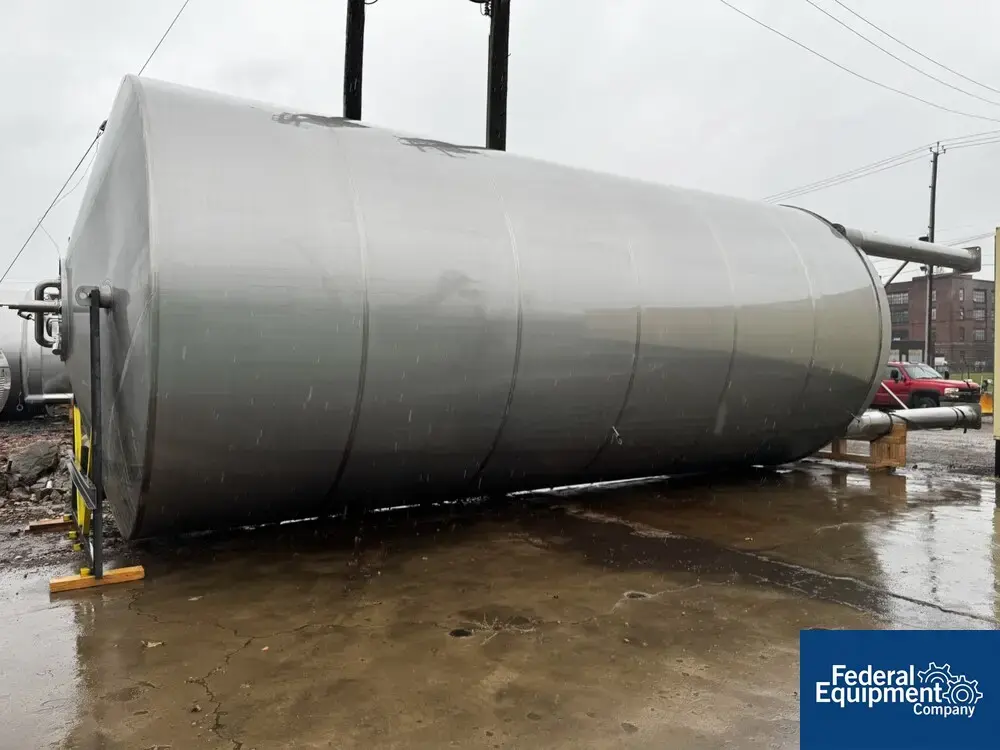

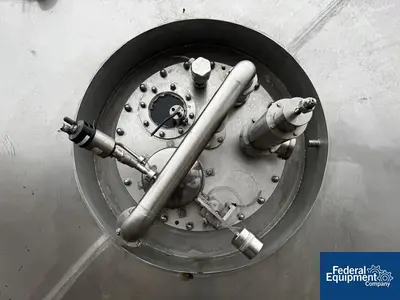

Used 118,745 liter (31,372 gallon) M Roth GmbH storage tank, 304 stainless steel construction, approximately 3,900mm (153.54") inner diameter x 8,500mm (334") straight side, dish top, 55 degree cone bottom, approximately 2,400mm (94.48") deep, rated 0.9 bar at 40°C internal, jacketed cone and 196" of straight side in (4) zones rated 3 bar at 40°C, on (4) stainless steel legs with approximately 40" discharge height, approximately 4,100mm (161.41") outside diameter approximately 534" overall height, with 164.5" overall width and height prone position shipping dimension, serial# 14063-19, built 2016.
Specifications
Year of Construction: 2016
Material of Construction: Stainless Steel
Capacity (Gallons): 31372
Serial Number: 14063-19
Jacketed: True
Stainless Steel Grades: 304
Drawings: True
