2022 Haffner DMC-055 CNC PVC Dual-Profile Machining Center, 10-Axis Servo System, Servo-Controlled Cutting Saw, 13-Tool Machining Group, Automatic Profile Clamping, Scrap Conveyor, Long-Bed Profile Loading Magazine, Outfeed Conveyor
| Min Profile Width | 1.38" | 35.052 mm |
| Max Profile Width | 5.12" | 130.05 mm |
| Min Profile Height | 1.38" | 35.052 mm |
| Max Profile Height | 6.3" | 160.02 mm |
| Min Raw Profile Length | 23.62" | 599.95 mm |
| Max Raw Profile Length | 255.91" | 6,500.1 mm |
| Min Machining Length | 12.99" | 329.95 mm |
| Max Machining Length | 255.91" | 6,500.1 mm |
| Cut Angles | 45° / 135° | 45° / 135° |
| Saw Diameter | 19.68" | 499.87 mm |
| Made In | Turkey | Turkey |
| Control | CNC (PC-Based) | CNC (PC-Based) |
| Dimensions | 577.56" X 169.29" X 89.76" | 577.56" X 169.29" X 89.76" |
| Weight | 13,889 lb | 13,889 lb |
Dual-profile parallel production system

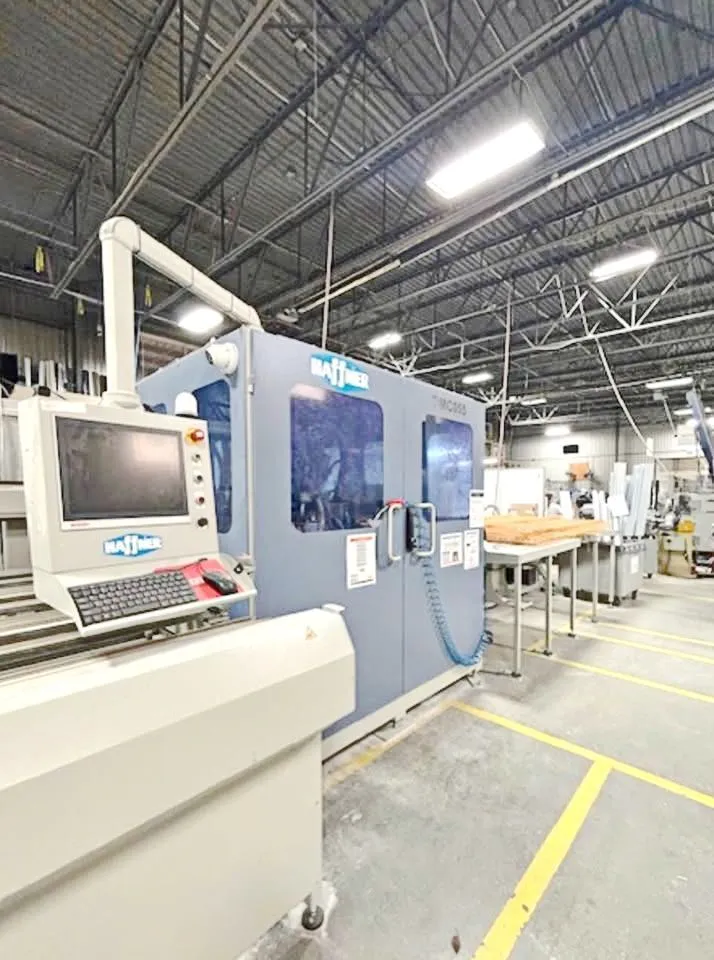

15" touchscreen HMI
Ø19.69" servo-controlled cutting saw
10-axis servo motion system

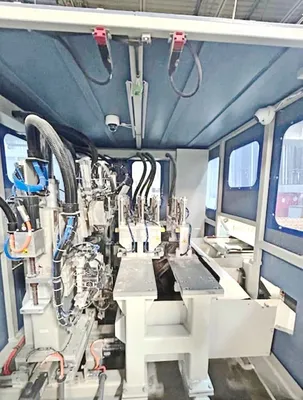

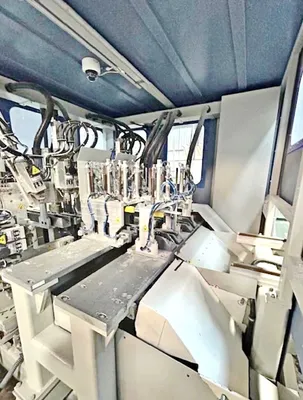

13-tool machining group
Multi-spindle drill blocks
3-axis automatic profile clamping system
Automatic scrap conveyor system

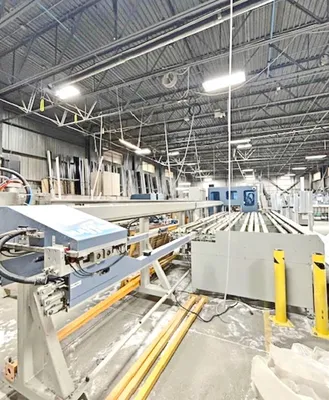

Long-bed profile loading magazine (20 ft capacity)

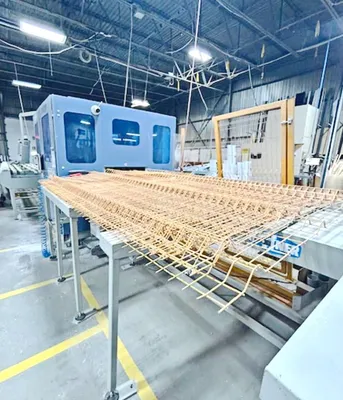

Outfeed conveyor & support table system
Internal machine-monitoring camera
Pneumatic fixturing & tooling arrays
Enclosed machining cabin w/ safety windows
Integrated extraction & chip-handling circuit
Full electrical cabinet w/ HMI arm
Profile support rollers & transfer rails
Safety light curtains / protection grid at outfeed
