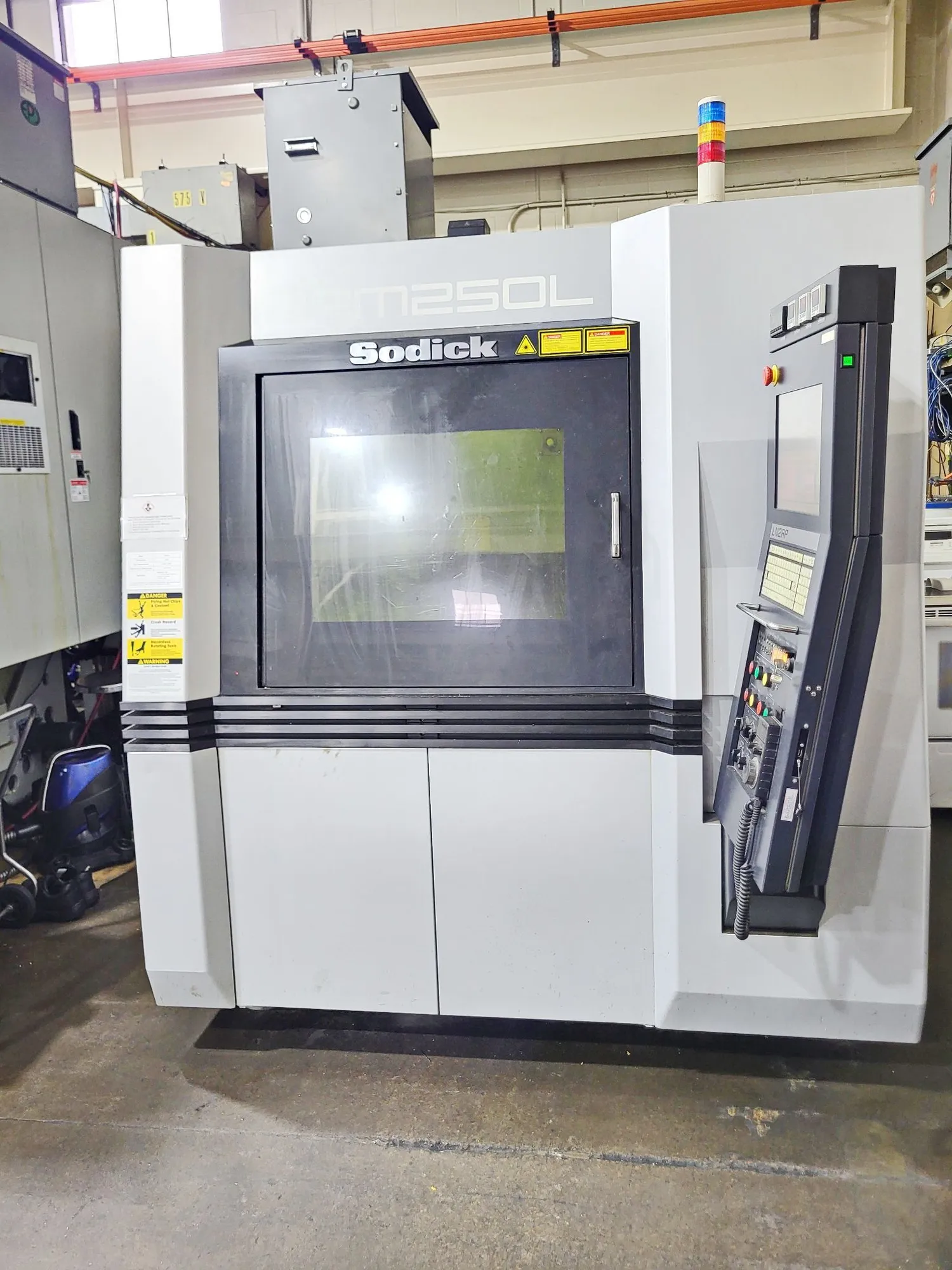

2016 Sodick OPM250L Hybrid Metal 3D Printer W/ Integrated CNC Machining, 500W YB Fiber Laser, 45000 RPM High-Speed Spindle, Laser Cooling, Automatic Tool Length Measuring, 16-Position ATC, Vacuum-Sealed Build Chamber
| Max Workpiece Weight | 220 lb | 99.8 kg |
| X-Axis | 10.24" | 260.1 mm |
| Y-Axis | 10.24" | 260.1 mm |
| U-Axis | 10.24" | 260.1 mm |
| Z-Azis (Spindle) | 3.94" | 100.08 mm |
| Laser Type | Yb Fiber Laser | Yb Fiber Laser |
| Max Laser Output | 500 W | 500 W |
| Laser Scanning | Galvano-Head Scanning | Galvano-Head Scanning |
| Laser Wavelength | 1,070 nm | 1,070 nm |
| Layer Thickness | 0.002" per pass | 0.002" per pass |
| Compatible Metal Powders | OPM ULTRA1, OPM SUPER STAR, OPM Stainless 316, OPM Stainless 630 | OPM ULTRA1, OPM SUPER STAR, OPM Stainless 316, OPM Stainless 630 |
| RPM | 45,000 RPM | 45,000 RPM |
| # ATC | 16 | 16 |
| Taper | HSK-E25 | HSK-E25 |
| Made In | Japan | Japan |
| Control | CNC (Sodick LN2RP) | CNC (Sodick LN2RP) |
| Dimensions | 87.8" X 73.62" X 86.61" | 87.8" X 73.62" X 86.61" |
| Weight | 9,920 lb | 9,920 lb |
Hybrid laser sintering & CNC milling system
500W YB fiber laser
Dedicated laser cooling
16-position atc
45,000 rpm high-speed spindle
Automatic tool length measuring device
Powder recovery & material reclamation
CCD alignment camera
Linear motor drive system
Vacuum-sealed build chamber
Wide-opening front access door
Powder recoating system
Powder recovery/collection unit
In-process laser and spindle compensation
Galvano laser scanning system
Exhaust/fume extraction unit
Base plate clamping system
Integrated safety light tower
