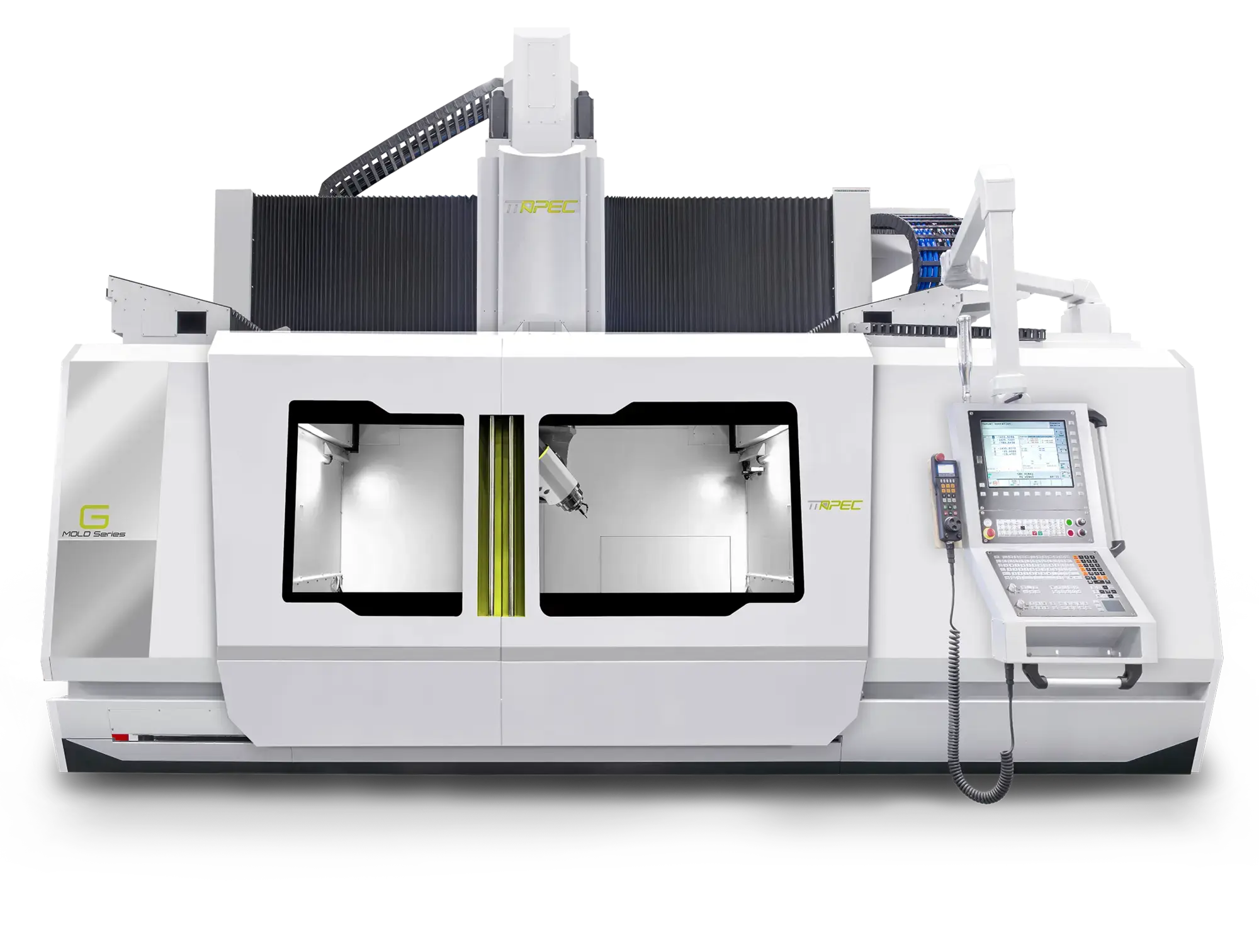

The APEC SK2540-5L 5-Axis High Speed Gantry Machining Center is designed for manufacturers who demand precision, rigidity, and speed in large-scale machining. Built with a double-column gantry structure and advanced 5-axis simultaneous machining capability, the SK2540-5L ensures exceptional stability and accuracy for complex geometries and multi-surface machining.
With a spindle speed of up to 24,000 RPM, linear motor-driven axes, and high-performance rotary tables, this machine is optimized for the aerospace, automotive, energy, and mold-making industries. Its oversized working envelope and high-load table capacity allow it to handle large, heavy workpieces while maintaining excellent dynamic accuracy. The gantry design minimizes vibration and ensures consistent precision, even under high-speed and heavy-duty cutting conditions.
The SK2540-5L is equipped with advanced automation features including an automatic tool changer (ATC), high-pressure through-spindle coolant system, and centralized lubrication, reducing downtime and maximizing productivity. With Siemens or Fanuc CNC controls available, operators benefit from intuitive programming, real-time monitoring, and high-speed processing.
This machining center provides a perfect balance of power, speed, and precision, making it a trusted solution for industries requiring superior surface finishes, tight tolerances, and maximum efficiency.
Key Features
• 5-Axis High Speed Gantry Machining for multi-surface precision and efficiency
• Spindle up to 24,000 RPM with high-torque capability
• Large working envelope designed for oversized and heavy workpieces
• Double-column gantry structure for maximum rigidity and vibration reduction
• Linear motor-driven axes for high speed and accuracy
• Automatic tool changer (ATC) for uninterrupted production
• High-pressure through-spindle coolant system for efficient chip removal and tool life extension
• Centralized lubrication system for low-maintenance operation
• Compatible with Siemens or Fanuc CNC controls with advanced programming and monitoring features
• Ideal for aerospace, automotive, mold, energy, and heavy machinery applications
Specifications
| X-Axis Travel | 4,000 mm | 157.48" |
|---|---|---|
| Y-Axis Travel | 2,500 mm | 98.425" |
| Z-Axis Travel | 1,000 mm | 39.37" |
| Spindle End to Table Distance | 50~1050 MM | 50~1050 MM |
| Table Size-X | 4,000 mm | 157.48" |
| Table Size-Y | 2,000 mm | 78.74" |
| Table Load Capacity | 8,000 kg/m2 | 8,000 kg/m2 |
| Spindle Speed | 24,000 RPM | 24,000 RPM |
| Spindle Taper | HSKA63 | HSKA63 |
| Spindle power (S1/Max) | 60/75 kW | 60/75 kW |
| Spindle torque (S1/Max) | 48.2/60.5 Nm | 48.2/60.5 Nm |
| 2-Axis Milling Head | Mono Head | Mono Head |
| Swivel/Rotation Speed | A/C = 60 RPM | A/C = 60 RPM |
| Swivel/Rotation Torque | A/C = 869/1300 Nm | A/C = 869/1300 Nm |
| Clamping Torque | A/C = 4000 Nm | A/C = 4000 Nm |
| Swivel/Rotation Angle | A= ±125, C= ±360 | A= ±125, C= ±360 |
| ATC | 30 | 30 |
| Max. Tool Length | 300 mm | 11.811" |
| Max. Tool Weight | 7 lb | 3.2 kg |
| Tool Dia w/ Adjacent Tool | 300 mm | 11.811" |
| Tool Dia w/o Adjacent Tool | 130 mm | 5.1181" |
| CN Control | Heidenhain TNC640 | Heidenhain TNC640 |
Equipped With
HEIDENHAIN TNC640 5-AXIS CNC CONTROLLER WITH HR520 MPG
AGA MONO TYPE MILLING HEAD
24,000 RPM BUILT-IN DRIVEN SPINDLE, HSK63A
SPINDLE MOTOR 60 / 75 KW, SPINDLE TORQUE 48 / 60 NM
30 TOOLS ATC MAGAZINE
X/Y-AXIS WITH LINEAR MOTOR DRIVE
Z-AXIS WITH DOUBLE BALL SCREW DIVE
X/Y/Z-AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE-WAY
COOLER FOR LINEAR MOTORS OF X/Y-AXIS
GERMANY BRAKING SYSTEM FOR LINEAR MOTOR
5-AXIS WITH HEIDENHAIN OPTICAL LINEAR / CIRCULAR SCALE
AIR-CONDITIONER FOR ELECTRICAL CABINET
SPINDLE CHILLER
OIL-AIR LUBRICATION DEVICE FOR SPINDLE
COOLANT AROUND SPINDLE
CHIP FLUSHING SYSTEM
ENLARGE COOLANT TANK
SECURITY DOOR INTERLOCKS
COUNTER BALANCE SYSTEM
WATER-PROOF WORKING LAMP
AIR DRYER
