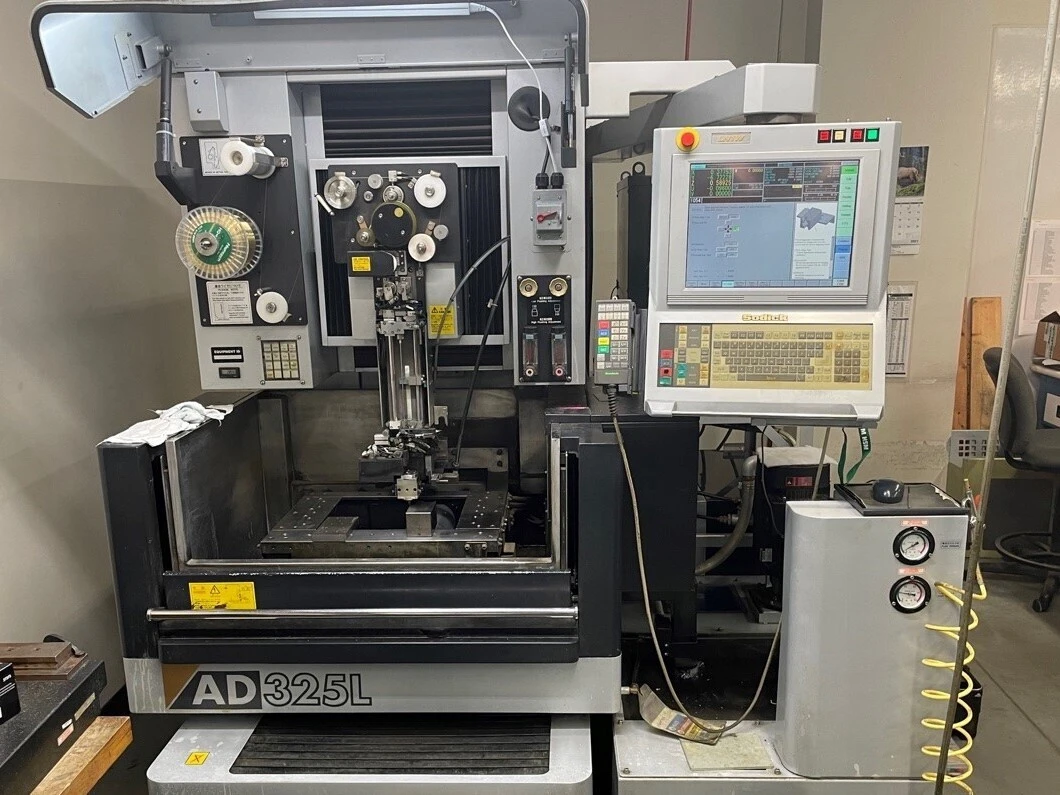

Sodick AD325L Wire EDM
- New in 2008, Less than 1 shift use.
- 4 Axes Linear Drive
- Digital PIKA Circuit Carbide Cutting Circuit
- Compact Footprint
- Super Jet AWT Type B Auto Wire Threader
- Machinability of larger workpiece
- LN Power Supply, 40 AMP
| # of Axis | 5 | 5 |
| Table Load Capacity | 1100 lb | |
| X - Axis Travel | 13.77 in | |
| Y - Axis Travel | 9.84 in | |
| Z - Axis Travel | 8.66 in | |
| U/V - Axis Travel | 3.15 in | |
| Taper Capacity | 15 deg | 15° |
| Auto Threading (Yes/No) | Yes | Yes |
| Wire Diameter - Min | 0.006 in | |
| Wire Diameter - Max | 0.012 in | |
| Dielectric Tank Capacity | 145 gal | |
| Submerged (Yes/No) | Yes | Yes |
| Transformer Included | Yes | Yes |
| Control | CNC (Sodick LN1W) | CNC (Sodick LN1W) |
| Dimensions | 83" x 86" x 84" | 83" x 86" x 84" |
| Weight | 7,495 | 7,495 |
Sodick AD325L Wire EDM
- New in 2008, Less than 1 shift use.
- 4 Axes Linear Drive
- Digital PIKA Circuit Carbide Cutting Circuit
- Compact Footprint
- Super Jet AWT Type B Auto Wire Threader
- Machinability of larger workpiece
- LN Power Supply, 40 AMP
- Transformer
