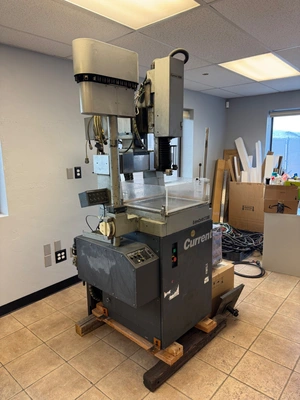

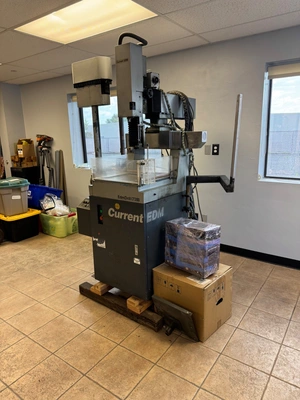

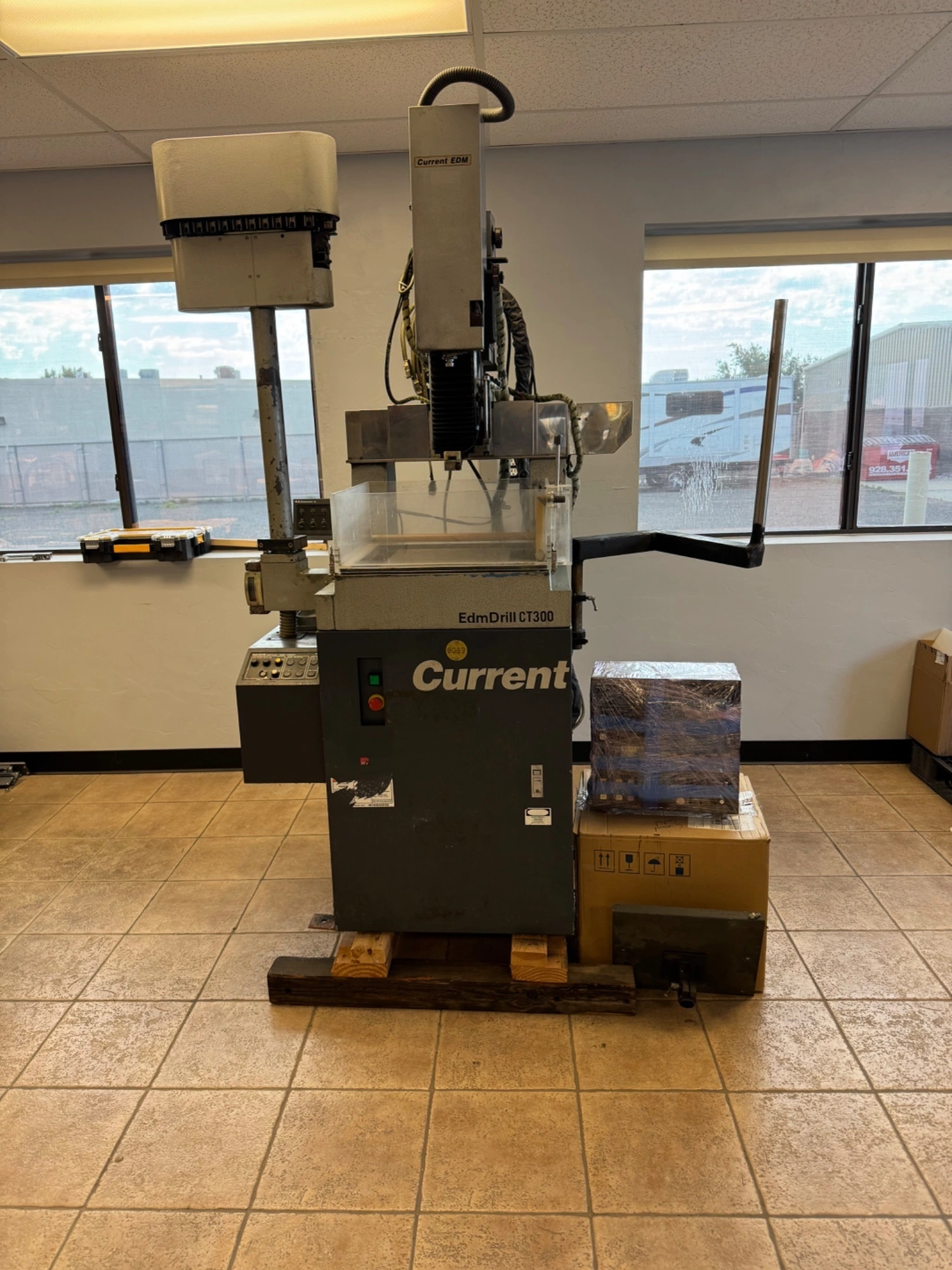

Current CT-300 CNC EDM Hole Driller with Electrode Changer
- Current CNC Control
- M.S. Condenser
- X/Y- axis travel 12"/8"
- Z-Axis travel 12"
- Guide- Axis travel 10"
| Table Dimension Length | 12 in | |
| Table Dimension Width | 12 in | |
| Table Load Capacity | 682 lb | |
| X - Axis Travel | 12" | 304.8 mm |
| Y - Axis Travel | 8" | 203.2 mm |
| Z - Axis Travel | 16" | 406.4 mm |
| Guide Axis Travel | 10 in | |
| Hole-Dia. (Min) | 0.004" | 0.1016 mm |
| Hole-Dia. (Max) | 0.256" | 6.5024 mm |
| Power Supply | 57 a | 57 A |
| Control | CNC (Current CNC) | CNC (Current CNC) |
| Dimensions | 48" x 48" x 70" | 48" x 48" x 70" |
| Weight | 2,000 | 2,000 |
- Current 3 axis CNC Control
- Electrode Changer
- FE02 Power Supply, 57 Amps
- Current SRJ III Option Power Supply
- M.S. Condenser N5
- Precision lapped granite worktable with stainless steel inserts
- Rugged, single-cast bridge design for stability and accuracy
