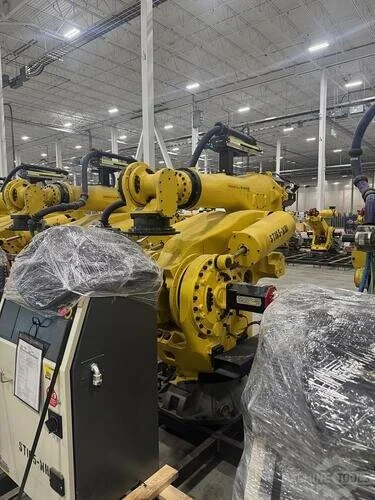

NEW 2022 FANUC M-900IB/700

FANUC M-900iB/700 Robot, R-30iB Plus Control, Never Used

This new, never-used FANUC M-900iB/700 (2022) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller and 6-axis configuration.

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

1-NEVER USED FANUC M900iB/700 6 AXIS ROBOT WITH FANUC R-30iB PLUS CONTROLLER

DATE OF MFG. 2022

USED UNITS WITH R-30iB CONTROLLERS ARE ALSO AVAILABLE

This 6 axis model is a big lifter that also benefits from a generous work envelope. Capable of handing up to 700 kg, it is perfectly cut out for the kind of heavy [loading, unloading and tending applications](https://www.fanucamerica.com/solutions/applications/machine-tending-robots) found in the metal, [automotive](https://www.fanucamerica.com/solutions/industries/automotive-robots) and construction industries. Its inherent rigidity also makes it ideally suited to constant force applications.

Robot Specifications

Axes: 6

Payload: 700kg

H-Reach: 2832mm

Repeatability: ± 0.1 mm

Structure: Articulated

Mounting: Floor

Motion range (°)

Axis J1: 360°

Axis J2: 154°

Axis J3: 160°

Axis J4: 720°

Axis J5: 244°

Axis J6: 720°

Maximum speed (°/s)

Axis J1: 80°/s

Axis J2: 80°/s

Axis J3: 80°/s

Axis J4: 100°/s

Axis J5: 100°/s

Axis J6: 160°/s
