CNC Horizontal Machining Center
| X | 22" | 558.8 mm |
| Y | 25.2" | 640.08 mm |
| Z | 26" | 660.4 mm |
| Power | 40.2 hp | 30 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
Request a Quote
Add to Cart
Pallet Size (Millimeters): 400
Pallet Size: 15.75" x 15.75"
X-Axis Travel: 22"
Y-Axis Travel: 25.2"
Z-Axis Travel: 26"

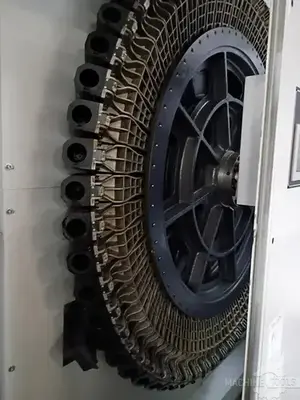

Tool Magazine Capacity: 60 ATC
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40 Big Plus
Control: Fanuc 31i-B
Coolant: 1000 PSI High Pressure Thru Spindle Coolant
Pallet Indexing: Full 4th Axis
Probes
