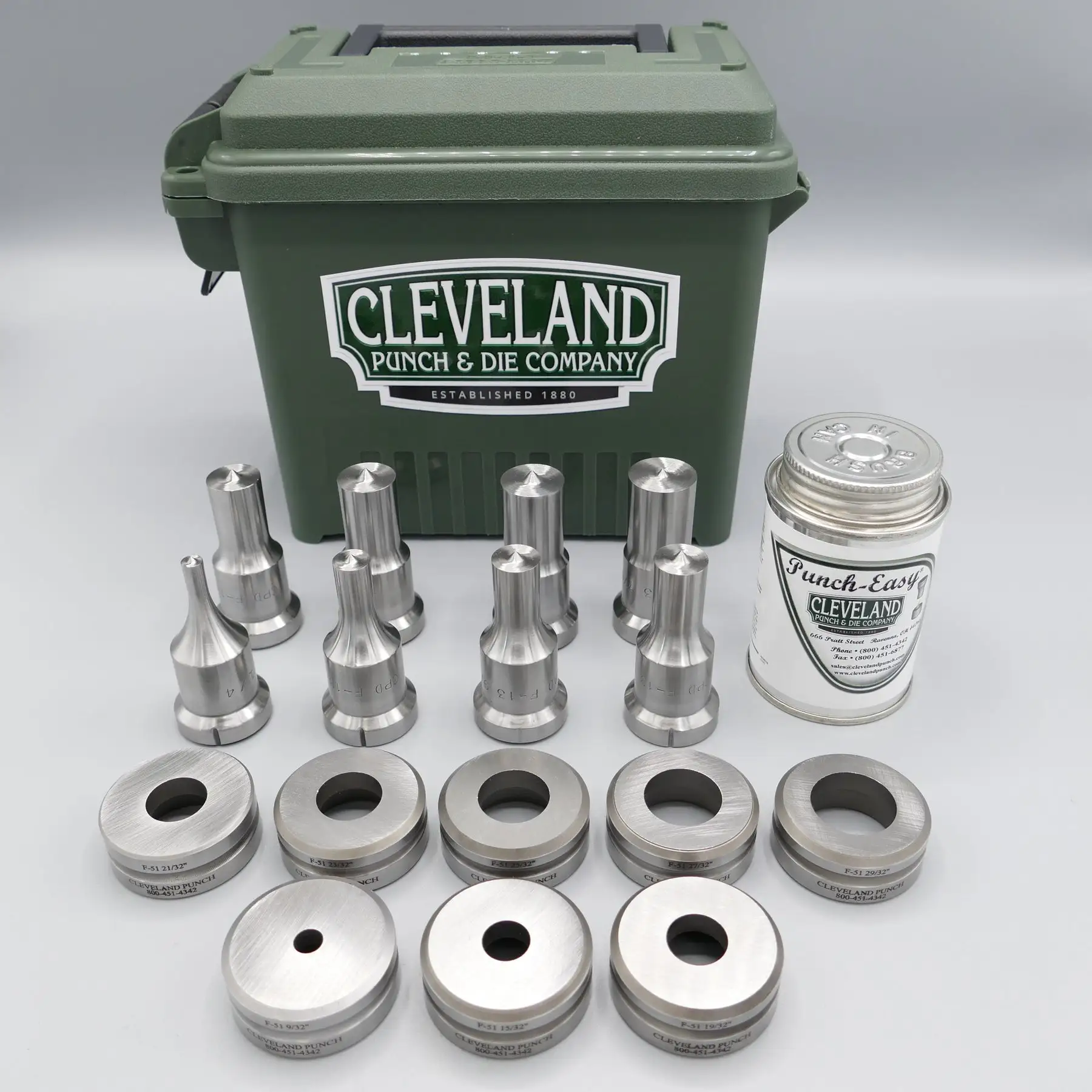

NEW CLEVELAND PUNCH & DIE CPDS0123

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 8 F13 Round Punches, 8 F51 Round Dies, Half Pint of Punch-Easy®, and Toolbox.

Additional Information

Punch & Die Sizes Include:

F13 Punch
1/4", 7/16", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8"

F51 Die
9/32", 15/32", 19/32", 21/32", 23/32", 25/32", 27/32", 29/32"

F13 Punch Dimensions: Head Diameter: 1.180" Body Diameter: 0.940" Overall Length: 2.375"
F51 Die Dimensions: Outside Diameter: 1.650" Height: 0.650"
Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note: Material thickness should not exceed punch size.
Cross Reference:

F13 Punch
AP-1192, CST-NKP, GFM-161

F51 Die
AP-352, CST-NKD, GFM-166

Proudly Made in the USA
