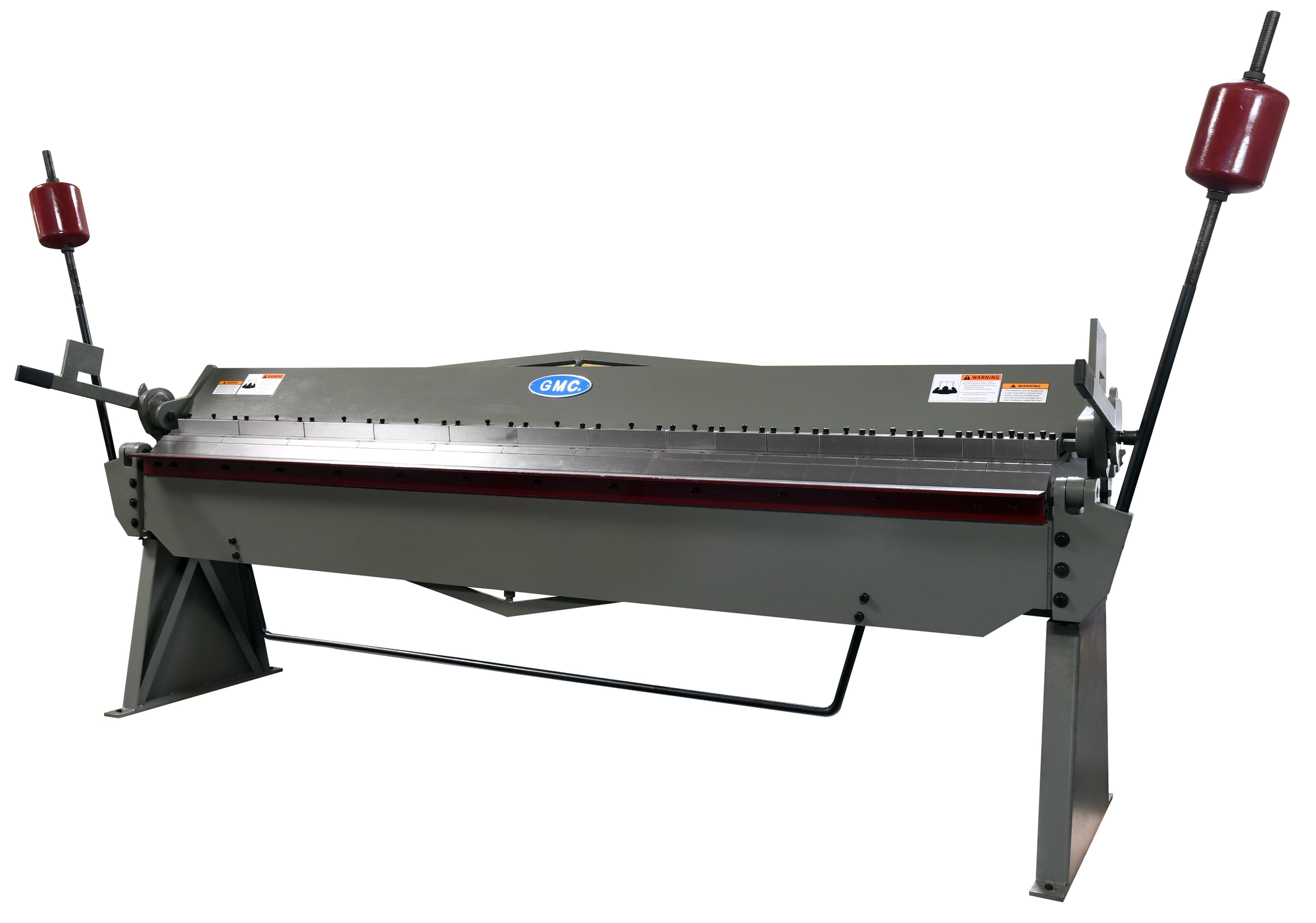

NEW GMC BB-812-6HD

Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

One Year Parts Only Warranty
ISO 9002 certified
1-9/16” adjustable beam opening
1” beam adjustment (front and back)
Capable of hemming light gauge material of 26 gauge or thinner
Capable of straight bending material fully across
Oilable bearings to maintain precision overtime
Adjustable stop gauge is included to allow the operator to perform repeat bends
16 Total fingers assortment:
2.5”/1pc, 3”/1pc, 3.5”/1pc, 2”/2pcs, 5”/3pcs, 6”/4pcs, 12”/4pcs
2 - Adjustable counterweights to assist you at max capacity bends
All steel heavy body construction with extra heavy tie rod for minimum deflection
Some assembly is required

Bending capacity in mild steel: 12 Ga.
Bending capacity in stainless steel: 16 Ga.
Max. hemming thickness for mild steel: 26 Ga.
Max. box depth: 6"
Bending length capacity: 8'
Bending angle, degree: 0-135
Beam adjustment, front and back: 1"
Minimum reserve bend: 1/2"
Manual clamping: Standard
Beam opening: 1-9/16"
Net weight: 2,850 lbs.
Shipping weight: 3,050 lbs.
Machine dimensions: 139" x 32" x 77"
Shipping dimensions: 118” x 30” x 40”
