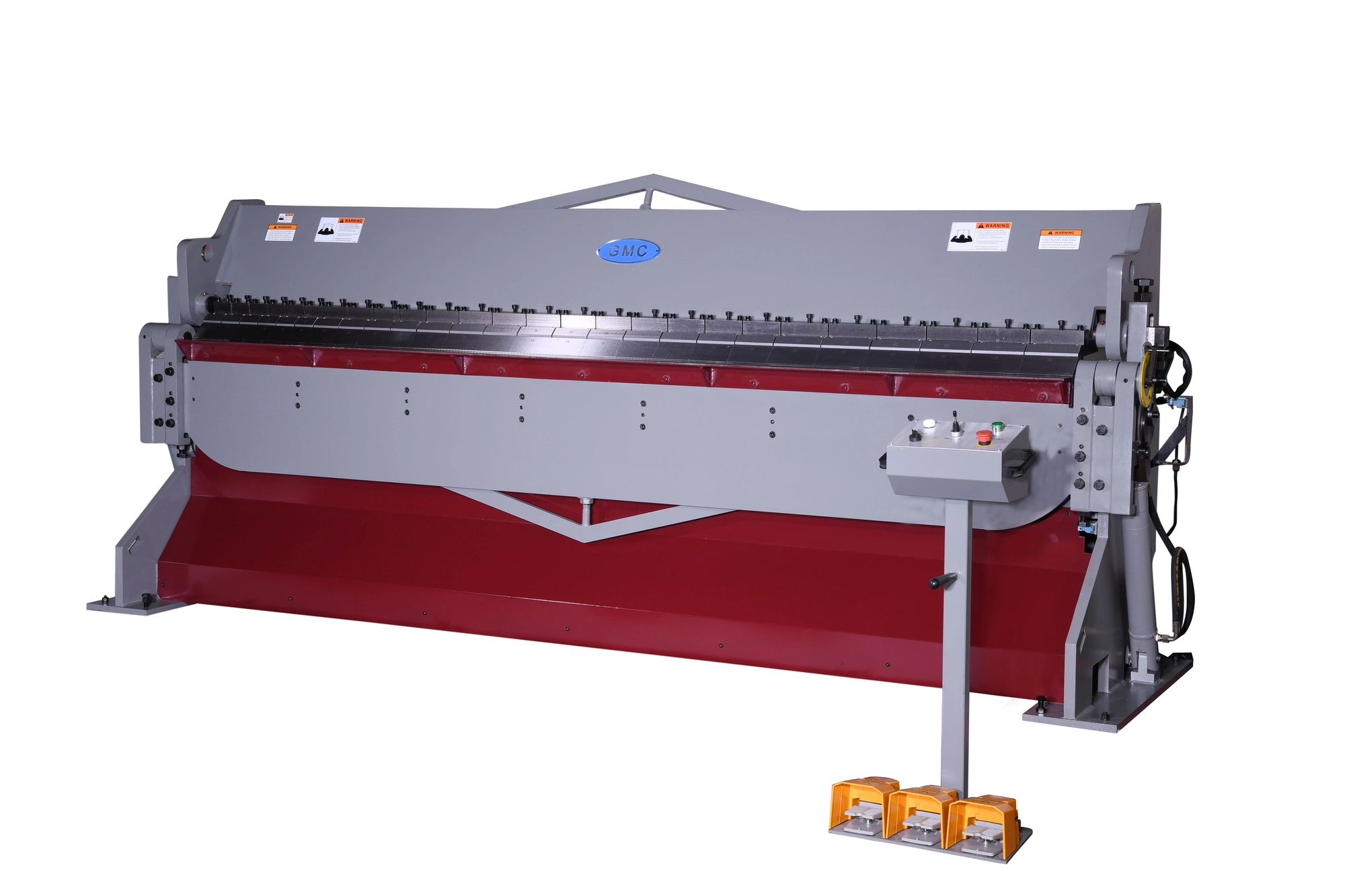

12' x 14 Ga. Hydraulic Box and Pan Brake

Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts

Max bending length: 12'
Capacity mild steel: :14Ga.
Stainless steel: 16Ga.
Bend degree: 135
Max. box & pan depth: 6"
Large beam opening: 3"
Oil tank gal.: 32 Gal
Hydraulic oil recomended: Shell #68 or equivalent
Main motor: 10 HP 3 Phase , Prewired: 220VAC 35A, Optional: 440VAC 20A
Machine weight: 8,950 lbs.
Shipping weight: 9,150 lbs.
Overall dimensions: (LxWxH): 166" x 46" x 66"
Shipping dimensions: 179" x 41" x 67"
