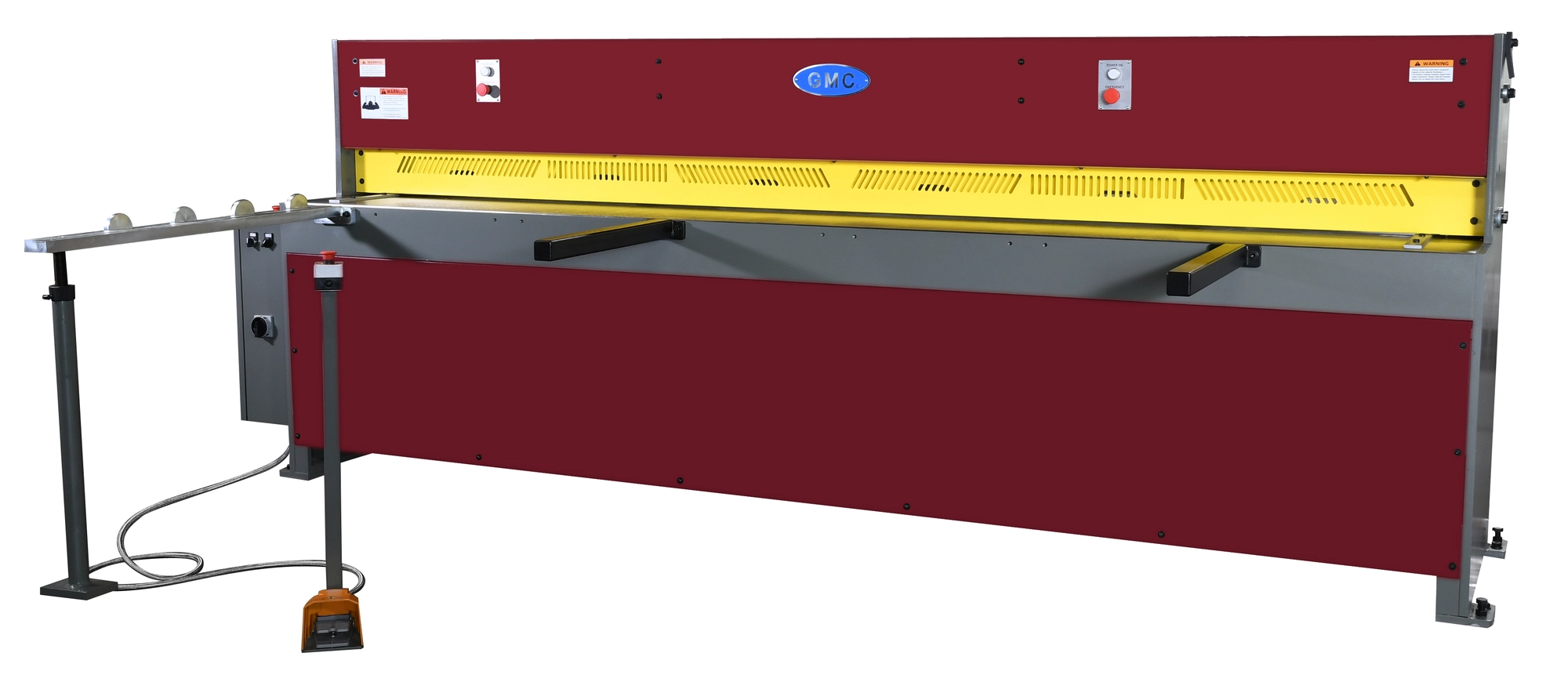

Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 26 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
Cutting capacity mild steel: 10' x 14Ga.
Stainless steel: 10' x 18Ga.
Blade lenght: 10'1"
Strokes per minute: 26
Worktable height: 30-1/2"
Front support arm: 24"
Back gauge: 26" Manual Back gauge
Blade rake angle: 2.0 Degree
Main motor: 7 1/2 HP, 220V/25A - 440V/15A, 3 Phase
Machine weight: 7,280 LBS
Machine dimensions: 147" x 57" x 53"
