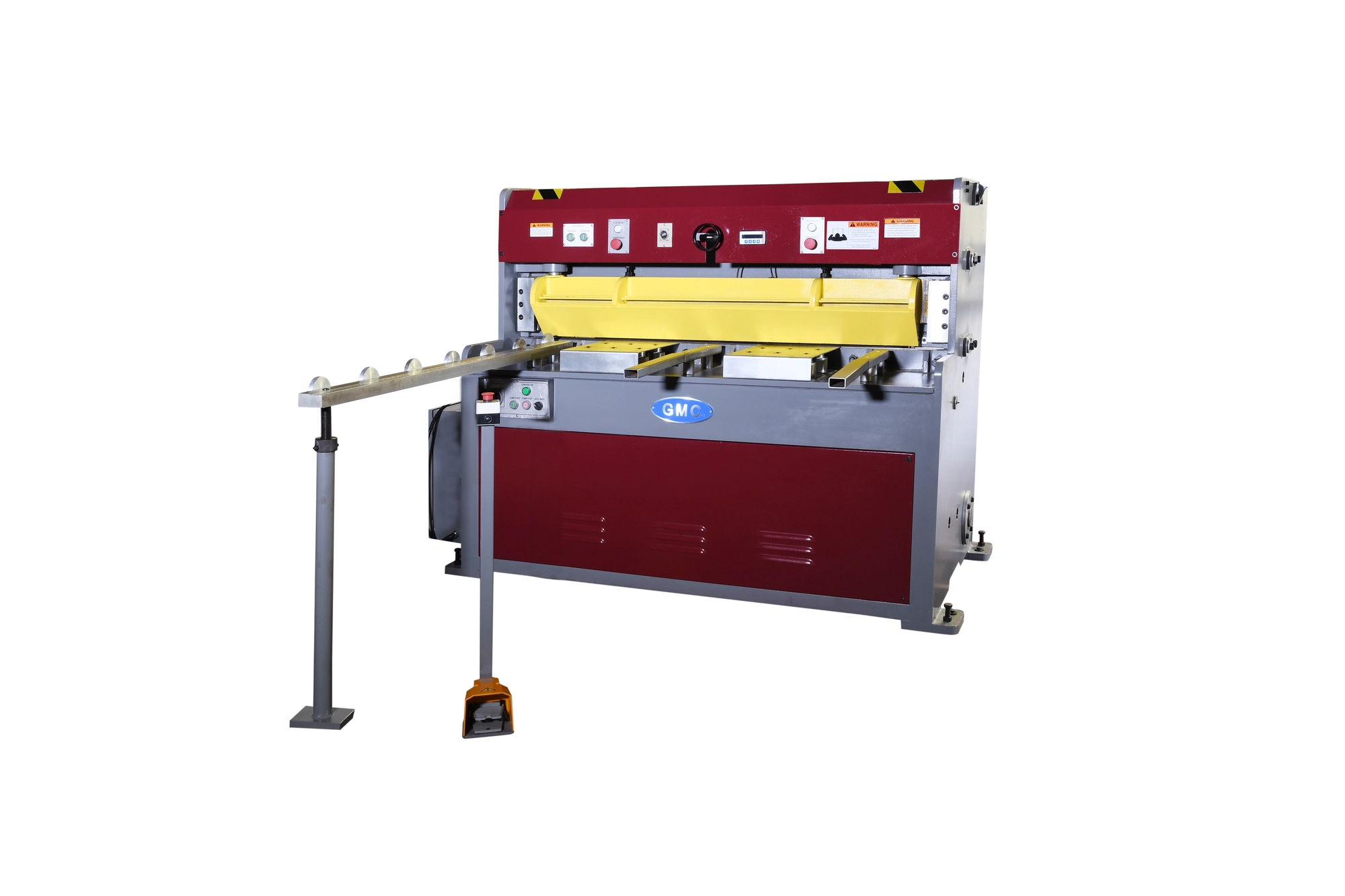

NEW 2024 GMC HS-0410E

ISO 9001 Certification: Ensuring exceptional quality, the HS-0425E is certified to meet the internationally recognized ISO 9001 standard, guaranteeing top-notch performance and reliability.

2. Premium Taiwan Manufacturing: Manufactured in Taiwan, known for its excellence in machinery production, the HS-0425E embodies precision craftsmanship and superior engineering.

3. German SIKO Front Operated Power Back Gauge: Experience precise cutting with the 24" German SIKO front-operated power back gauge, featuring micro-adjustment of 0.004" and an inch/mm digital display for accurate measurements.

4. Quick Change Blade Gap Adjustment (BGA): The HS-0425E offers a convenient Quick Change Blade Gap Adjustment system with a gap dial, allowing for effortless and precise adjustments to achieve optimal cutting performance.

5. CE Standard "OMERO" Electric Control System: Designed with the CE standard "OMERO" electric control system, the HS-0425E ensures reliable and efficient operation, complying with European safety standards.

6. OSHA Safety Standard Code Compliance: The HS-0425E meets the safety requirements set by OSHA (Occupational Safety and Health Administration), prioritizing operator safety during operation.

7. Shadow Line for Accurate Straight Cutting: Equipped with a shadow line feature, the HS-0425E provides a visual guide for precise and straight cutting, enhancing cutting accuracy.

8. Adjustable Cutting Length and Stroke: Tailor the cutting length and stroke to meet your specific requirements, allowing versatility and customization for various projects.

9. Ball Transfer Plates on Worktable: The inclusion of ball transfer plates on the worktable enables easy loading of workpieces, facilitating smooth and efficient workflow.

10. Well Balanced and Sturdy All Steel Machine Frame: The HS-0425E features a well-balanced and robust all steel machine frame, providing stability, durability, and reliable performance.

11. German-Made Hydraulic Logic System: The German-made hydraulic logic system, centrally located and designed for quiet operation, ensures optimal performance and efficiency.

12. Hydraulic Hold-Downs with Anti-Mar Neoprene: The hydraulic hold-downs, equipped with anti-mar neoprene, secure the material during cutting, preventing slippage and ensuring precise cuts.

13. High-Grade Carbon/Chrome Alloy Steel Shear Blades: The shear blades of the HS-0425E are constructed with high-grade carbon/chrome alloy steel and hardened to 60 HRC, providing exceptional durability and extended blade life. The upper and bottom blades are both 2-edge indexable, maximizing usability and efficiency.

14. Full-Length Viewable Safety Finger Guard: Prioritizing operator safety, the HS-0425E is equipped with a full-length viewable safety finger guard, offering comprehensive protection from cutting hazards.

15. Removable Safety Foot Pedal: The removable safety foot pedal provides convenience and safety, automatically raising the blade when the operator removes their foot from the pedal.

16. Hydraulic and Electrical Overload Protection: The HS-0425E is equipped with hydraulic and electrical overload protection systems, safeguarding the machine and ensuring reliable and safe operation.

17. Compact Operator Control Panel: The compact operator control panel offers intuitive and easy-to-use controls, enhancing user-friendliness and efficiency.

18. Overload Protected Motors and Low Voltage Control System: All motors are equipped with overload protection, and the machine features a low voltage control system, ensuring optimal performance and safety.

19. Jog or Continuous Auto Cycle Cutting Operation Modes: Enjoy flexibility with jog or continuous auto cycle cutting operation modes, accommodating different cutting requirements and preferences.

20. One-Year Industrial Warranty for Parts: The HS-0425E comes with a one-year industrial warranty for parts, providing peace of mind and reflecting the machine's durability and reliability in demanding industrial settings.

Elevate your metal cutting capabilities with the HS-0425E Heavy-Duty Hydraulic Shears, equipped with advanced features and built to deliver exceptional performance, accuracy, and durability.
Powered B.G. Motor 3/4 HP | 220v/440v | 3 Phase
