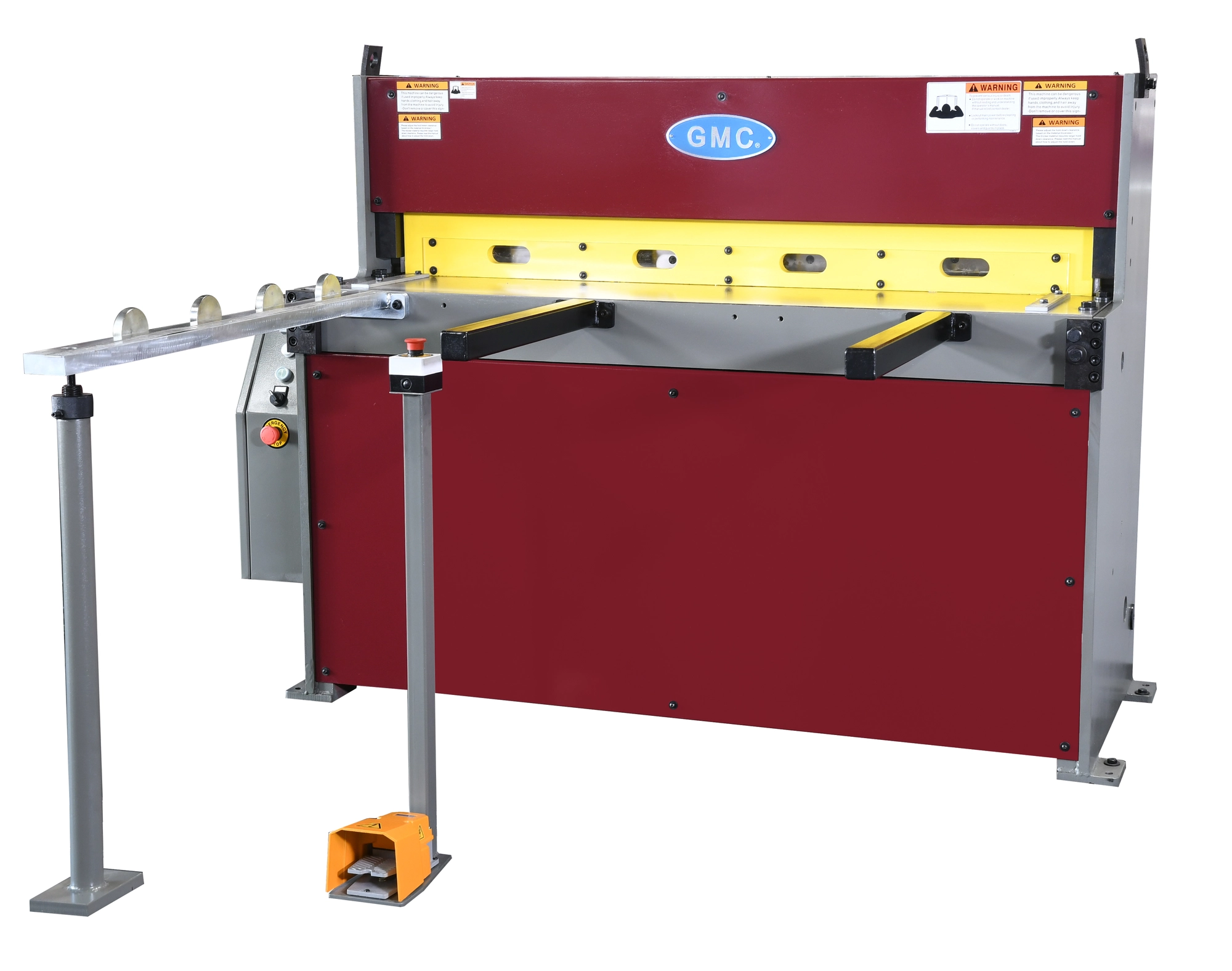

NEW 2024 GMC HS-0410MD
Overview
Taiwan machines
ISO 9001 certified
HD all steel construction for maximum rigidity
German logic quiet Rexroth hydraulic system
Adjustable stroke from 16-20 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
Specs
Cutting capacity mild steel stainless steel minimum capacity: 4' x 10Ga. 4' x 14Ga. 24 Ga.
Blade length: 52"
Strokes per minute adjustable: 16-20
Throat depth: 16"
Worktable height: 30 1/2"
Front support arm: 24"
Back gauge: 26"
Blade rake angle: 1.5 Degree
Oil tank capacity: 10 Gal
Main motor: 5 1/2 HP Prewired: 220/3-Phase Optional: 440V 3-Phase
Machine weight: 3,050 lbs.
Machine dimensions: 68" x 35" x 52"
