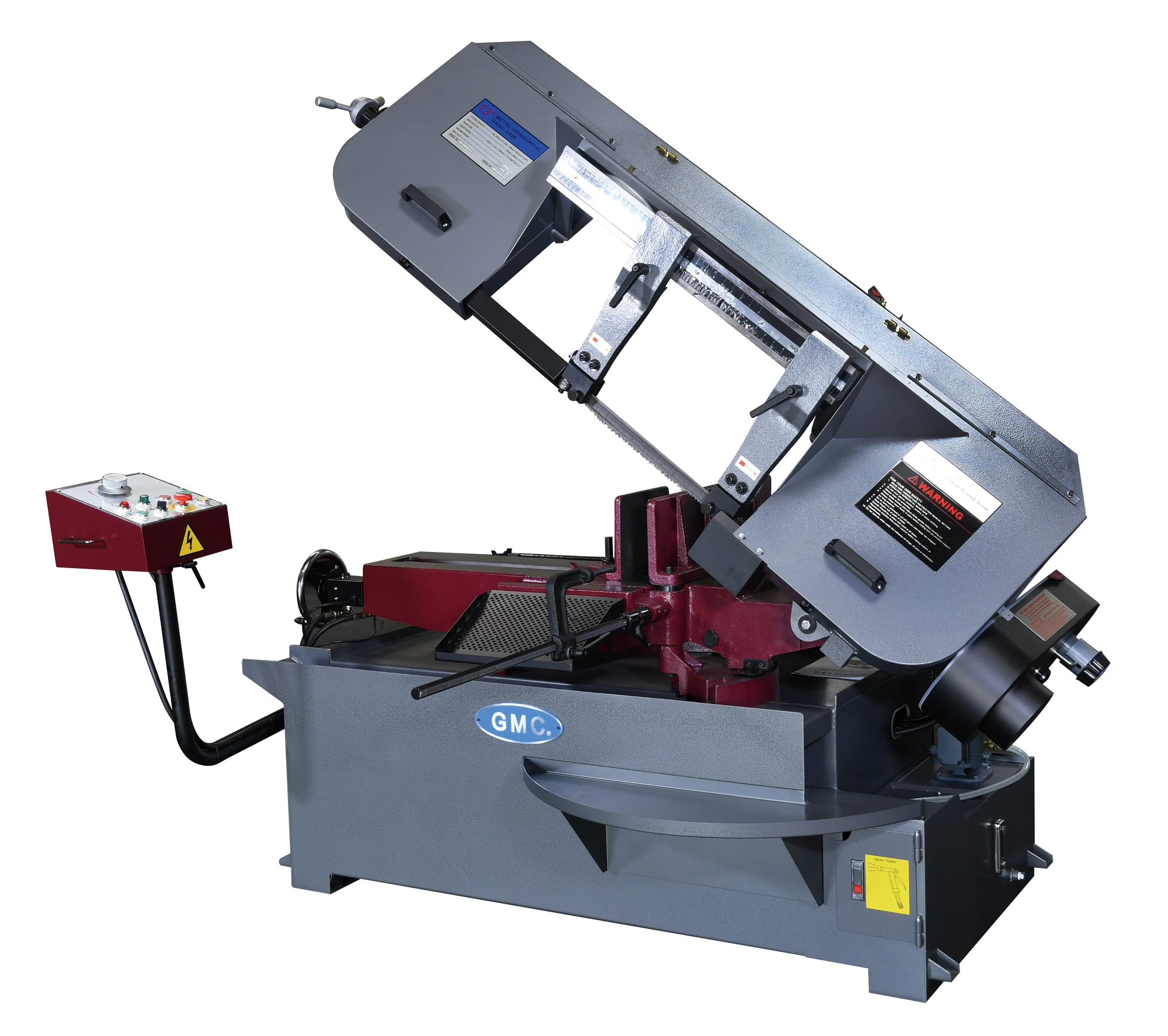

NEW GMC 13" X 18" METAL CUTTING BAND SAW, SEMI AUTOMATIC
Overview
13”x18” capacity, semi-automatic, variable speeds, 3HP. Features a hydraulic vise, power downfeed, and bow automatic return.
Taiwan Saw, ISO 9001 certified
With a hydraulic vise, power downfeed, and bow automatic return
Max. capacity of 13” OD and 13”x18” rectangular
1-1/4” blade, large size for greater accuracy and speed
Variable blade speeds from 66 to 264 FPM with a dial to set up speeds
Gear-driven transmission makes the machine more reliable & rigid
Saw head miters from 0- 45°
Hydraulic clamps the vise, lowers the head, then automatically raises the head back up after the cut is done
Cast iron mitering head and bow without vibrations
Tungsten carbide roller blade guides make a clean, high-quality cut.
Laser pointer guide lets you see where the cut will be for more accurate cut.
Patented blade tensioning gauge makes it simple to get the tension right.
Power source: 220V 3 phase
One year industrial warranty for parts
Specs
Cutting capacity round @ 90° round @45° rectangular @ 90° rectangular @ 45° square @ 90° square @ 45°: 13" 8.86" " 13" x 18.9" 11" x 10" 13" 8.86"
Saw blade size: 1-1/4” x 0.043x 161.4”
Blade speeds: 66 - 264 FPM variable
Power down feed rate: Variable
Miter cut degree: 0-45°
Blade drive motor: 3 HP, 220V, 3 phase
Machine weight: 1,850 LBS
Machine dimensions l x w x h: 90”x38”x60”
