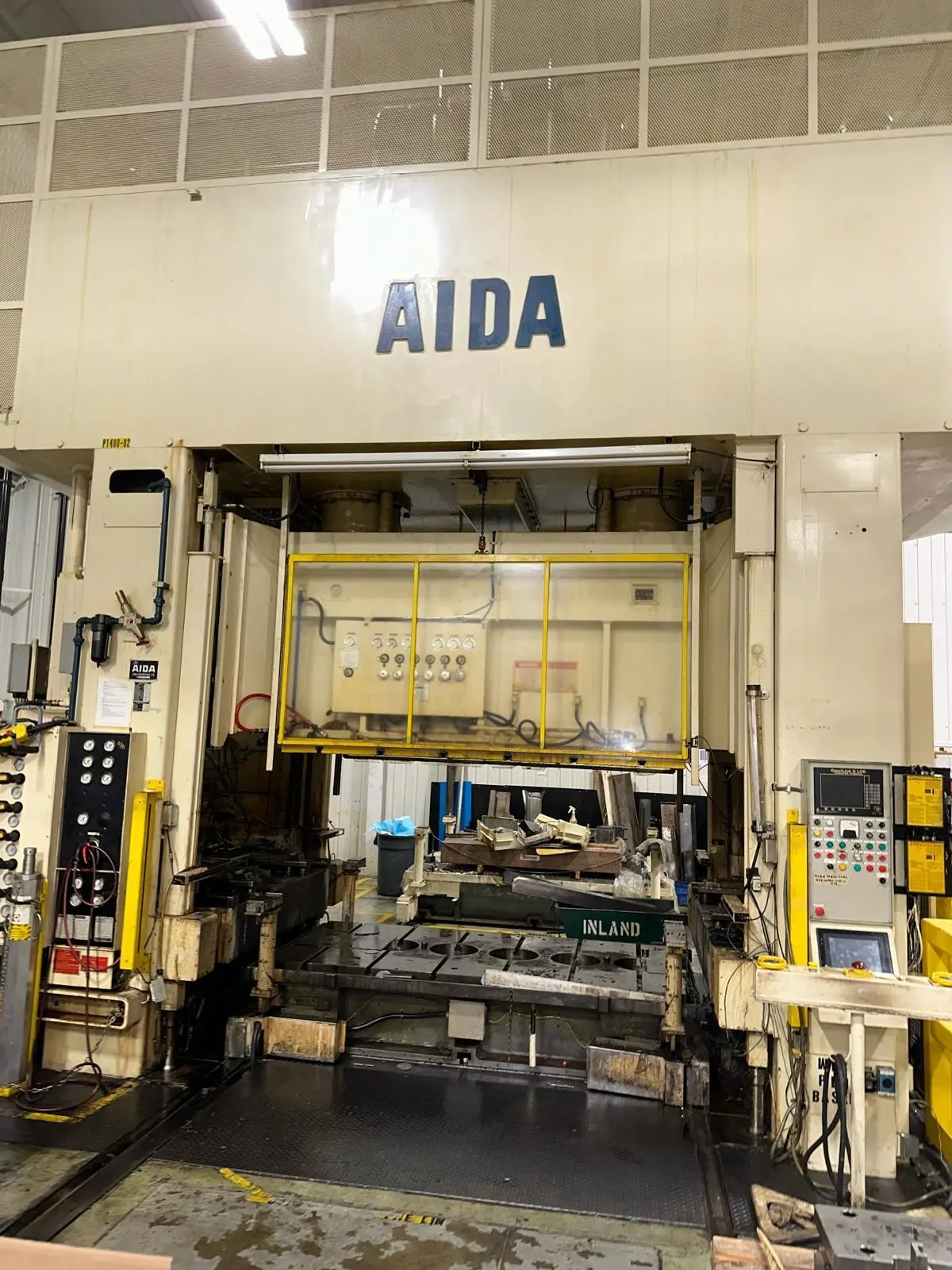

Model: TMX-L2-400-250-120
Capacity: 400 Ton (Metric)
Bolster/Slide: 98.4" x 47.2"
Stroke: 18.11"
SPM 15 ~ 30
Die Height: 29.5"
Adjustment: 2.75"
Height: 265"
Weight: 210.000 lbs
| Type of Press | Mechanical | Mechanical |
| Tonnage | 450 T | 408.234 t |
| Bolster (LR) | 98.4" | 2,499.4 mm |
| Bolster (FB) | 47.2" | 1,198.9 mm |
| Stroke | 18.11" | 459.99 mm |
| Shut Height | 29.5" | 749.3 mm |
| Min SPM | 5 strokes/min. | 5 strokes/min. |
| Max SPM | 30 spm | 30 strokes/min. |
| Vari Speed (Yes/No) | Yes | Yes |
| Ram (FB) | 47.2" | 1,198.9 mm |
| Ram (LR) | 98.4" | 2,499.4 mm |
| Slide Adjustment | 2.75" | 69.85 mm |
| Dimensions | 265" height | 265" height |
| Weight | 210,000 lbs | 210,000 lbs |
Model: TMX-L2-400-250-120
Capacity: 400 Ton (Metric)
Bolster/Slide: 98.4" x 47.2"
Stroke: 18.11"
SPM 15 ~ 30
Die Height: 29.5"
Adjustment: 2.75"
Height: 265"
Weight: 210.000 lbs
