USED YASKAWA ES165D
Overview

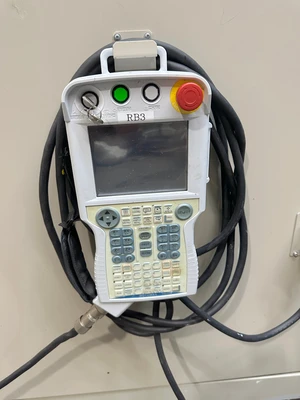

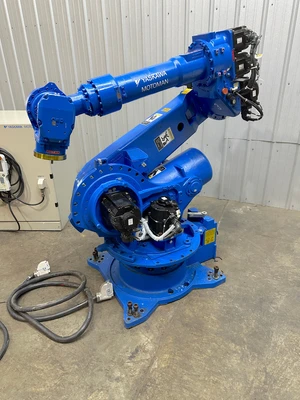

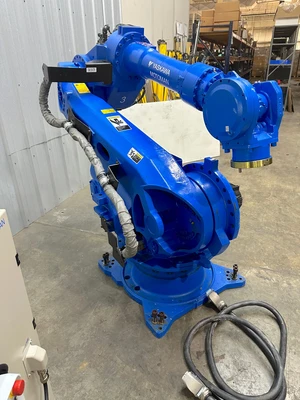

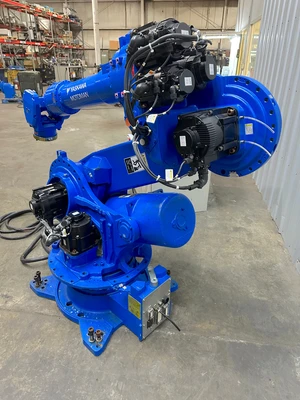

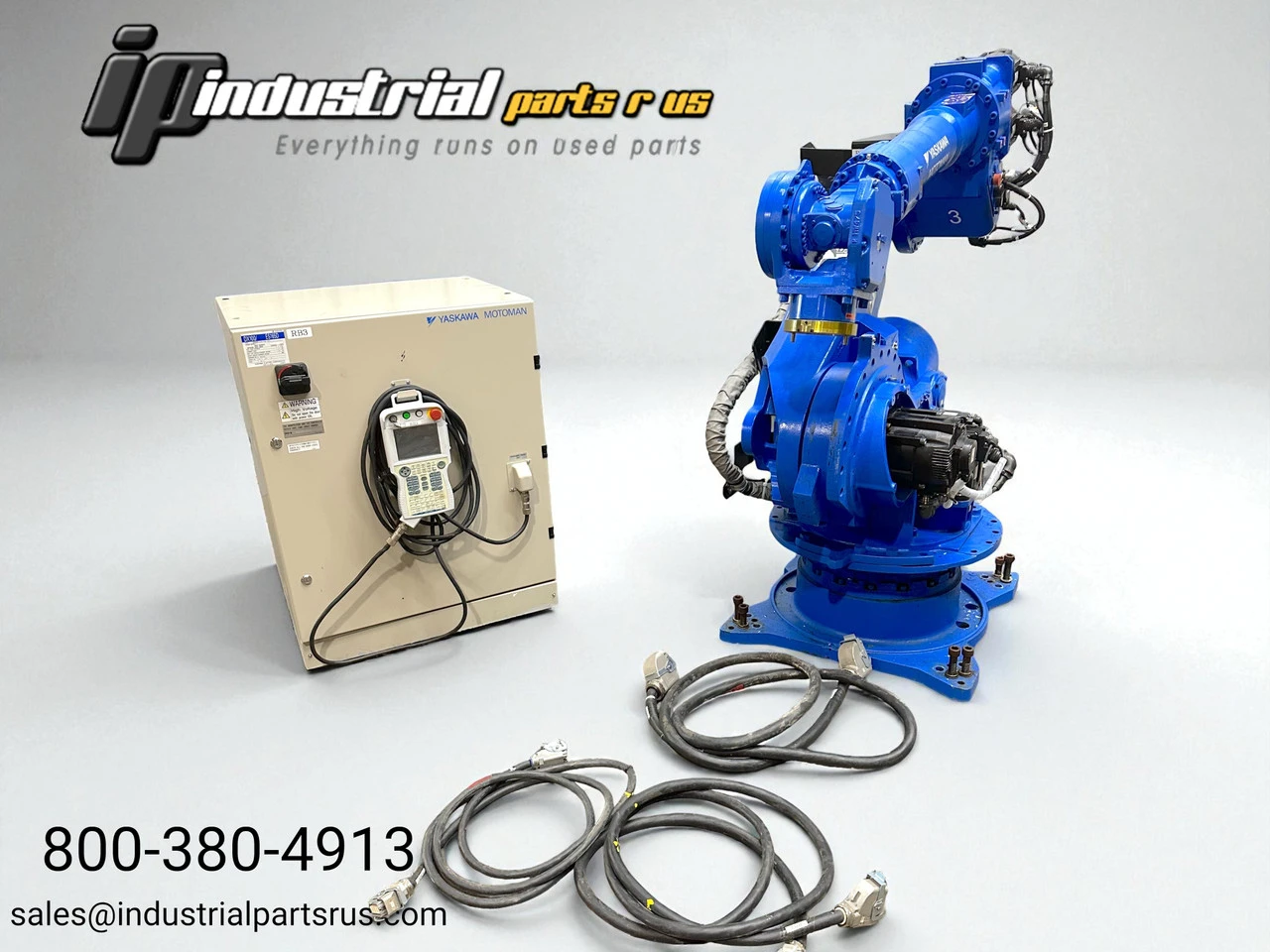

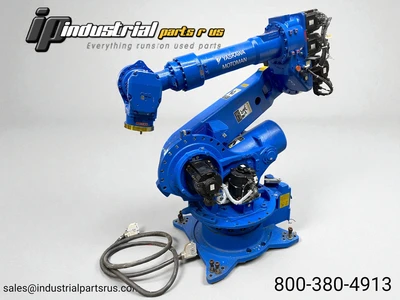

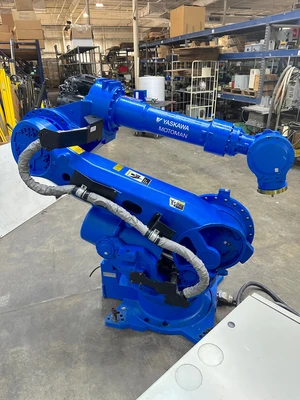

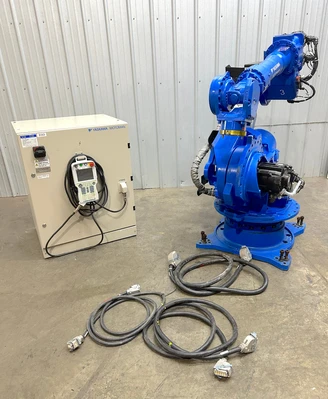

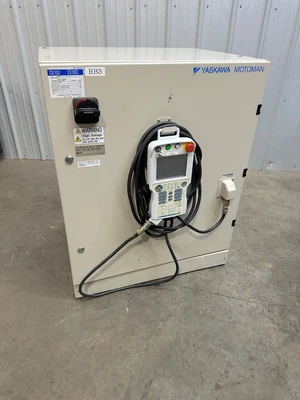

2012 Yaskawa Motoman ES165D Robot with DX100 Control, Teach Pendant, & All Cables.
This is a High Payload Industrial Robot with a 165Kg (363 Lbs) Payload Capacity and a Reach of 2651mm.
These 6 axis robots are perfect for Material Handling, Palletizing, Pick & Place Operations, Machine Tending, Welding, 6 Axis CNC Routing, and Much More.
This system has been powered and tested in excellent operating condition with 11,353 moving hours.
We have 4 of these in stock. They were run at slow speeds their entire life with light weight end of arm tooling. They were picking up plastic componets weighing less than 1 lb. Now is the time to start using automation for repeditive tasks. Robots will work 24 hours a day, 7 days a week without asking for a break, a vacation, or a raise.
Be sure to check out all our other Robot Inventory!!!
Specifications
Axes 6
Payload: 165 KG (363.76 lbs)
Reach: 2651 MM (104.37 in)
Repeatability: ±0.2mm (.007 in)
Robot Mass: 1100 KG (2,425 lbs)
Structure: Verticial Joint Arm
Robot Motion Speed
S-Axis 110 °/s (1.91 rad/s)
L-Axis 110 °/s (1.91 rad/s)
U-Axis 110 °/s (1.91 rad/s)
R-Axis 175 °/s (3.05 rad/s)
B-Axis 150 °/s (2.61 rad/s)
T-Axis 240 °/s (4.18 rad/s)
Robot Motion Range
S-Axis - -180° to +180°
L-Axis - -60° to +76°
U-Axis - -142.5° to +230°
R-Axis - -360° to +360°
B-Axis - -130° to +130°
R-Axis - -360° to +360°
Specs
SKU: IP15261
UPC: 721814239393
Condition: Used
Availability: In Stock
Weight: 140.00 LBS
Width: 30.00
(in)
Height: 30.00
(in)
Depth: 30.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814239393
Robotics Controls Type: Arm
Country/Region of Manufacture: Japan
Payload: 165 Kg
Manufacturer: Yaskawa

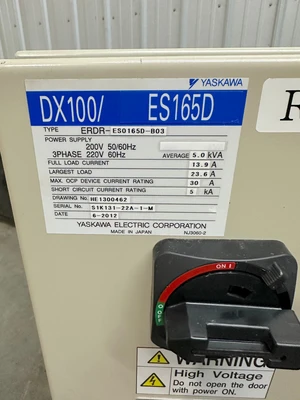

Controller Platform: DX100
Model: ES165D
MPN: ES165D
Voltage: 460Vac 3 Phase
Type: Robotic Arm Assembly
