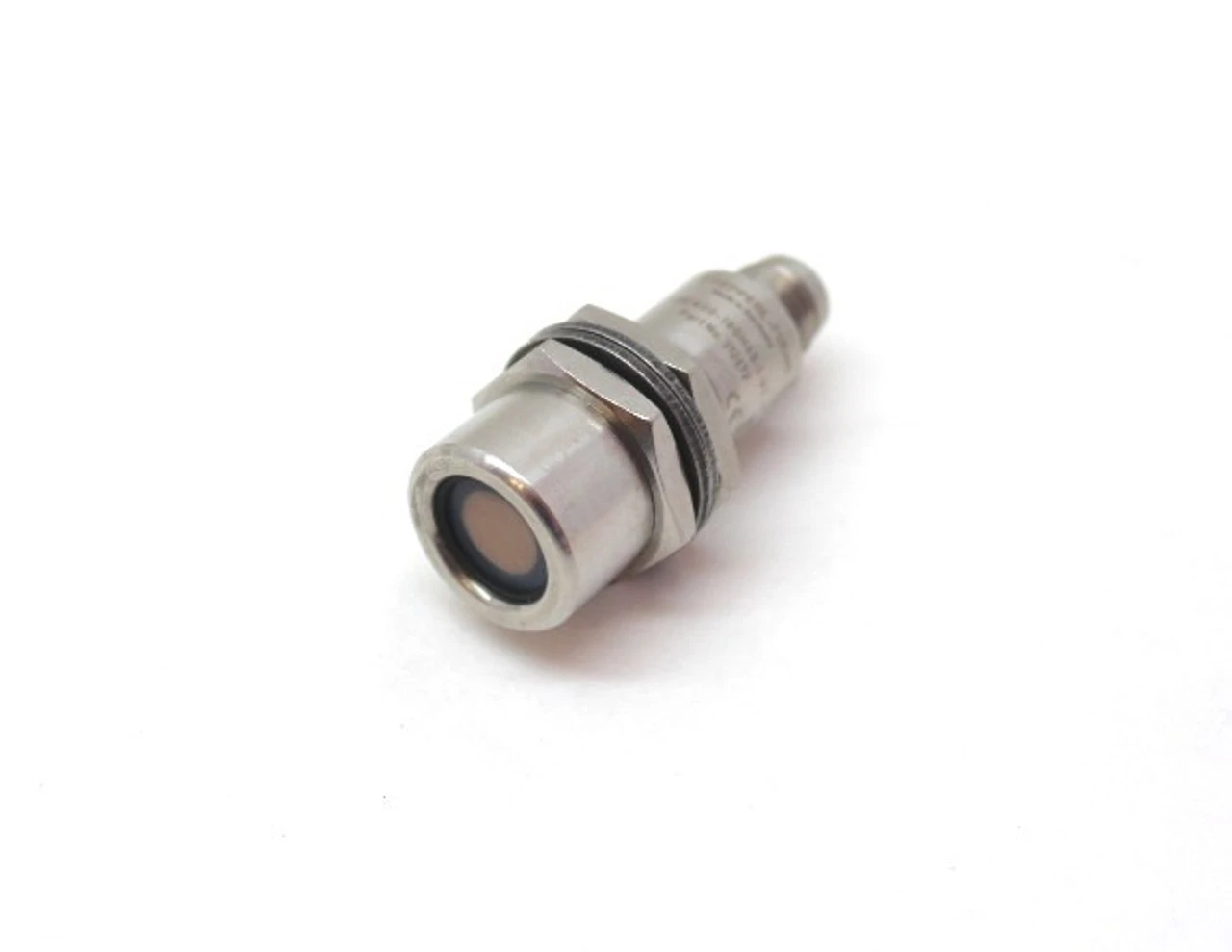

USED PEPPERL-FUCHS UBC400-18GH40-I-V1

Pepperl+Fuchs UBC400-18GH40-I-V1 Ultrasonic Sensor 212672
Manufacturer : Pepperl+Fuchs
UBC400-18GH40-I-V1
Ultrasonic sensor UBC400-18GH40-I-V1
Short design, 40 mm
Analog output 4 mA ... 20 mA
Measuring window adjustable
Program input
Temperature compensation
Single head system
Sensing range : 40 ... 400 mm
Adjustment range : 50 ... 400 mm
Dead band : 0 ... 40 mm
Standard target plate : 100 mm x 100 mm
Transducer frequency : approx. 255 kHz
Response delay : approx. 100 ms
Electrical specifications
Operating voltage : 10 ... 30 V DC , ripple 10 %SS
No-load supply current : ≤ 20 mA
Input
Input type : 1 program input
lower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB
input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s
Output
Output type : 1 analog output 4 ... 20 mA, short-circuit/overload protected
Resolution : 0.4 mm at max. sensing range
Deviation of the characteristic curve : ± 1 % of full-scale value
Repeat accuracy : ± 0.5 % of full-scale value
Load impedance : 0 ... 300 Ohm
Temperature influence : ± 1.5 % of full-scale value
Approvals and certificates
UL approval : cULus Listed, General Purpose
CSA approval : cCSAus Listed, General Purpose
CCC approval : CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature : 0 ... 70 °C (32 ... 158 °F)
Storage temperature : -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type : Connector M12 x 1 , 4-pin
Degree of protection : IP67
Material
Housing : Stainless steel 1.4435 / AISI 316L
O-ring for cover seal: Viton
Transducer : PTFE
Mass : 25 g
Shipping Weight : 1.5 Kg

SKU: IP04147
UPC: 646412784697
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Model: UBC400-18GH40-I-V1
Shelf: Q-9
Manufacturer: Pepperl-Fuchs
Country/Region of Manufacture: Germany
Sensor Type: Solid State
GTIN: 646412784697
