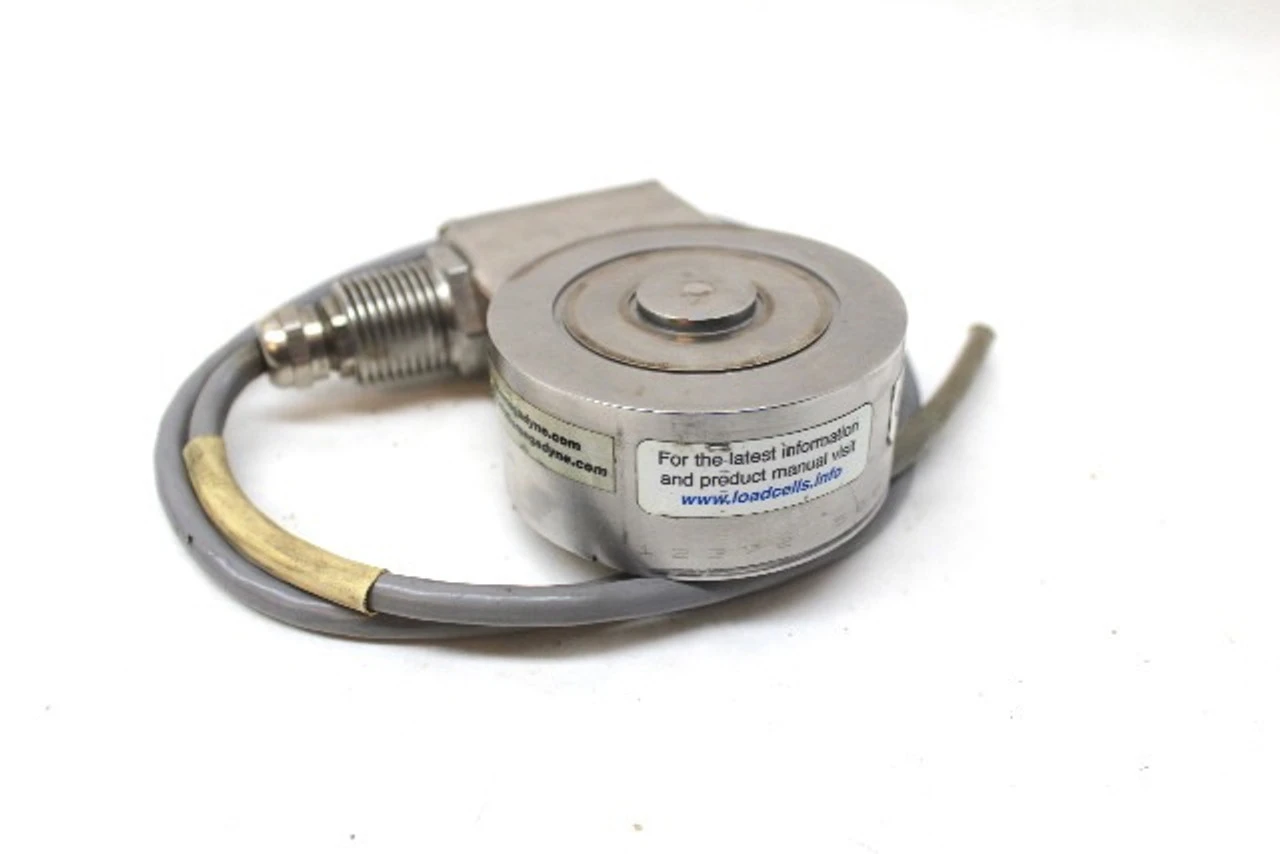

USED OMEGADYNE LC401-500

Omegadyne LC401-500 Load Cell 500 Lb Capacity
SPECIFICATIONS
Excitation:

10 Vdc (15 Vdc max)
Output:

3 mV/V ±0.25%
5-Point Calibration:

Calibrated at 0%, 50%, 100%, 50%, 0% (includes 59 kΩ shunt cal data). Note: Models >300,000 lb are calibrated to 300,000 lb. Full scale calibration above 300,000 lb within ±1% available.
Linearity:


>1000 kg:

0.10% FSO

≤1000 kg:

0.13% FSO
Hysteresis:


>1000 kg:

0.10% FSO

≤1000 kg:

0.12 % FSO
Repeatability:

0.05% FSO
Zero Balance:

±1% FSO
Operating Temp Range:

-54 to 107°C (-65 to 225°F)

Compensated Temp Range:

16 to 71°C (60 to 160°F)
Thermal Effects:


Zero:

0.0045% FSO/°C

Span:

0.0063% FSO/°C
Safe Overload:

150% FS Capacity
Ultimate Overload:

300% FS Capacity
Bridge Resistance:

350 Ω ±5 Ω
FS Deflection:

0.025 to 0.076 mm (0.001 to 0.003 in.) typical
Construction:

17-4 PH Stainless Steel
Electrical Connection:

LCM401:

15 ft (4.8 m) 4-Conductor shielded PVC Cable

SKU: IP14555
UPC: 646412782945
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 646412782945
Output Type: 0-10Vdc
Sensor Type: Electromechanical
Country/Region of Manufacture: United States
Manufacturer: Omegadyne
Capacity: 500 Lb
Series: LC
Shelf: B-3
Model: LC401-500
MPN: LC401-500
Type: Load Cell
