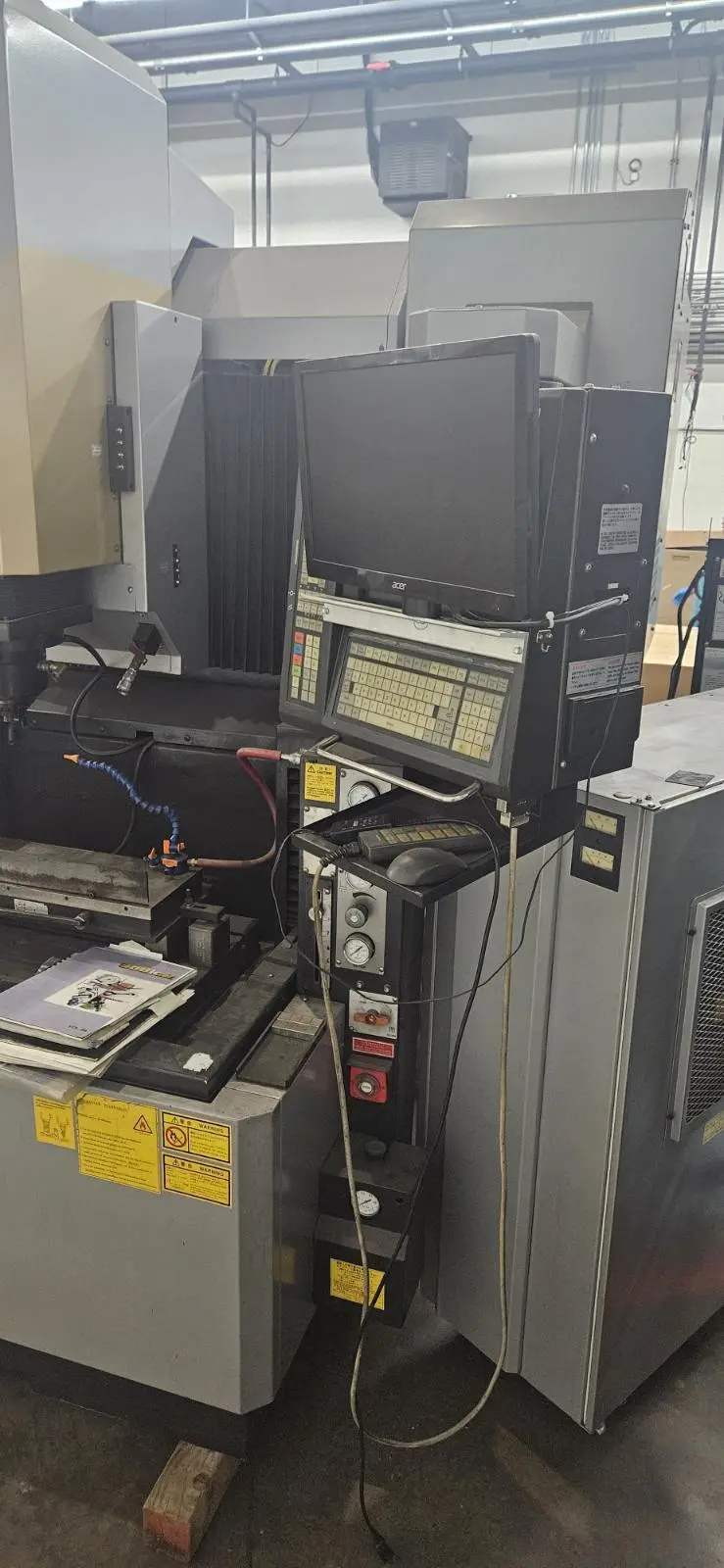

Sodick AQ35L CNC Sinker EDM, New in 2004
- Sodick LN1 Control
- C-Axis
- 4 Position ATC
- System 3R Macro Chuck
- Chiller
- Manuals
| # of Axis | 4 | 4 |
| Table Size-W | 23.5" | 596.9 mm |
| Table Size-L | 15.7" | 398.78 mm |
| Table Load Capacity | 1100 lb | |
| X - Axis Travel | 13.78" | 350.01 mm |
| Y - Axis Travel | 9.8" | 248.92 mm |
| Z - Axis Travel | 9.8" | 248.92 mm |
| Power Pack | 40 A | 40 A |
| Chuck Brand | System 3R | System 3R |
| C-Axis equipped | Yes | Yes |
| Tool Changer Type | Rack | Rack |
| Tool Changer Positions | 4 | 4 |
| Chiller Included | Yes | Yes |
| Control | CNC (Sodick LN1) | CNC (Sodick LN1) |
| Weight | 8600 lbs | 8600 lbs |
