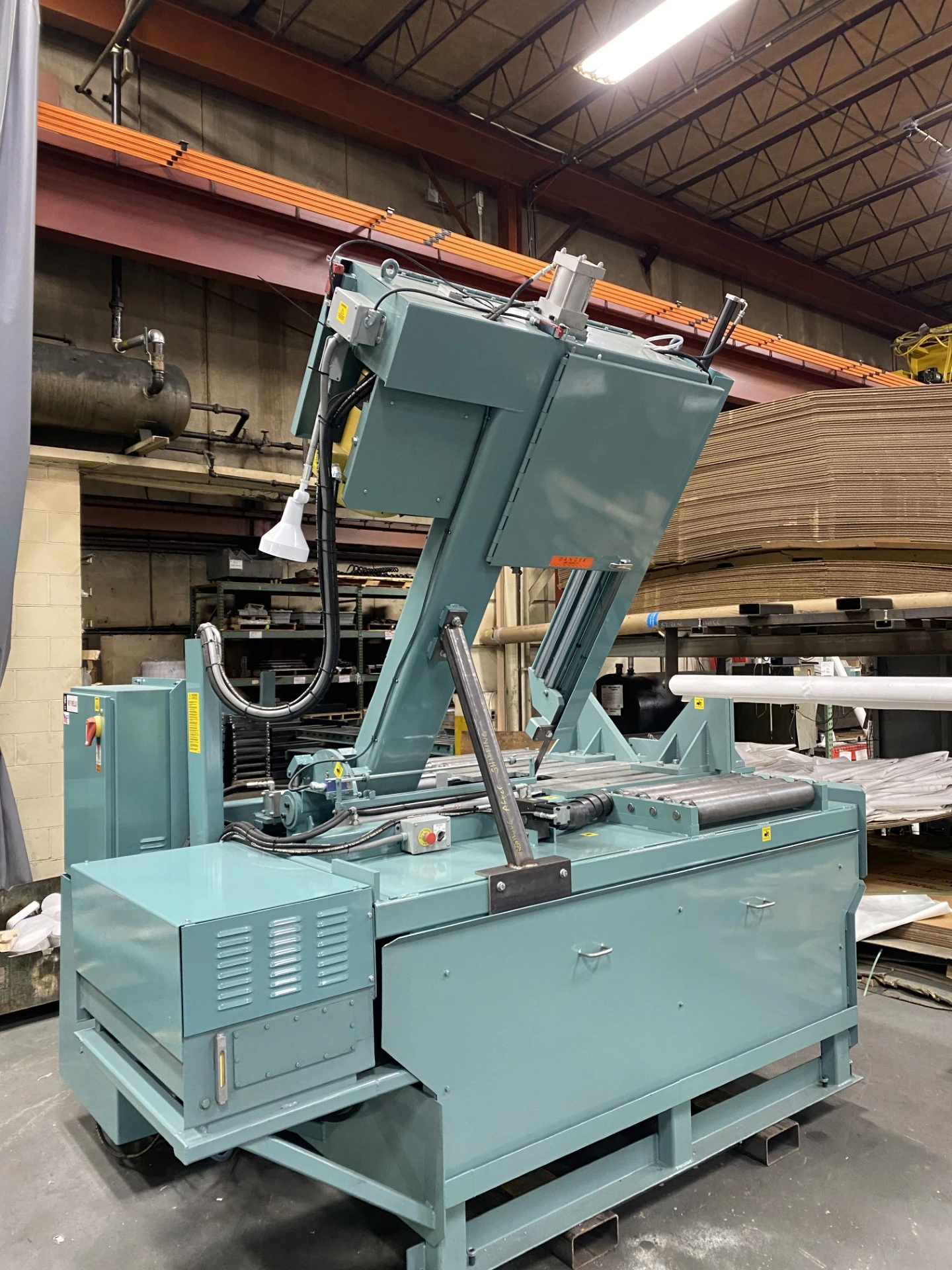

NEW WF WELLS VERTICAL TILT

Model VCO-2530

This bandsaw version has a variable tilting angle

OPTIONAL FACTORY INSTALLED ACCESSORIES

Description

Miter Vise, Compound Angles Order Number 0056147 Price $6,150.00

Hydraulic Hold-down, Each Vise Order Number 0056148 Price $6,250.00

High Speed Drive & Guides (1" Blade) Order Number 0056318 Price $9,780.00

Mist Coolant Order Number 0010774 Price $3,395.00

Non-Tilt version & less vises (VCO 2530NT) Subtract $-15,000.00

PLEASE CALL FOR PRICING ALL PRICES ARE SUBJECT TO CHANGE

Voltage Options

208v 60hz 3phase

230v 60hz 3phase

460v 60hz 3phase

575v 60hz 3phase

Weight Capacity: 10,000 lbs
Blade Speed: 70-570 SFPM
Blade Guide: Carbide Blocks Spring Tensioned
Blade Tension: Hydraulic, Console Controlled Order
Band-wheel Size: 26"
Vise: Hydraulic, Full Stroke
Hydraulic Drive: 5 HP Motor
Hydraulic Chip Conveyor: Auger Style
Coolant Capacity: 25 Gallons
Hydraulic Capacity: 20 Gallons
Work Height: 42"
Shipping Weight: 6,000 lbs
