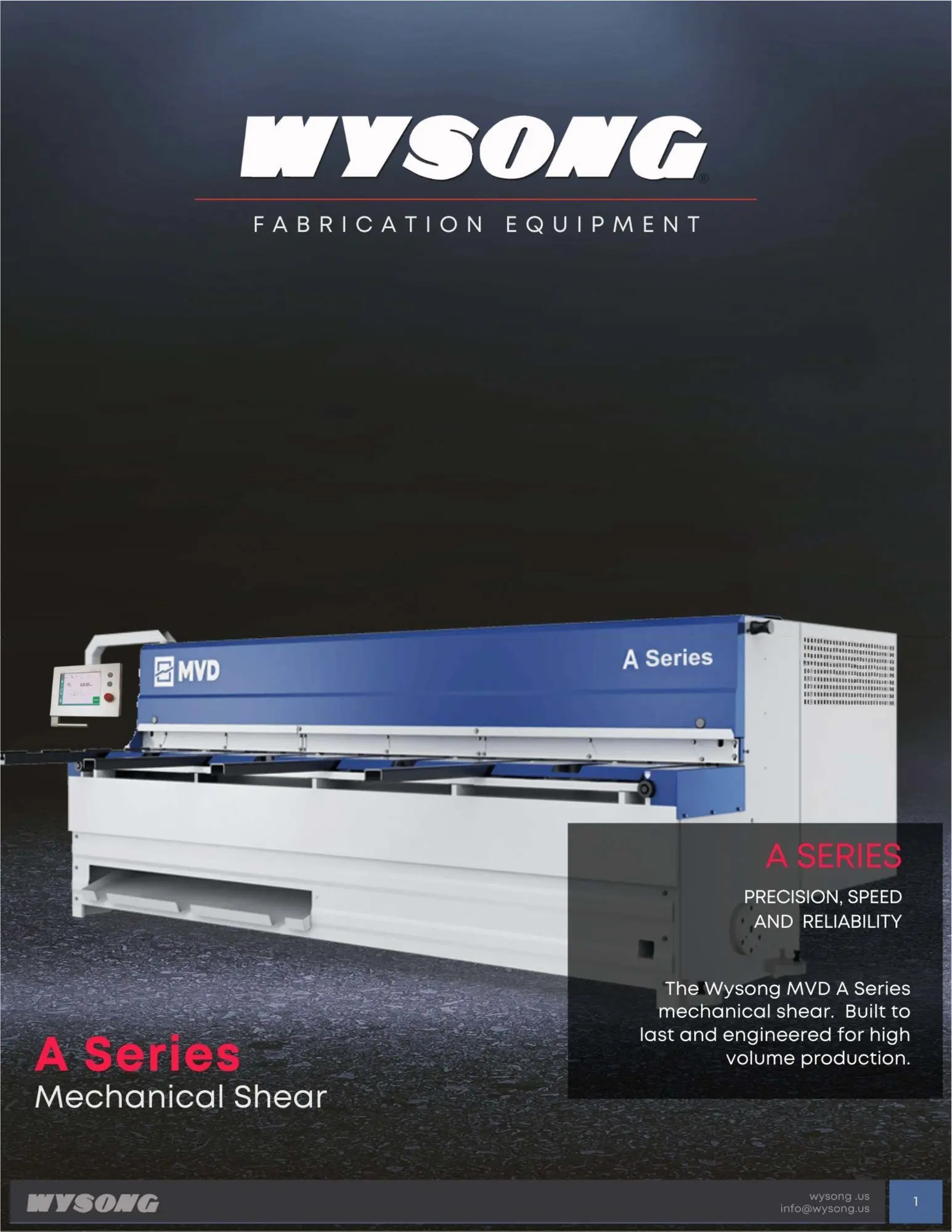

NEW WYSONG MVD A SERIES MECHANICAL SHEAR

Standard Features

Cybelec 12G Touch screen NC Control Unit

Rigid welded frame for maximum cutting accuracy NC controlled back gauge with 29.5" travel

High carbon/high chrome blades (upper blade 2 edges / bottom blade 4 edges)

Mechanical hold down holds the sheet in place while cutting

Simple Blade Gap adjustment system

Front table with roller bearings

Front Support Arms with scale

Illuminated cutting line

Front finger protection guard

Foot pedal

Rear safety guards

Emergency stop button

Optional Features

39" back gauge travel

Pneumatic Sheet support system (Rear Drop) Pneumatic Sheet support system (Front and Rear Drop features)

Angular gauge 0-180°

Longer front sheet supports & squaring arm Manual backgauge 750 mm, easy adjustment with hand wheel

Rear light barrier with CE conformity

Cutting capacity mild steel: 9 Ga
Cutting capacity stainless steel: 12 Ga
Maximum cutting length: 120 inches
Fixed cutting angle: 1.3 degrees
Hold Down Cylinders: 11
Cutting speed: 31 SPM
Back Gauge Travel (X): 29.500 inches
Main Motor: 15 hp
Table Height: 31.500 inches
Table Width: 20 inches
Machine dimensions (L x W x H): 145 inches x 89 inches x 55 inches
Machine Weight: 8,818 lbs
