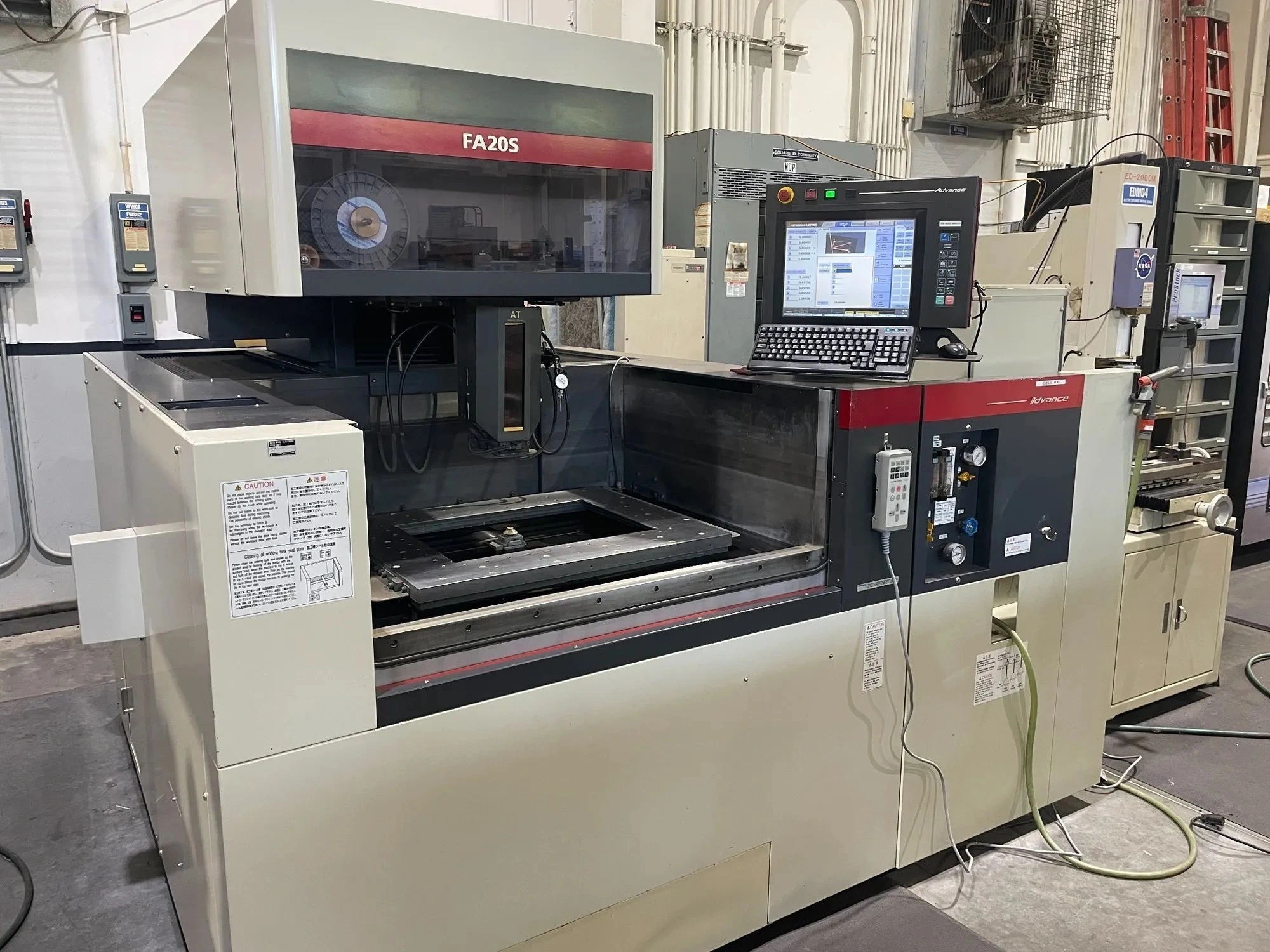

Mitsubishi FA20S Advance Wire EDM, 2007.
• Submerged machining to 11.8 inch
• Moving Column Design allows greater workpiece weight capability and easier loading
• Direct Drive 32mm Ball Screws
• Linear Motion Guide Ways support X, Y, Z and UV Axes.
• Digital 500 Watt AC Servo Drive System allows unexcelled cutting accuracy and high speed positioning.
• Linear Glass Scales New 4 millionths scales come as standard equipment on the XY axes.
• Standard 3-inch U-V Taper Unit allows up to 15° per side taper cutting in a 10.5" tall workpiece.
• Automatic Wire Threading (AT) is the world’s fastest auto-threading device with 10 second insert times
• M700 Series Control now offers 15” LCD display, touch panel,
Keyboard and mouse designed with ease of use in mind
(Ergonomics). Utilizing a Windows XP operating system it
includes a 20GB hard drive with a 1GB partition for user program
storage.
• Anti-Electrolysis (AE3-HS) Power Supply
* Wire Chopper
| # of Axis | 5 | 5 |
| Table Size - L | 30.71 in | |
| Table Size - W | 24.8 in | |
| Table Load Capacity | 3300 lb | |
| X - Axis Travel | 19.69 in | |
| Y - Axis Travel | 13.77 in | |
| Z - Axis Travel | 11.81 in | |
| U/V - Axis Travel | 3 in | |
| Taper Capacity | 15 deg | 15° |
| Auto Threading (Yes/No) | Yes | Yes |
| Wire Diameter - Min | 0.004 in | |
| Wire Diameter - Max | 0.012 in | |
| Dielectric Tank Capacity | 187 gal | |
| Submerged (Yes/No) | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 82" x 103" x 80" | 82" x 103" x 80" |
| Weight | 7700 | 7700 |
