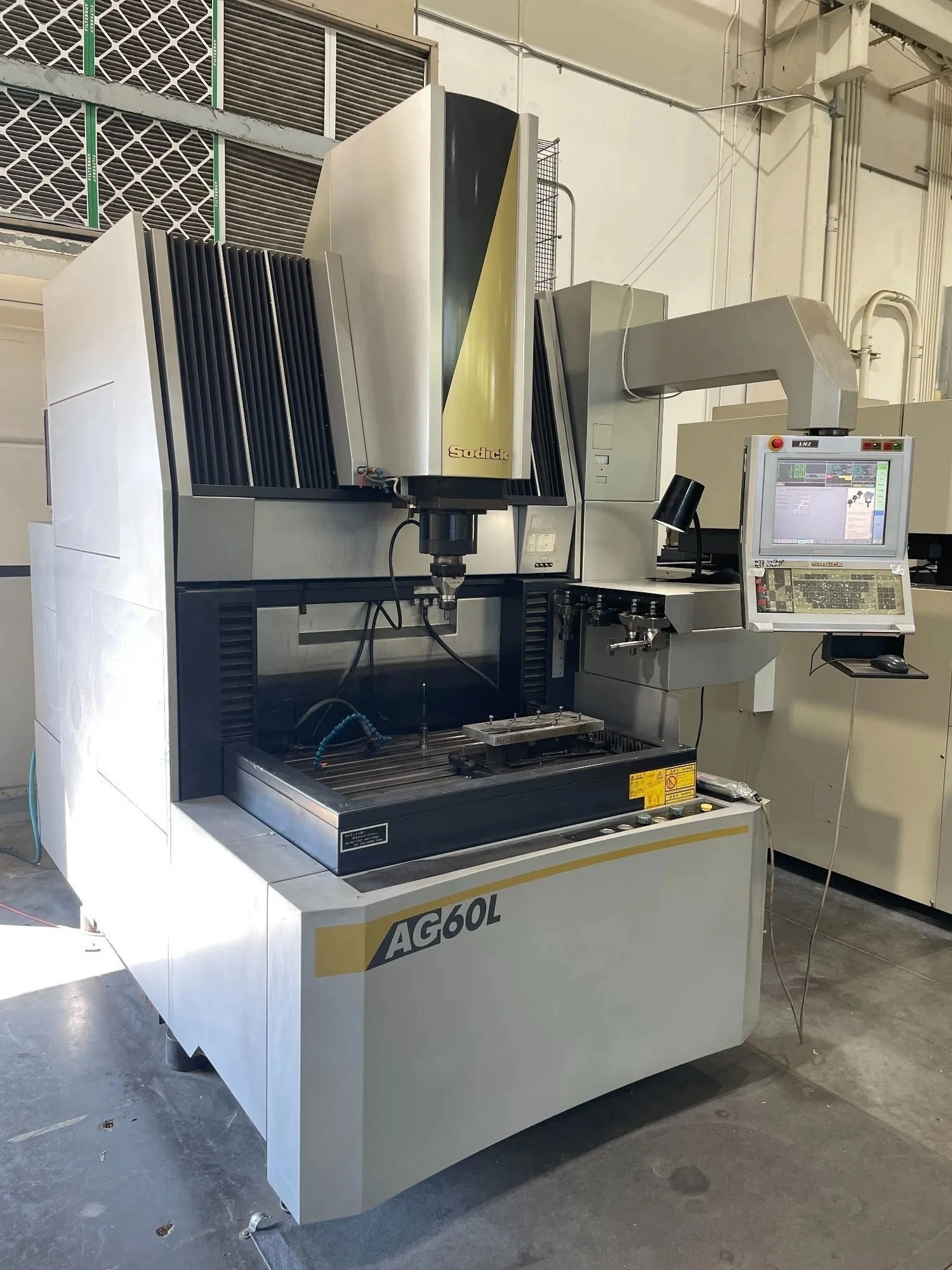

Sodick AG60L Sinker EDM, 2011
- High Speed Linear Motor Drive System
- Programmable C AXIS
- 6 Position ATC
- System 3R Macro Chuck
- Sodick LN2 Control
* Optimum pulse control for TMM 3 power supply (Arc-less, SVC circuit)
* Multi-tasking OS, KSMC-LINK system
| # of Axis | 4 | 4 |
| Table Size-W | 21.65" | 549.91 mm |
| Table Size-L | 29.53" | 750.06 mm |
| Table Load Capacity | 3306 lb | |
| X - Axis Travel | 23.6" | 599.44 mm |
| Y - Axis Travel | 16.5" | 419.1 mm |
| Z - Axis Travel | 14.6" | 370.84 mm |
| Power Pack | 40 mA | 40 mA |
| Chuck Brand | System 3R | System 3R |
| C-Axis equipped | Yes | Yes |
| Tool Changer Type | Rack | Rack |
| Tool Changer Positions | 6 | 6 |
| Dielectric Tank Capacity | 123 gal | |
| Power Requirement | 3506010 | 3506010 |
| Control | CNC (Sodick LN2) | CNC (Sodick LN2) |
| Dimensions | 80" x 112" x 101" | 80" x 112" x 101" |
| Weight | 11,770 lbs | 11,770 lbs |
