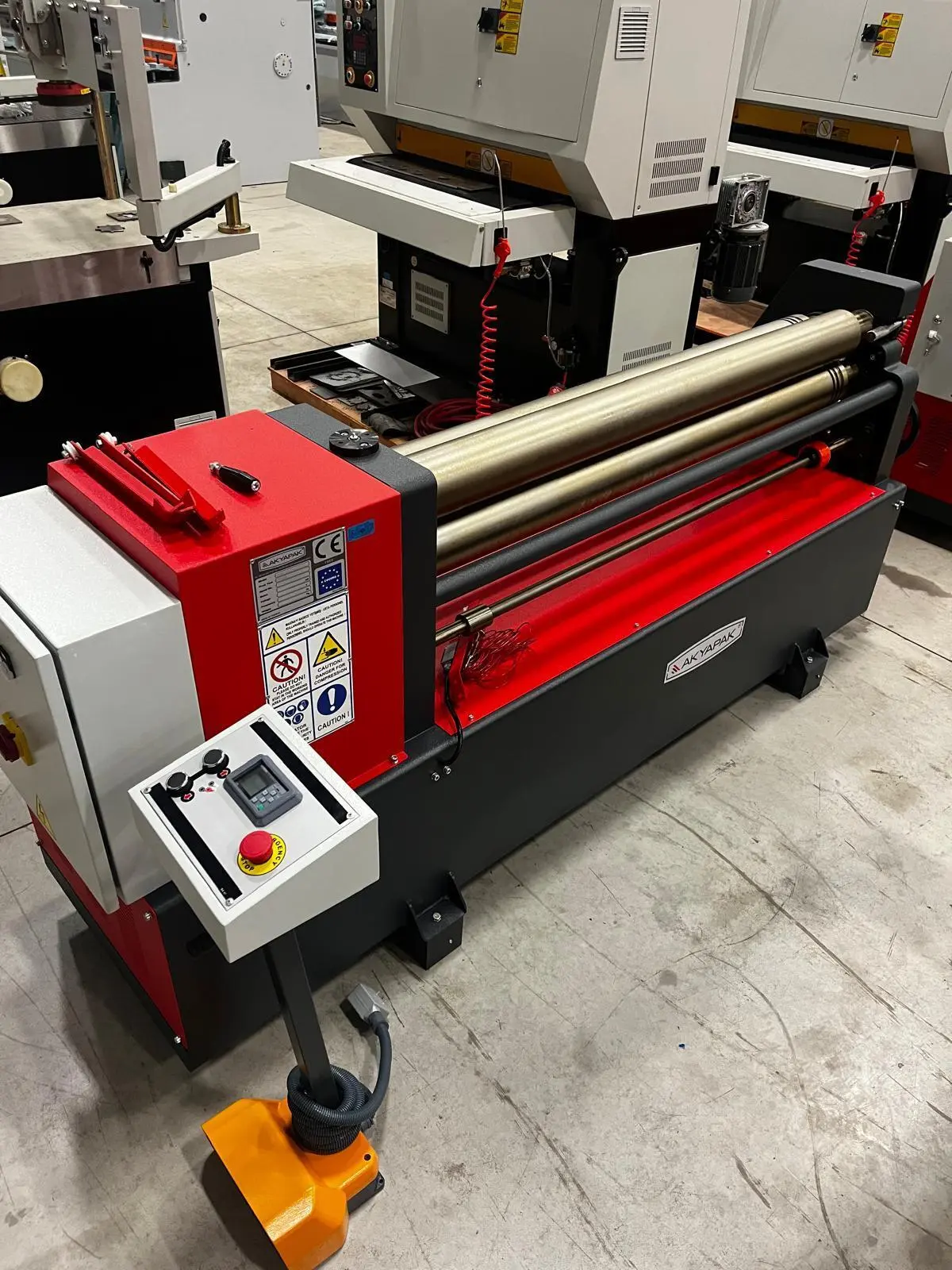

NEW AKYAPAK ASM 130 15/4
Overview
Description
The ASM 3 roll plate rolling machine is made with a cast iron body. Central rollers are powers. This well built, high performance machine is made in Europe and uses standard quality components found on the market.
Standard equipment
• Body of cast iron construction
• Central rollers powered with electric motor and gear drive
• Cone bending device
• Self brake main motor
• Top roller can be manual opened to the side
• Lower and back roll are in height adjustable by hand
• Separate electric control panel with foot pedal
• Back roll with Motor (option included)
• Induction hardened rolls (option included)
• Digital display (option included)
Specifications
| Max Thickness | 4 mm | 0.1575" |
|---|---|---|
| Max Width | 1,500 mm | 59.055" |
| # Rolls | 3 | 3 |
| Power Rear Roll (Yes/No) | YES | YES |
TECHNICAL SPECIFICATIONS
Working Length
1550 mm (61”)
Maximum Thickness
4.5 mm (3/16”)
Pre-bending
4 mm (8G)
Ø min bending (8G)
190 mm (7.5”)
Top Roll Ø
130 mm (5.1”)
Motor Power
2.2KW 4HP
Overall Length
2320 mm (91”)
Height
1200 mm (47”)
Width
900 mm (35”)
Weight
1360 kg (2998 Lbs)
