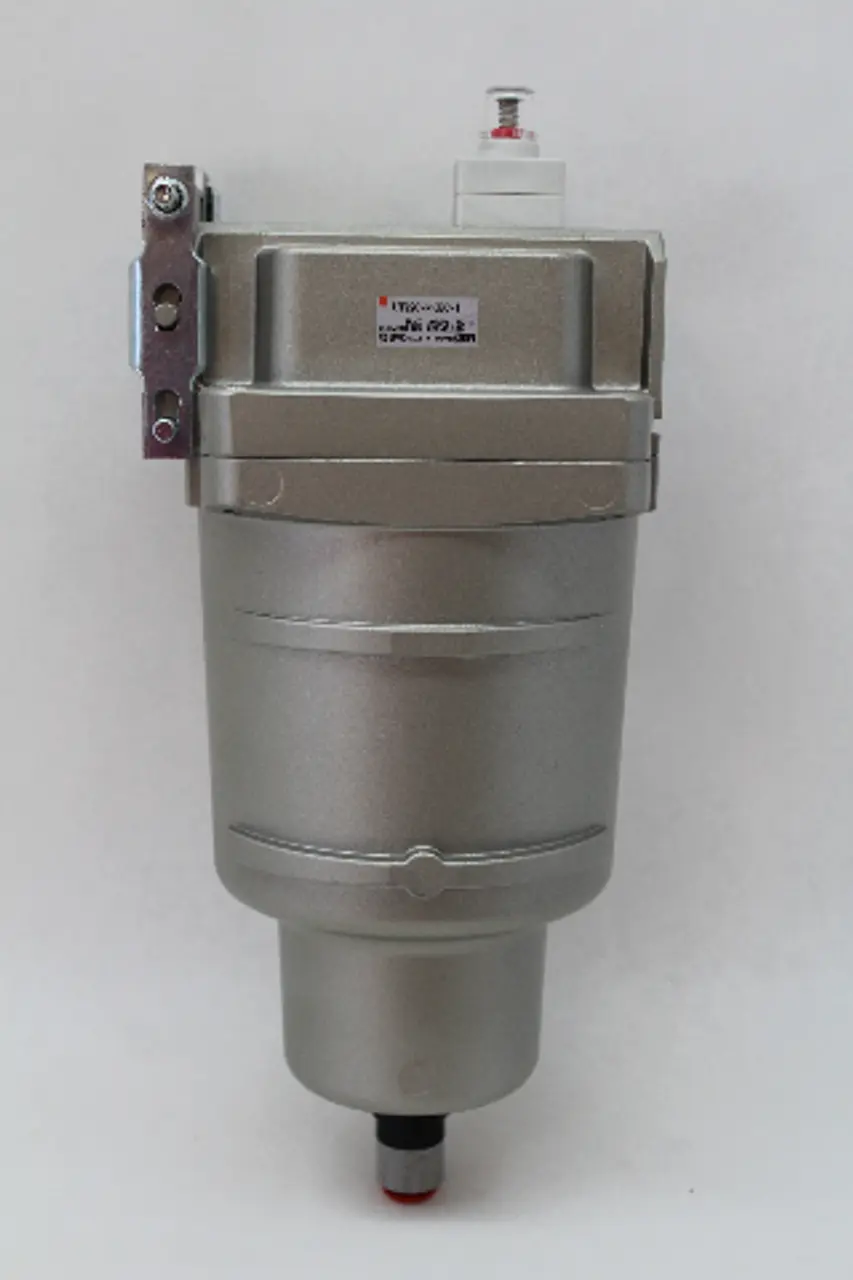

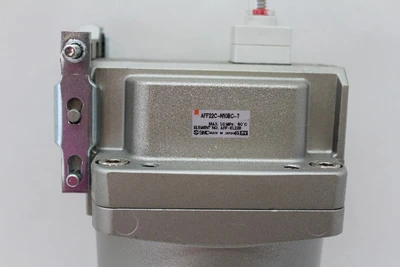

USED SMC AFF22C-N10BC-T
Overview
Description
Specifications
Filter type:
Main Air Line
Fluid compatibility:
Air
Micron rating:
3 micron
Overall length:
126 mm
Port size:
NPT 1.0000
Overall width:
122 mm
Bowl material:
Metal Bowl
Overall height:
349 mm
Drain type:
Automatic (Normally Closed)
Maximum operating pressure:
145 psi
Air flow capacity:
124 scfm
Proof pressure:
218 psi
Bowl options:
With Sight Glass
Maximum operating temperature:
140 °F
Body size:
22C
Port gender:
Female
Drain method:
Automatic
Thread standard:
NPT
Filter rating:
3 μm
Standards met:
CE,CSA,UL,JIS
Element life:
2 yr
Specifications
| Weight | 7.00 LBS | 7.00 LBS |
|---|
SKU: IP04504
UPC: 646412787926
Condition: Used
Availability: In Stock
Weight: 7.00 LBS
Width: 14.00
(in)
Height: 10.00
(in)
Depth: 14.00
(in)
Shipping: Calculated at Checkout
MPN: AFF22C-N10BC-T
Model: AFF22C-N10BC-T
Shelf: G-4
Max. Pressure: 145 psi
Manufacturer: SMC
Max. Operating Pressure: 145 psi
Country/Region of Manufacture: Japan
GTIN: 646412787926
