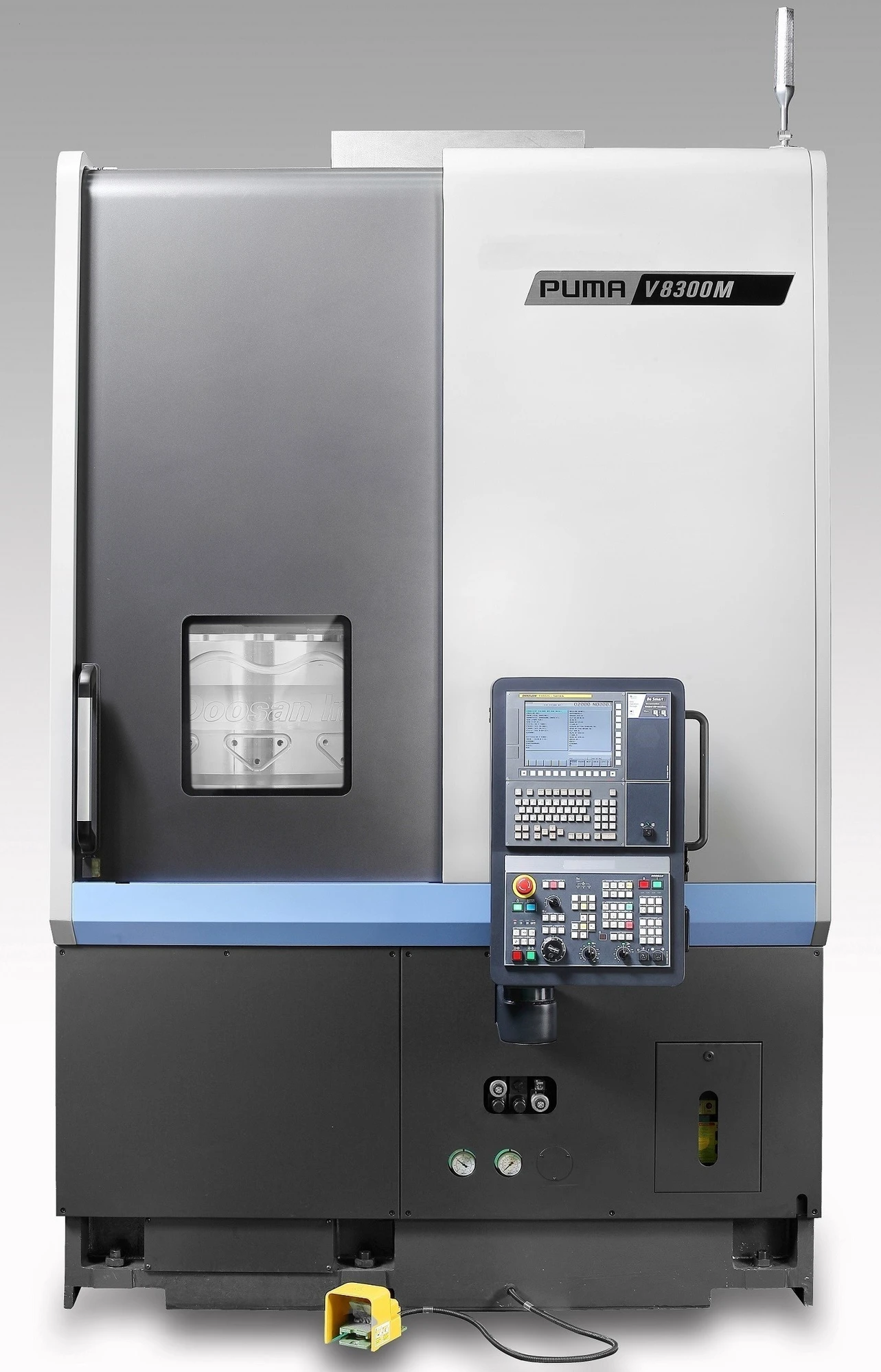

Puma V8300M vertical turning centers are designed to handle heavy and
interrupted cutting while producing and maintaining long-term high
accuracy and superior surface finishes. The vertical design facilitates
loading of heavy work pieces which helps ensure higher chucking accuracy
and allow for higher spindle speeds. Mill-drill capability reduces the need
for secondary machining on other machines, helping to eliminate additional
machine set-ups and handling costs.
| Swing | 36.2" | 919.48 mm |
| Machining Length | 27.17" | 690.12 mm |
| # Axis | 3 | 3 |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 32.68" | 830.07 mm |
| Live Tooling | Yes | Yes |
| Control | CNC (Fanuc OiTP) | CNC (Fanuc OiTP) |
