USED WALKER SP

🏭 Manufacturer Information

Manufacturer: Walker

Model: SP

Capacity: 800 Liters (approx. 211 gallons)

Material: 316L Stainless Steel

Construction: Dish top & dish bottom

Year Built: 1989

NB#: 1646

⚙️ Product Description

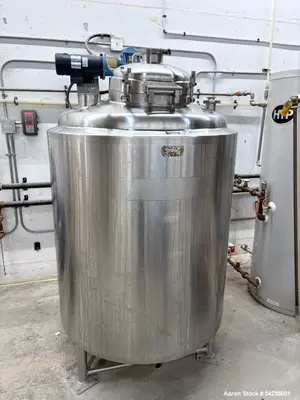

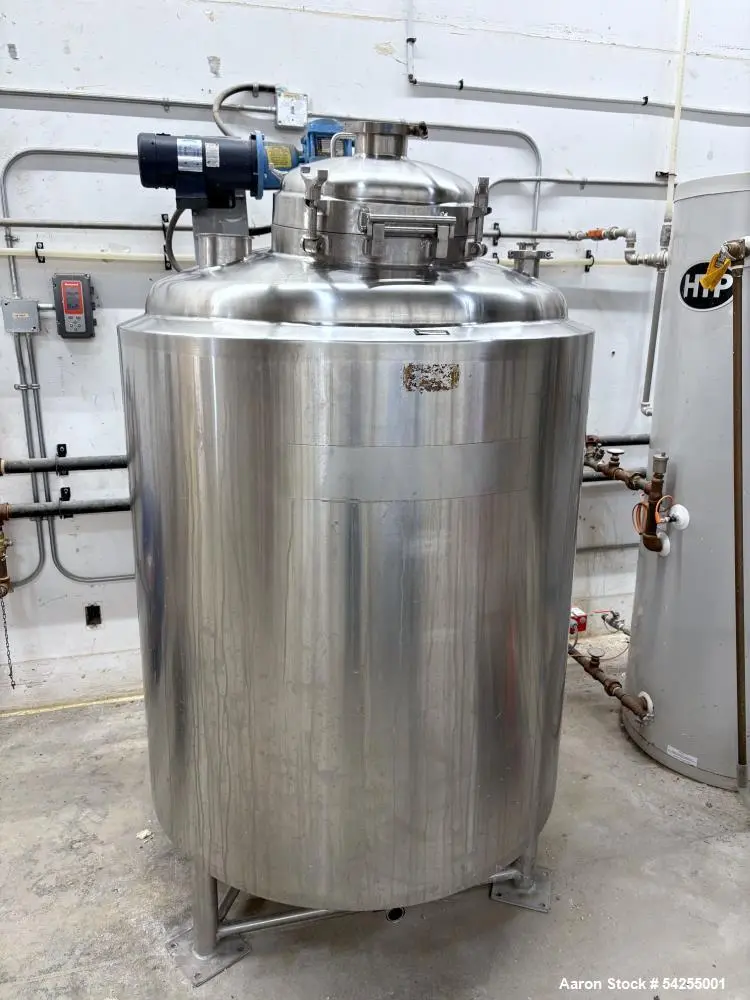

This Used Walker Model SP 316L Stainless Steel Reactor is a versatile, sanitary-grade reaction vessel designed for chemical, pharmaceutical, food, and biotech processing.
Featuring 800L (211 gallon) capacity, the vessel is internally rated for 50 psig & full vacuum at 275°F, with a jacket also rated 50 psig MAWP at 275°F. Built from high-purity 316L stainless steel, it includes dish top and bottom heads, multiple sanitary tri-clamp ports, a 16" top manway, and integrated spray ball for CIP cleaning.

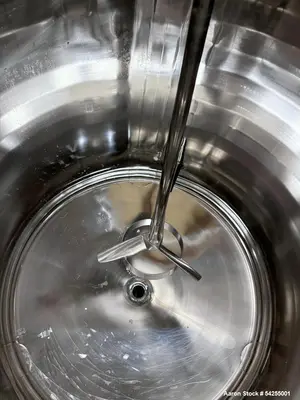

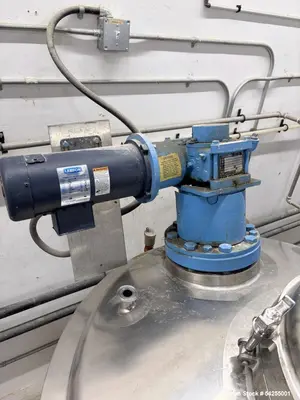

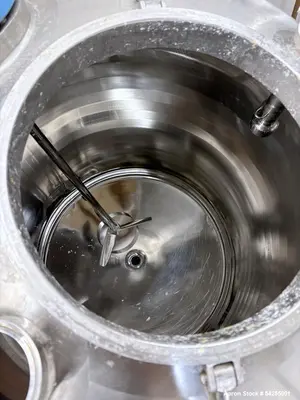

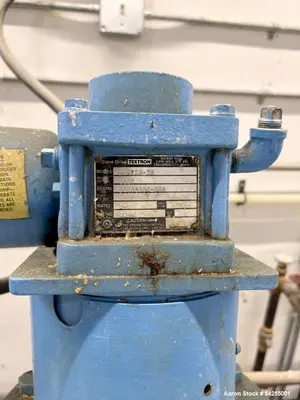

The reactor is equipped with an off-center, top-entering Lightnin agitator (0.75 HP, 1725 RPM), ideal for mixing, blending, suspension, or heating/cooling operations. Mounted on three stainless steel legs, this vessel is durable, compact, and production-ready.

📏 Specifications

Capacity: 800L / ~211 gallons

Material: 316L Stainless Steel

Internal Rating: 50 psig & full vacuum @ 275°F

Jacket Rating: 50 psig MAWP @ 275°F; MDMT -20°F @ 50 psi

Design: Dish top & dish bottom

Agitation:

Off-center, top-entering

0.75 HP Lightnin agitator

1725 RPM

Outlet: 2" tri-clamp center bottom outlet

Top Openings:

(2) 2" tri-clamp

4" sight glass

8" drive

16" manway with 4" sight glass

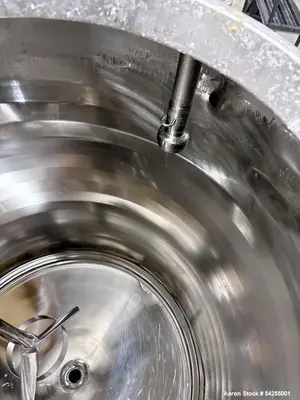

Cleaning: Integrated spray ball

Mounting: (3) stainless steel legs

NB#: 1646

Year: 1989

🧩 Applications

Pharmaceutical formulation

Chemical reactions

Cosmetic production

Biotech processing

Food & beverage batch mixing

Heating/cooling operations

Liquid blending

Suspension mixing

Sanitary batch processing

Specialty ingredient preparation

⚗️ What Might This Be Used For

Controlled mixing/heating of chemical solutions

Reaction processing under pressure/vacuum

Fermentation, extraction, or dissolution

Preparing emulsions, syrups, slurries, and concentrates

Clean-in-place (CIP) sanitary operations

🧱 Products That Could Be Processed

Pharmaceutical intermediates

Cosmetic creams & lotions

Liquid chemicals

Specialty polymers

Flavorings & syrups

Nutraceutical compounds

Biotech media

Essential oil mixtures

Food-grade liquids

Suspensions & emulsions
