Used 20" x 54" Monarch Model 610 Engine Lathe, perfect for precision machining tasks. Features include 20" swing, 54" centers, and 2.25" spindle bore. Equipped with a 12" 3-jaw chuck and quick-change toolpost, powered by 10 HP for efficient performance.
| Swing | 20" | 508 mm |
| Centers | 54" | 1,371.6 mm |
| Spindle Bore | 2.25" | 57.15 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,500 RPM | 1,500 RPM |

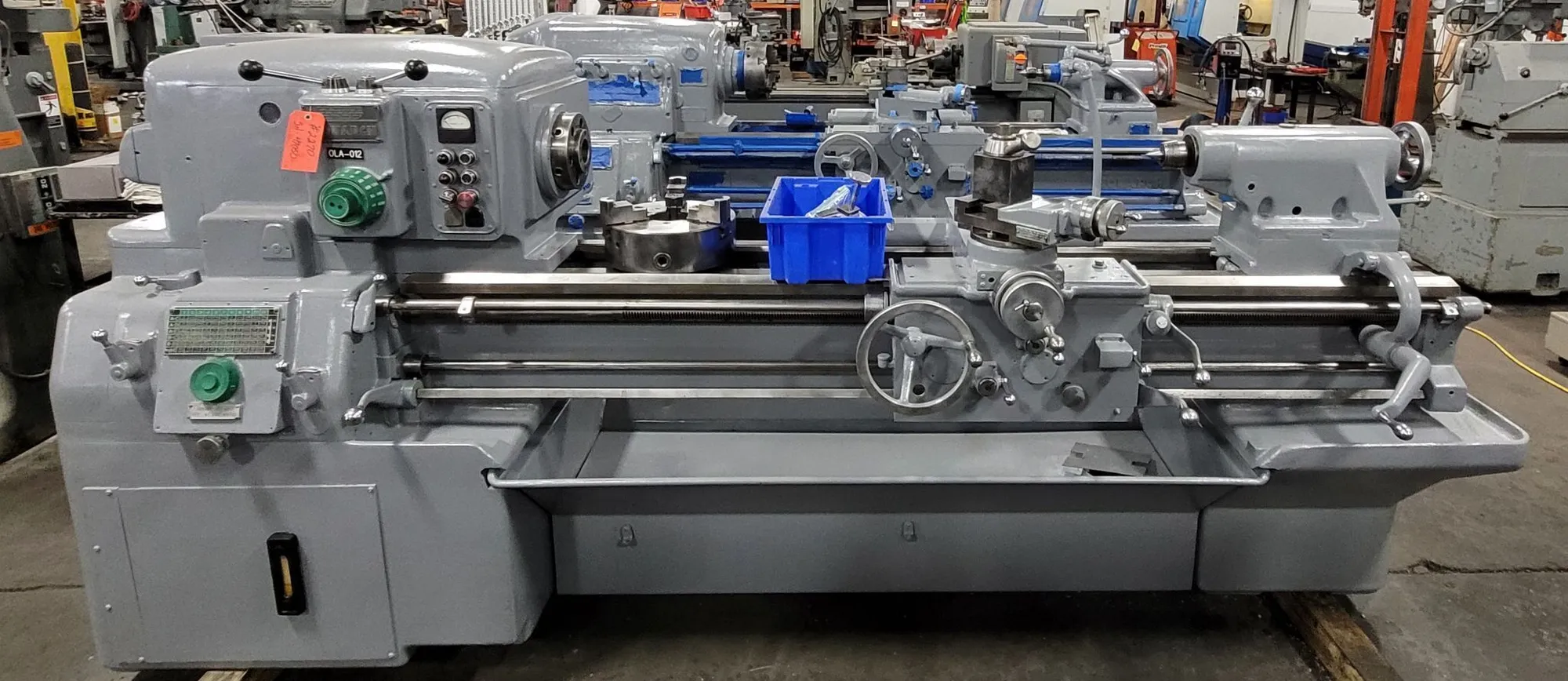

20" x 54" Monarch Model 610 Engine Lathe
Model 610
S/n 47050
12" 3 Jaw Chuck D1-6 Spindle Mount
2.25" Spindle Bore
Quick Change Toolpost
Spindle Speeds (18) Low Range 12-125 (18) High Range 145-1500
10 HP 240V 3 Phase
130" x 50" x 54" 5000lbs
