USED FELLOWS 10-4 REMANUFACTURED CNC

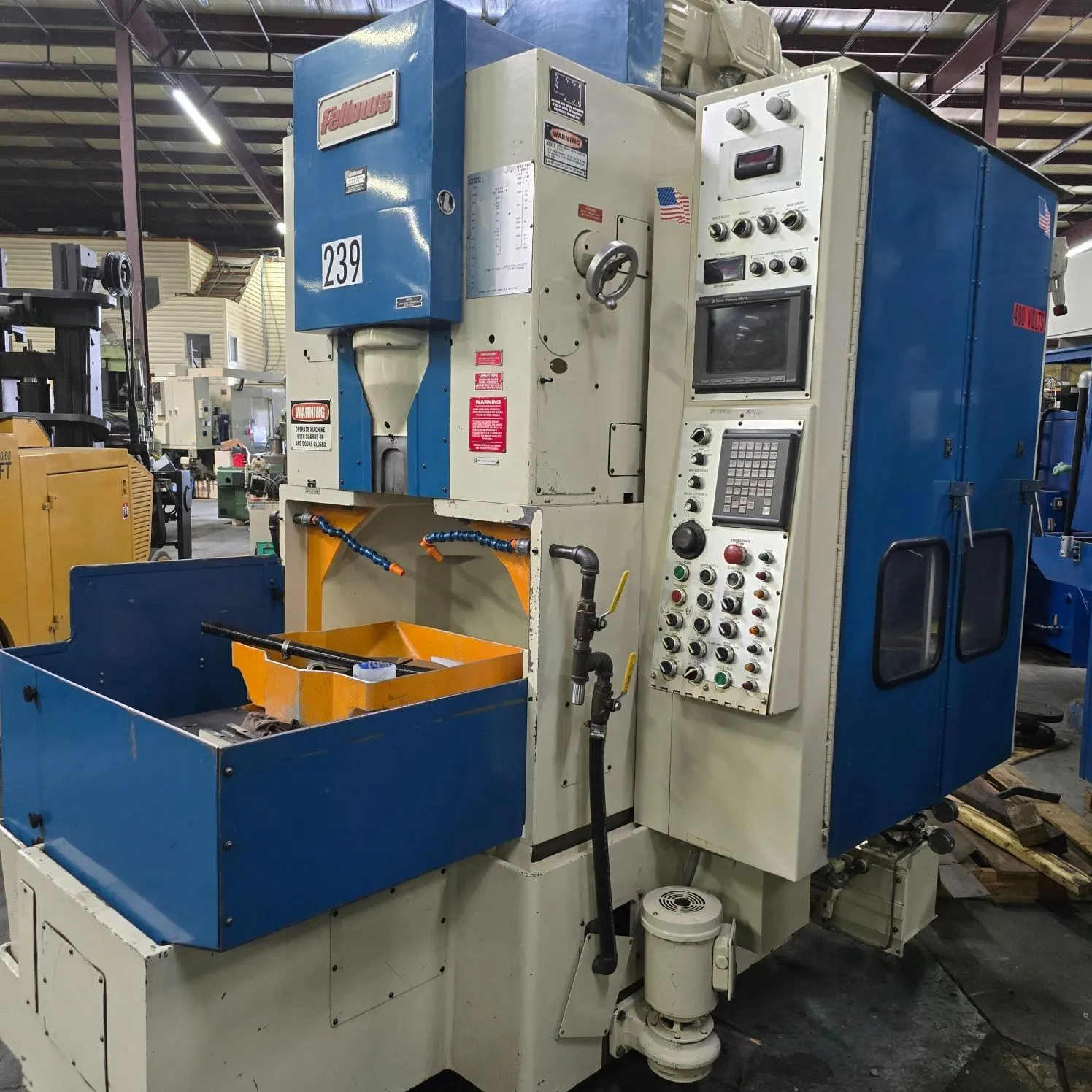

Fellows Model 10-4 Single axis CNC Gear shaper 6" Riser Machine was retrotifitted and rebuilt w/ GE/Fanuc Powermate iD mid 2002's w/ cutter elevation, clamping , etc., inquire s/n 35669

Fellows CNC Gear shaping machine
Model 10-4 remanufactured in 2000
W/ Single Axis cnc controls
s/n 35669
Remanufactured in 2002

Machine was remanufactured in 2002 with Fanuc Powermate controls. By
New England Gear. The Single-axis control allows full sizing control
of infeed and size positioning . Change gears are still utilized in
this machine configuration.

Machine specifications are as follows:
Machine Specifications:
Max pitch diameter (External) 10"++
Max pitch diameter (Internal) 10"
Max face width, external & internal 4"
Spindle Positioning Axis 0-3''
Max diametrical pitch spur 4 DP
Max diametrical pitch helical 5 DP
Bore through work spindle 5.875"
Cutter spindle diameter 3.543"
Max helix angle with special guides 45 deg.
Distance between table & cutter (w/no riser) 10"
Max. OD of fixture 19"
Dimensions (L x W x H) 91" x 72" x 108"
Machine net weight, approx 13,000 lbs.

Machines are equipped with :
GE/Fanuc Powermate ID CNC controls for single axis (infeed)  2 Machines are Available  .   Retrofit With GE Fanuc Powermate D 2-Axis CNC Control   Max Pitch Diameter, External 10"   Min Pitch Diameter, Internal 10"   Max Diametral Pitch, Spur 4 DP   Max Diametral Pitch, Helical 5 DP   Max Face Width 4"   Max Helix Angle w/ 5" Cutter 45 Deg   Max O D of Fixture 19"   Max Stroke Length 5"   Max Strokes Per Minute 800 SPM   Max Distance - Tabletop to Spindle 9"   Feed Per Stroke .001-.040   Cutter spindle diameter 3.543"   Work spindle bore diameter 5.875"   Work spindle bore depth 10"   Table Surface to Cutter Spindle Underside   In Uppermost Position 13.23"   Worktable C L to Cutter Spindle CL 9.06"   Maximum OD of fixture 19"   Rotary Feed Per 1" of Stroke .001"-.012"   Rotary Feed For Multi-Pass .001-.020"   Radial Feed Range Per Stroke .0001"-.020"   Max Radial Feed Per Minute .12"   Machine Dimensions 93" x 103"   Machine Height 101"   Approx Machine Weight 13,000 Lbs   EQUIPPED WITH:   GE Fanuc Powermate D 2-Axis CNC Control, 1999/2000 Retrofit W/ AC Frequency Spindle Drives   Hydraulically Operated Cutter Guard Assembly   Hydraulically Operated Table Fixture Clamping      15 HP Main Drive Motor
Special 6" riser assembly allowing 16" total clearance above table
Cutter Elevation
Hydraulic clamping
fine tooth clutch
main Spindle Motor 15HP 460/volt. 20 amps , 900 rpm
Misc change gears
cutter adaptor

Machine can be inspected under power in our Statesville, NC plant with
proper notice!! visit WWW.PiselliEnt.com . Visit our website to view
the machine as well as our vast inventory of other CNC Gear shapers
and hobbers. Im sure your'll find our inventory worth viewing!!

Thank you
Richard Piselli
