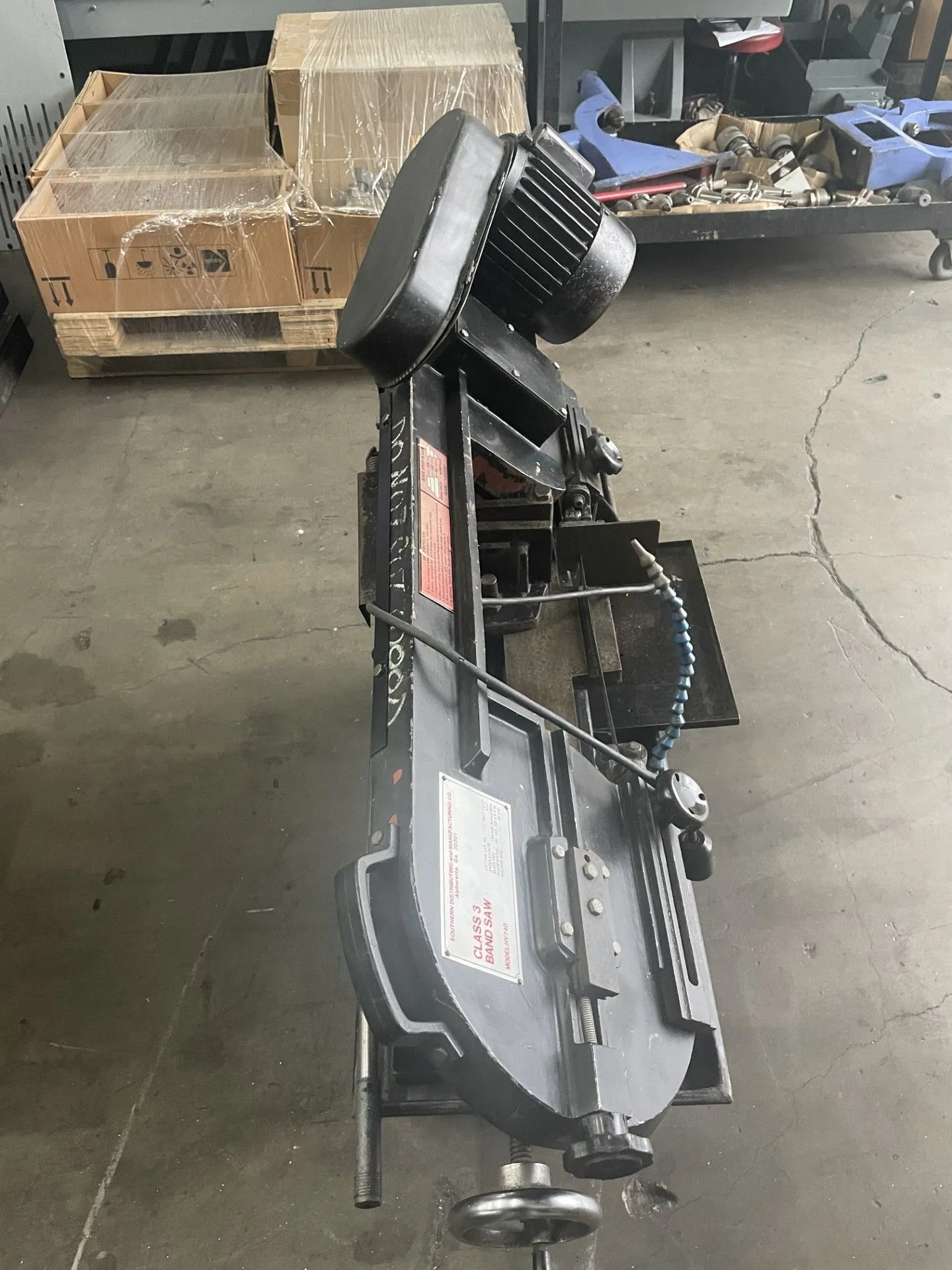

USED SOUTHERN DISTRIBUTING & MFG HV740

California, United States
Asking Price
USD $650.00
1 available
643Listings|85Followers
Overview
Horizontal Band Saws

Used SOUTHERN DISTRIBUTING & MFG HV740 Horizontal Band Saw. Ideal for precise cutting, this model offers dependable performance for industrial applications. Compact and efficient, suited for various materials. Perfect for enhancing your workshop's capabilities.

Specs
Rect-Cap (H)
7"
177.8 mm
Rect-Cap (W)
12"
304.8 mm
Power
0.8 hp
0.6 kW
Type (Auto, Manual, Semi)
Manual
Manual
Blade Width
0.75"
19.05 mm
Blade Thickness
0.032"
0.8128 mm
Blade Length
93"
2,362.2 mm
Dimensions
48 in (L) x 17 in (W) x 40 in (H)
48 in (L) x 17 in (W) x 40 in (H)
Weight
330 lbs
330 lbs

SOUTHERN DISTRIBUTING & MFG HV740 Horizontal Band Saw #8065 #1

SPECIFICATIONS:
Motor: 3/4 HP, 115/230V dual-phase motor
Cutting Capacity (Flat Stock): 7 inches (height) x 12 inches (width)
Blade Speeds: 4 speeds: 86, 132, 178, 260 RPM
Blade Size: 93 inches (length) x 3/4 inch (width) x 0.032 inch (thickness)
Vise: Adjustable rapid-action vise miters to 45°
Downfeed: Cast-mounted adjustable hydraulic downfeed
Portability: Equipped with four 8-inch rubber wheels for maneuverability
Construction: Rugged construction with flanged, cast-iron blade wheels and adjustable ball bearing blade guides
Overall Dimensions: 48 inches (L) x 17 inches (W) x 40 inches (H)
Ship Weight: Approximately 330 lbs
