Explore precise and durable machining with the 1960 Monarch 612 Engine Lathe. Featuring 20" swing, 78" centers, 2.0625" spindle bore, and 30 hp motor. Equipped with 18 spindle speeds, Aloris toolpost, coolant system, and threading capabilities.
| Swing | 20" | 508 mm |
| Centers | 78" | 1,981.2 mm |
| Spindle Bore | 2.0625" | 52.388 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12 RPM | 12 RPM |
| Swing Over Cross Slide | 16" | 406.4 mm |

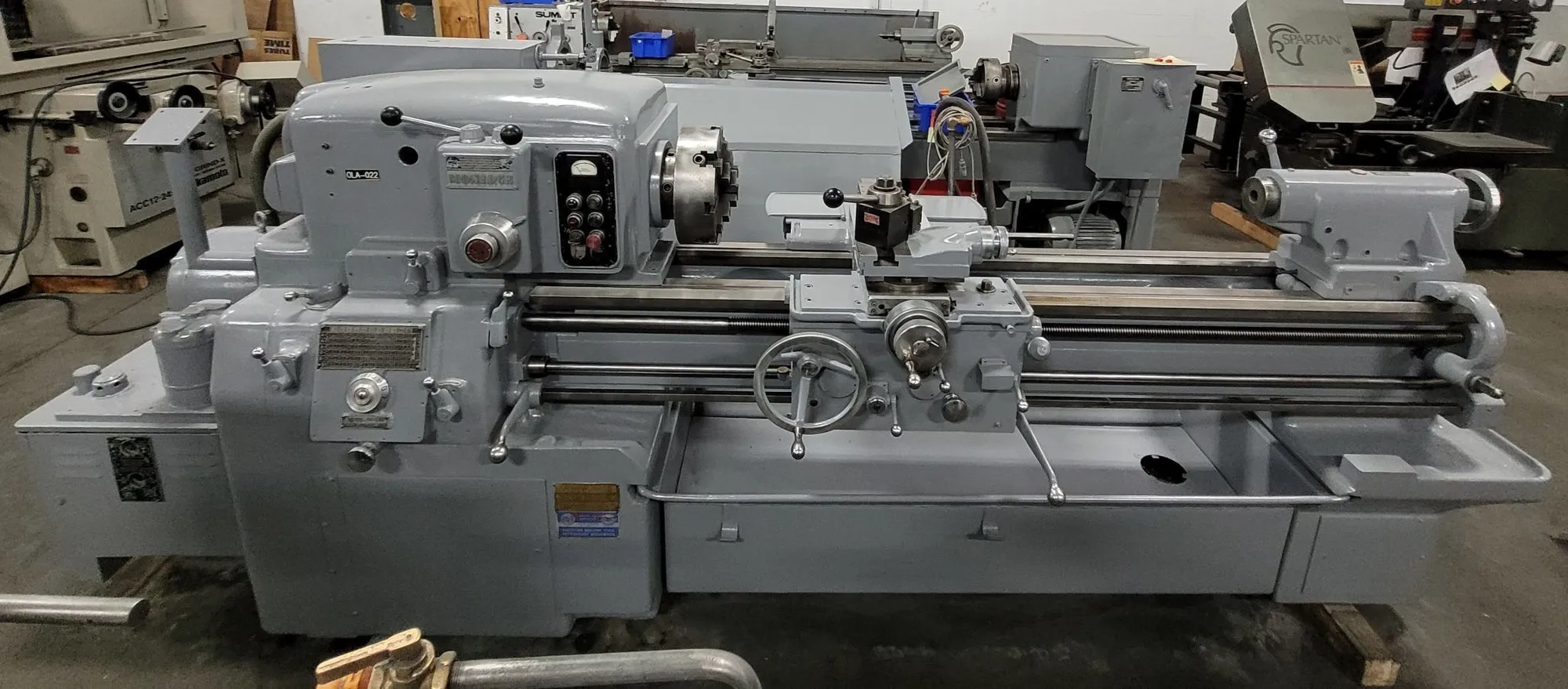

17" x 54" Monarch 612 Engine Lathe w/Taper
17" Swing
54" Between Centers
Taper Attachment
2" Spindle Bore
12" 4 Jaw Chuck D1-6 Mount
Aloris Quick Change Toolpost
Spindle Speeds (18) Low Range 14-146 (18) High Range 169-1750
10 HP 240V 3 Phase
Coolant System
Threading and feed capabilities
Inch threads: 66 different threads, from 2 to 120 TPI (threads per inch)
Feeds: 66 different feeds, from \(0.0014\) to \(0.0841\) IPR (inch per revolution)
Threading mechanisms: Lever-operated, with options for both lead screw and feed shaft operations
