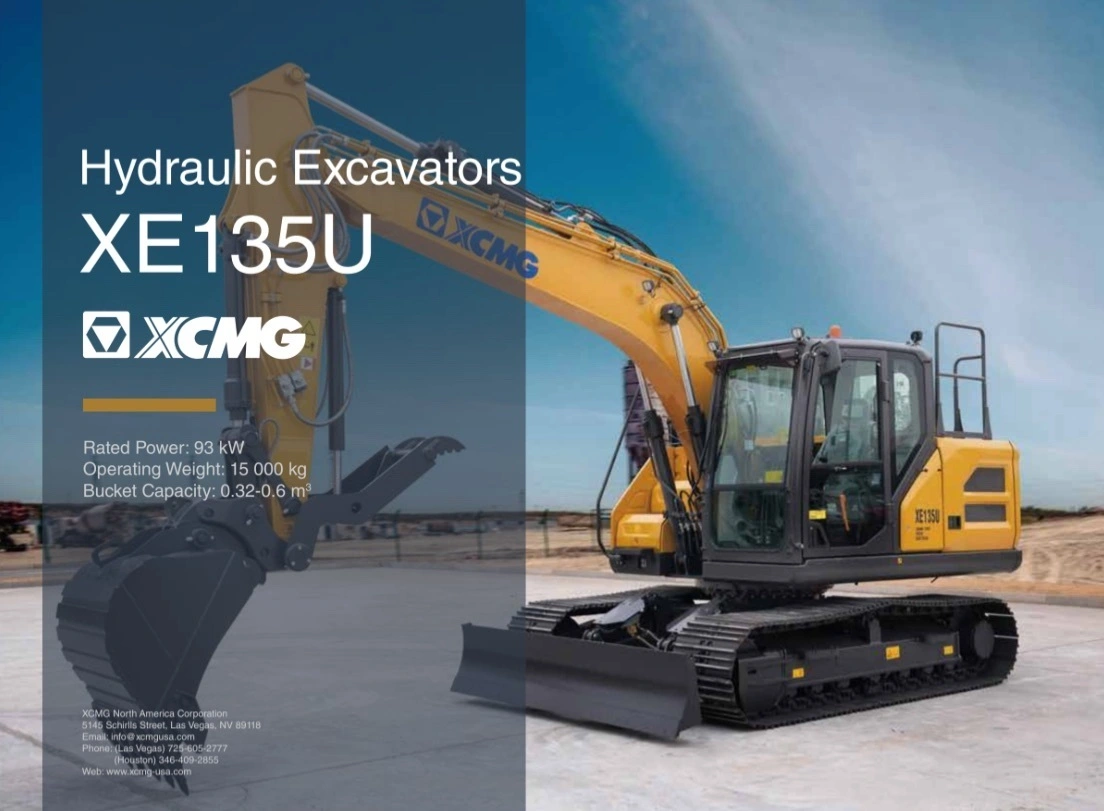

NEW XCMG XE135U

🚧 XCMG XE135UCR Hydraulic Excavator — Cummins Powered

📞 Call 716-353-3676 for more information

Need a 13–14 ton class excavator that’s built for production but still comfortable on tighter jobsites? The XCMG XE135UCR delivers big-machine digging performance in a more compact footprint — and the best part is what’s under the hood:

✅ Cummins Tier 4 Final Diesel Power
This machine is equipped with a Cummins F3.8 engine — a name contractors trust for parts support, reliability, and long-term uptime.

⸻

🔥 Engine (Cummins Tier 4 Final)
• Engine: Cummins F3.8
• Cylinders: 4
• Rated Power: 124.7 hp @ 2200 rpm (SAE J1995)
• Max Torque: 369 lb-ft @ 1500 rpm
• Idle (low–high): 950–1100 rpm
• Displacement: 232 in³
• Bore x Stroke: 4” x 5”
• Starter: 24V x 6.4 hp
• Batteries / Alternator: 2 x 12V, 95 Ah / 24V, 70A
• Air filtration: Donaldson PSD air filter + pre-filtered dust separator
• Emissions system described: EGR + SCR + DPF (T4F compliant)

⸻

💪 Operating Weight / Ground Pressure (Triple Grouser)
• 24” shoes: 33,086 lb | 6.2 psi
• 28” shoes: 33,510 lb | 5.4 psi
• 31” shoes: 33,961 lb | 4.8 psi

⸻

⚙️ Hydraulics (Pumps, Flow, Pressure)

Main Pumps
• Type: 2 x variable displacement tandem axial piston pumps
• Max Flow @ 1800 rpm: 2 x 30 gpm

Pilot Pump
• Type: Gear pump
• Max Flow @ 1800 rpm: 4.8 gpm

Relief Valve Settings
• Pressure up: 4,978 / 5,405 psi
• Travel: 4,978 psi
• Swing: 3,627 psi
• Pilot: 589 psi

⸻

🧠 Hydraulic Cylinder Sizes (Bore x Rod x Stroke)
• Boom (Qty 2): 4.1” x 2.8” x 37”
• Arm (Qty 1): 4.7” x 3.2” x 44.1”
• Bucket (Qty 1): 3.9” x 2.8” x 33.5”

⸻

🔄 Swing Performance
• Max swing speed: 11.6 rpm
• Max swing torque: 28,027 ft-lb

⸻

🧊 Fluid Capacities
• Fuel tank: 66 gal
• Cooling system (radiator): 5.5 gal
• Urea (DEF) tank: 6.6 gal
• Hydraulic oil tank: 25.1 gal
• Engine oil: 2.9 gal
• Swing drive: 0.5 gal
• Travel device: 2 x 0.6 gal

⸻

🏁 Travel / Traction
• Travel speed (low–high): 1.68–3.04 mph
• Maximum traction: 27,202 lbf
• Maximum gradeability: 35° / 70%

⸻

🧱 Undercarriage
• Upper rollers (per side): 1
• Lower rollers (per side): 7
• Links & shoes (per side): 45
• Overall track length: 12’

⸻

📏 Dimensions (Boom 15’1” / Arm 8’3” / Bucket 0.85 yd³)
• Boom length: 15’1”
• Arm length: 8’3”
• Bucket capacity: 0.85 yd³
• Tail swing radius (brochure): 7’9” (UCR builds may differ—confirm by serial/build)
• Shipping height (boom): 9’7”
• Shipping height (cab): 9’11”
• Shipping length: 25’6”
• Shipping width: 8’6”
• Counterweight clearance: 3’7”
• Height over cab: 9’5”
• House width: 8’2”
• Cab height above house: 3’0”
• Cab width: 3’7”
• Tumbler distance: 9’7”
• Track length: 11’1”
• Undercarriage width: 8’6”
• Shoe width (std): 24”
• Track height: 3’2”
• Ground clearance: 1’9”

⸻

🕳️ Working Range
• Max digging reach: 27’3”
• Max digging reach (ground): 26’9”
• Max digging depth: 18’2”
• Max loading/unloading height: 20’3”
• Min loading height: 6’10”
• Max digging height: 28’4”
• Max bucket pin height: 24’5”
• Max vertical wall depth: 15’
• Max radius vertical: 18’4”
• Max digging depth (8’ level): 17’4”
• Min radius: 7’2”
• L. Min swing radius: 8’1”
• Real swing radius: 7’6”
• Max blade height: 1’5”
• Max blade depth: 2’1”
• Blade height: 2’3”

⸻

⛏️ Digging Forces (ISO)
• Bucket (Normal/Press. Up): 24,065 lbf
• Arm (Normal/Press. Up): 17,985 lbf

⸻

🧰 Component Weights
• Upper structure (without front attachment): 11,806 lb
• Lower structure assembly: 10,571 lb
• Front assembly: 5,732 lb
• Counterweight: 4,910 lb
• Boom: ~15,172 lb
• Arm: ~8,771 lb

⸻

🔇 Noise Ratings
• LpA (ISO 6396): 76 dB(A)
• LwA (ISO 6395): 102 dB(A)
