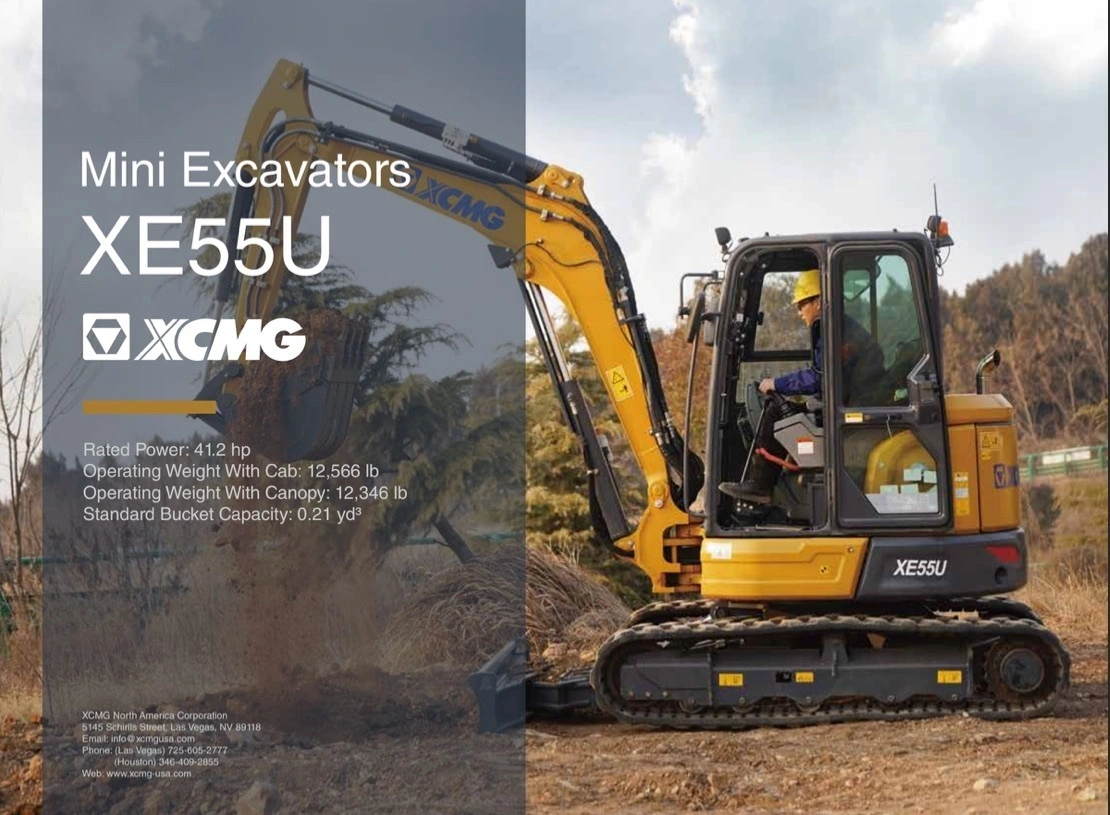

NEW XCMG XE55U

🔥 XCMG XE55U Mini Excavator — KUBOTA Tier 4 Final Power + Serious Hydraulic Performance 🔥

If you want a compact excavator that customers instantly trust, start with what matters most: it’s powered by a KUBOTA V2403 Tier 4 Final diesel. The XE55U brings reliable Kubota power, smooth pilot controls, strong digging forces, and real auxiliary flow for attachments—built for utilities, site work, drainage, landscaping, light demo, and tight-access jobs.

✅ ENGINE (KUBOTA — Tier 4 Final)

Make/Model: Kubota V2403 (Tier 4F)

Rated power: 41.2 hp (ISO 14396)

Max torque: 117.9 ft-lb @ 1500 rpm

Cylinders: 4

Bore x Stroke: 3.4 in x 4 in

Cooling: liquid, forced circulation

Alternator: 12V / 60A

Noise: 79 dB(A) LpA (ISO 6396) / 96 dB(A) LwA (ISO 6395)

💪 OPERATING WEIGHT / BUCKET

Operating weight (Cab): 12,566 lb

Operating weight (Canopy): 12,346 lb

Standard bucket capacity: 0.21 yd³ (brochure “0.21 yd/three.superior”)

General purpose bucket (listed): 0.2 yd³

Ground pressure: 4.6 psi

Transport mass

With Cab: 12,403.2 lb

With Canopy: 12,182.7 lb

Track/arm add-on weights

Steel tracks weight: 683.4 lb

Rubber tracks weight: 529.1 lb

Additional weight for long arm: 59.5 lb

🚀 HYDRAULICS (ATTACHMENT READY)

Pump type: Load-sensing axial-piston pump (variable displacement)

Total hydraulic capacity: 41.8 GPM

AUX1 & AUX2 max flow: 23.8 GPM

AUX1/AUX2 standard relief pressure: 2,465.6 psi

Maximum system pressures

Arm / Bucket / Travel: 4,641.2 psi

Boom: 4,641.2 / 4,641.2 / 4,119.1 psi

Swing: 3,335.9 psi

Control note from brochure: pilot-controlled levers allow independent + combined function operation (smooth multi-function work).

⛏️ PERFORMANCE

Digging forces (ISO 6015)

Standard arm: 5,462.9 lbf

Long arm: 5,260.5 lbf

Bucket: 10,004 lbf

Travel / traction

Travel speed (low–high): 1.7 – 2.9 mph

Traction force: 11,869.9 lbf

Gradeability: 70% / 35°

Swing

High-torque axial piston motor + planetary reduction, oil bath

Slew brake: automatic multi-disc

Swing circle: single-row shear-type ball bearing w/ induction-hardened internal gear

Slew rate: 9.5 rpm

🛞 UNDERCARRIAGE / TRACKS

X-type undercarriage (fully welded, stress-free structure)

Hydraulic chain adjusters + shock-absorbing return springs

Lifetime-lubricated track rollers and idlers

Bottom rollers (per side): 5

Tracks: Rubber (steel listed as option)

Track shoe width: 16 in

Overall track length: 8'2"

📏 WORKING RANGE (STANDARD ARM vs LONG ARM)

Max digging height: 18'6" (std) / 18'11" (long)

Max digging depth: 11'11" (std) / 12'9" (long)

Max dumping height: 13'2" (std) / 14'2" (long)

Max vertical wall depth: 8'10" (std) / 9'6" (long)

Min swing radius: 7'12" (std) / 8'2" (long)

Max reach at ground level: 19'7" (std) / 25'5" (long) (as printed in brochure)

Max digging reach: 20'1" (std) / 20'9" (long)

Dozer lift / cut: 18" lift / 16" cut

📐 DIMENSIONS (BROCHURE HIGHLIGHTS)

Overall length: 17'6"

Tail swing radius: 3'5"

Tumbler length: 6'6"

Track length: 14'9"

Undercarriage length: 10'5"

Dozer blade max reach at ground: 6'7"

Dozer blade height: 16"

Overall width: 6'

Track gauge: 5'1"

Min ground clearance: 12"

Track height: 22"

Counterweight clearance: 25"

Overall height (engine hood): 5'7"

Overall height: 8'5"

Track shoe width: 16"

Working width at max rotation: 6'12" (RH) / 6'5" (LH) (as printed)

Max boom offset: 32" right / 24" left

Boom swing: 70° right / 53° left

🧰 FLUID CAPACITIES

Cooling system (radiator capacity): 3.2 gal

Engine oil + filter: 2.5 gal

Fuel tank: 18 gal

Hydraulic tank: 12.2 gal

Hydraulic system: 5.8 gal

Final drive case (each): 0.3 gal

🏋️ LIFTING CAPACITIES (BROCHURE CHART)

The brochure includes full ISO lift charts for:

Cab + standard arm (5'2") and

Cab + long arm (6'3"), standard counterweight, no bucket.

Peak chart values shown reach up to ~8,069 lb depending on radius/height/configuration. (I can format the full chart into a clean “spec sheet image” if you want it posted as a second slide.)

📍 Available through IronListing.com

📞 Call Garrett: (716) 353-3676
Ask about pricing, financing, and delivery — and get an XE55U on your jobsite.
