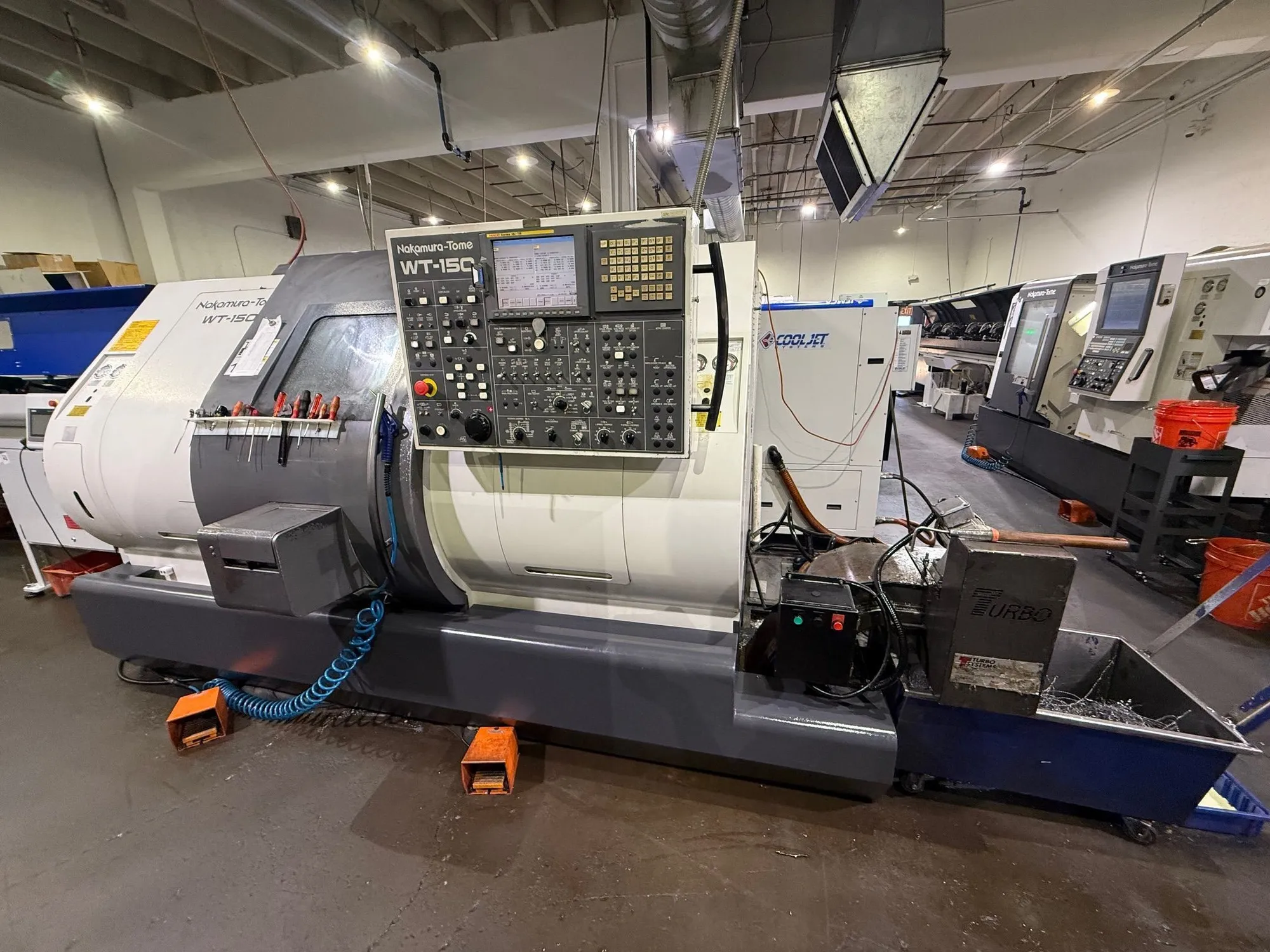

NAKAMURA TOME WT-150 Multi Axis CNC Lathe Y 2008’ #7992
| Swing | 12.2" | 309.88 mm |
| Machining Length | 21.85" | 554.99 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 12.2" | 309.88 mm |
| Tailstock | No | No |
| Control | CNC (FANUC 18i) | CNC (FANUC 18i) |
| Weight | 19,000 Lbs. | 19,000 Lbs. |
NAKAMURA TOME WT-150 Multi Axis CNC Lathe Y 2008’ #7992
Reference #7992
Model # WT-150
Serial # M152008
Year of manufacture- 2007’ installed 2008’
X-axis travel- 6.2”
Y-axis travel- 1.377”
Z-axis travel- 18.299”
B-axis travel- 23.62”
C-axis: 360º (0.001º)
Turning length- 15.70
Turning diameter- 7.48”
Distance between spindle centers-29.52”
Bar working capacity- 2.04”
Upper turret
Tool positions: 12
Driven tool speed RPM: 6,000
Driven tool power kW: 5.5 / 3.7
Number of upper turrets: 1
Lower turret
Tool positions: 12
Driven tool speed RPM: 6,000
Driven tool power kW: 5.5 / 3.7
Milling function: Both turrets
Number of lower turrets: 1
Main spindle
Spindle speed rpm: 5,000
Spindle drive power kW: 15 / 11
Sub-spindle
Spindle speed rpm: 4,500
***Please note, no live tool holders are included with the unit, the machine comes with several block tool holders and (2) 3 Jaw CNC Chucks, the Collect chucks are not included***
***Bar feeder & High Pressure coolant pump is not included***
FANUC 18i-TB CNC Control
Machine Hours- Operating time 7,136, Cutting time- 15,888 Cycle time- 32,808
Dual head pre-setter
Turbo chip conveyor
Coolant pump
Dual foot pedals
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 19,000 Lbs.
Machine location- F.O.B. Sarasota, Florida
