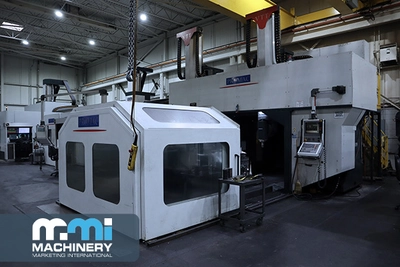

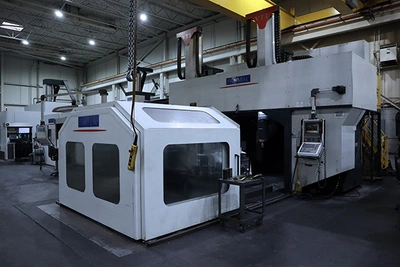

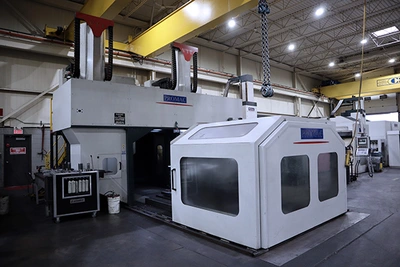

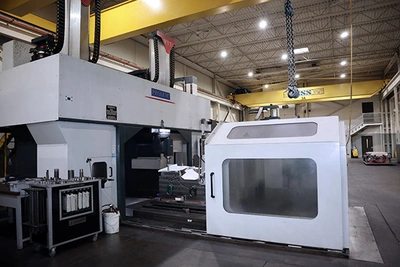

USED 2009 PROMAC ZEPHYR VTT 30

Used Promac Zephyr VTT 30. This pre-owned Bridge Type Mill is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Promac Bridge Type Mill we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

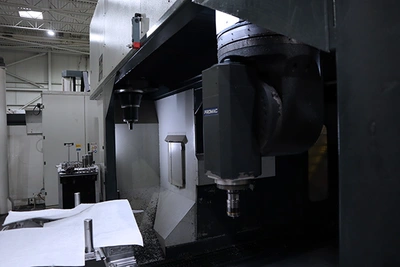

Spindle 1, Speed: 20,000 RPM
C axis: +/- 360 deg.

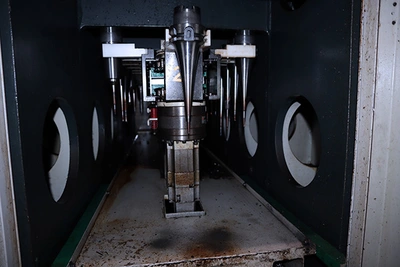

Number or Tool Changers: 2
Power: 73HP
Taper: HSK 100
Torque: 830 Nm

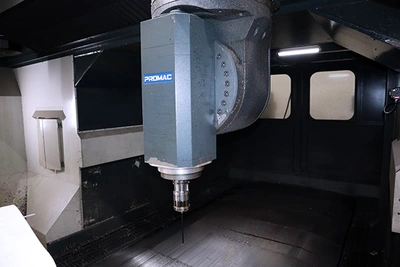

Spindle 2, Speed: 6000 RPM
Max Power: 40HP
Spindle Taper: HSK 63A
Spindle Torque: 85Nm
Longitudinal (X): 137"
Spindle Speed Roughing Head HSK 100: 8000 RPM
Spindle Speed 5 Axis Head HSK 63: 20000 RPM
Cross Travel Ram (2) Y: 106"
Cross Travel Ram (1) Y: 106"
Max Table Load: 55,000 Lbs.

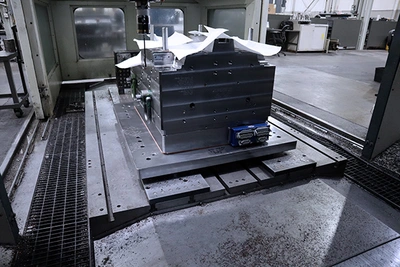

Table Size: 118" x 79"
Spindle Nose to Table: 47"
Distance Between Columns: 110"
Vertical Travel of Ram: 47"

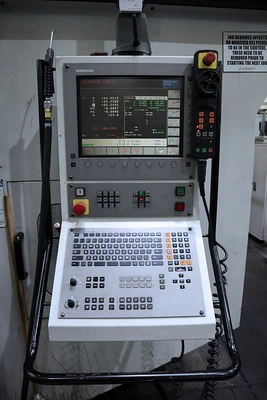

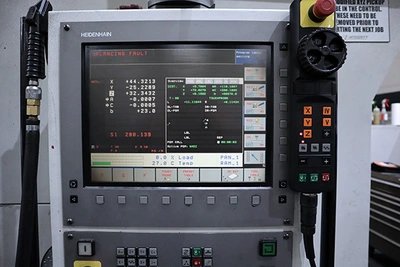

Heidenhain iTNC 530 CNC Control

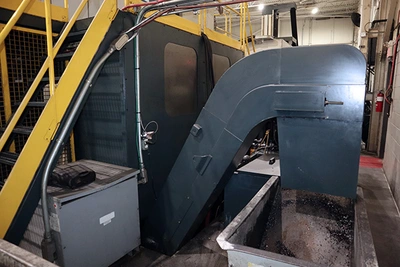

(2) Full Length Chip Conveyors

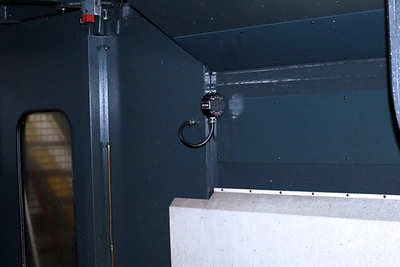

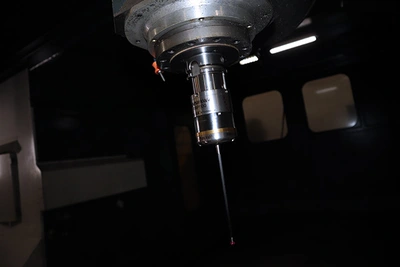

Probe Reader with Software

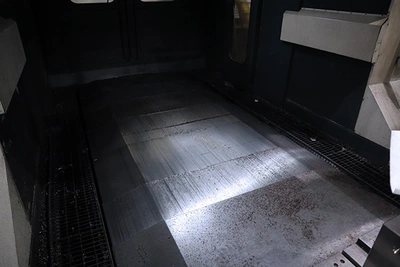

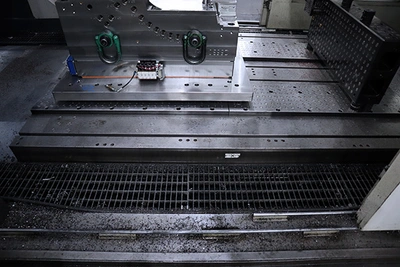

T-Slotted Table
Sliding Door Enclosure
Remote Jog Handle All Axes

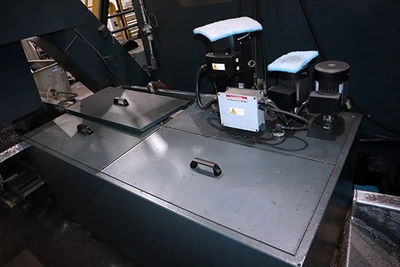

Chiller Units
400 Volt 60 Hz Electrics
