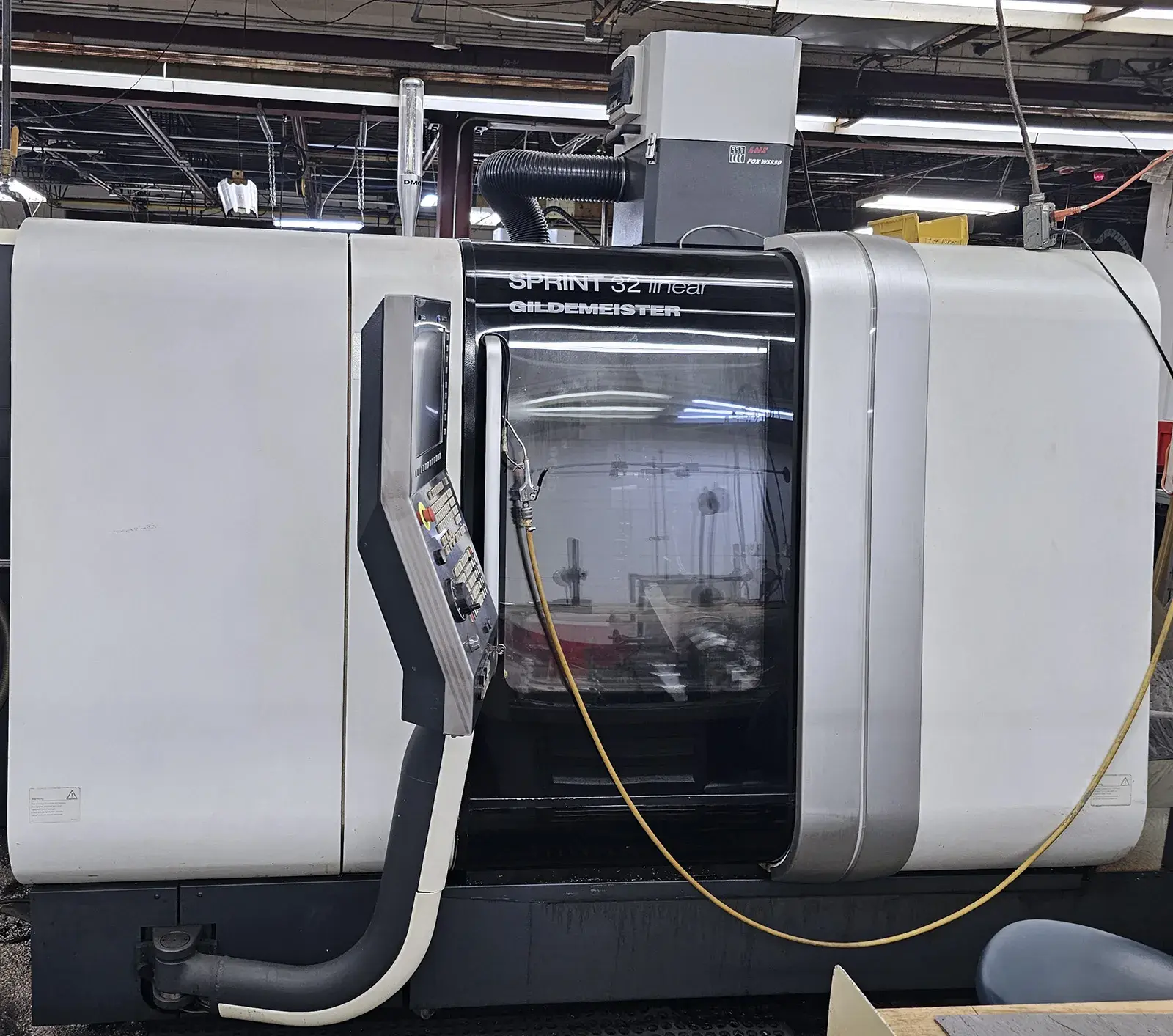

USED 2011 DMG GILDEMEISTER SPRINT 32/8 LINEAR

High Precision and speed from linear drives

Max Bar Diameter: 33 (36) mm
Max Speed: 8.000 rpm
Nominal Power: S1 5,5 kW
Counter spindle Max bar diameter: 38 mm
Counter spindle Max speed: 8.000 rpm
Counter spindle Nominal Power: S1 5,5 kW
Stroke X1: 65 mm
Rapid traverse X1: 30 m/min
Acceleration X1: 10 m/s2
Stroke Z1: 120 mm
Rapid traverse Z1: 30 m/min
Acceleration Z1: 5 m/s2
Stroke Y1: 350 mm
Rapid traverse Y1: 30 m/min
Acceleration Y1: 5 m/s2
Stroke X2: 265 mm
Rapid traverse X2: 18 m/min
Acceleration X2: 5 m/s2
Stroke Z2: 320 mm
Rapid traverse Z2: 30 m/min
Acceleration Z2: 5 m/s2
Stroke Y2: 326 mm
Rapid traverse Y2: 30 m/min
Acceleration Y2: 5 m/s2
Number of fixed tools for internal machining: 4+4
Number of fixed tools for external machining: 9
Number of rotating tools: 8
Max Speed of Driven Tools: 5.000 rpm
Tank Capacity: Approx. 520 l

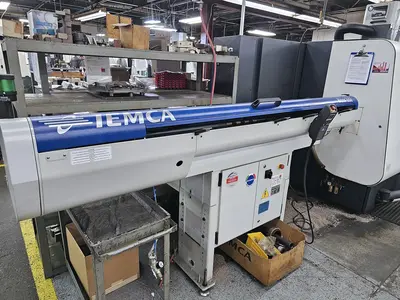

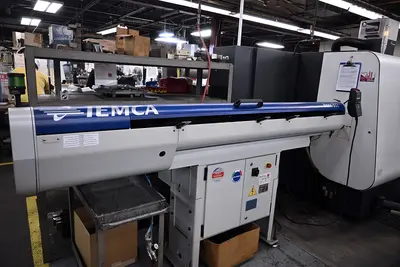

Imeca Mini Boss 332 barloader

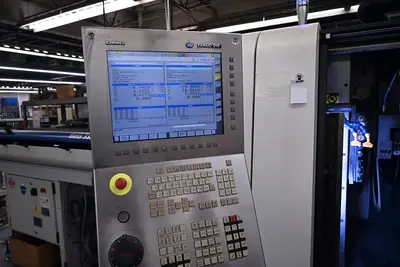

Fanuc 310 Control
Chip Conveyor
Y-Axis available on main and sub spindle
-collet application for main and counter spindle

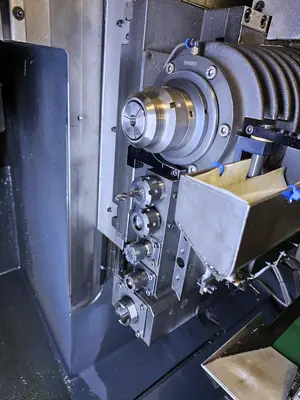

-6 position 16x16 tool holder for slide 1
-4 driven tools on slide 1 with junction ESX20
-C-axis for main and counter spindle
-drive for rotating tools slide 2
- 4 driven tools on slide 1 with junction ESX 20
-4 pos. tool holder diam. 32mm for slide 2
-pneumatic ejector and unloading system with belt
-pneumatic cleaning system for counter spindle collet
-mechanical preparation for oil mist filter
-electrical and software preparation for bar loader
-angular synchronism between main and counter spindle
-2 additional on/off outputs (4 M-functions)
-automatic shut down
-polygonal turning software
-constant cutting speed and rigid tapping
