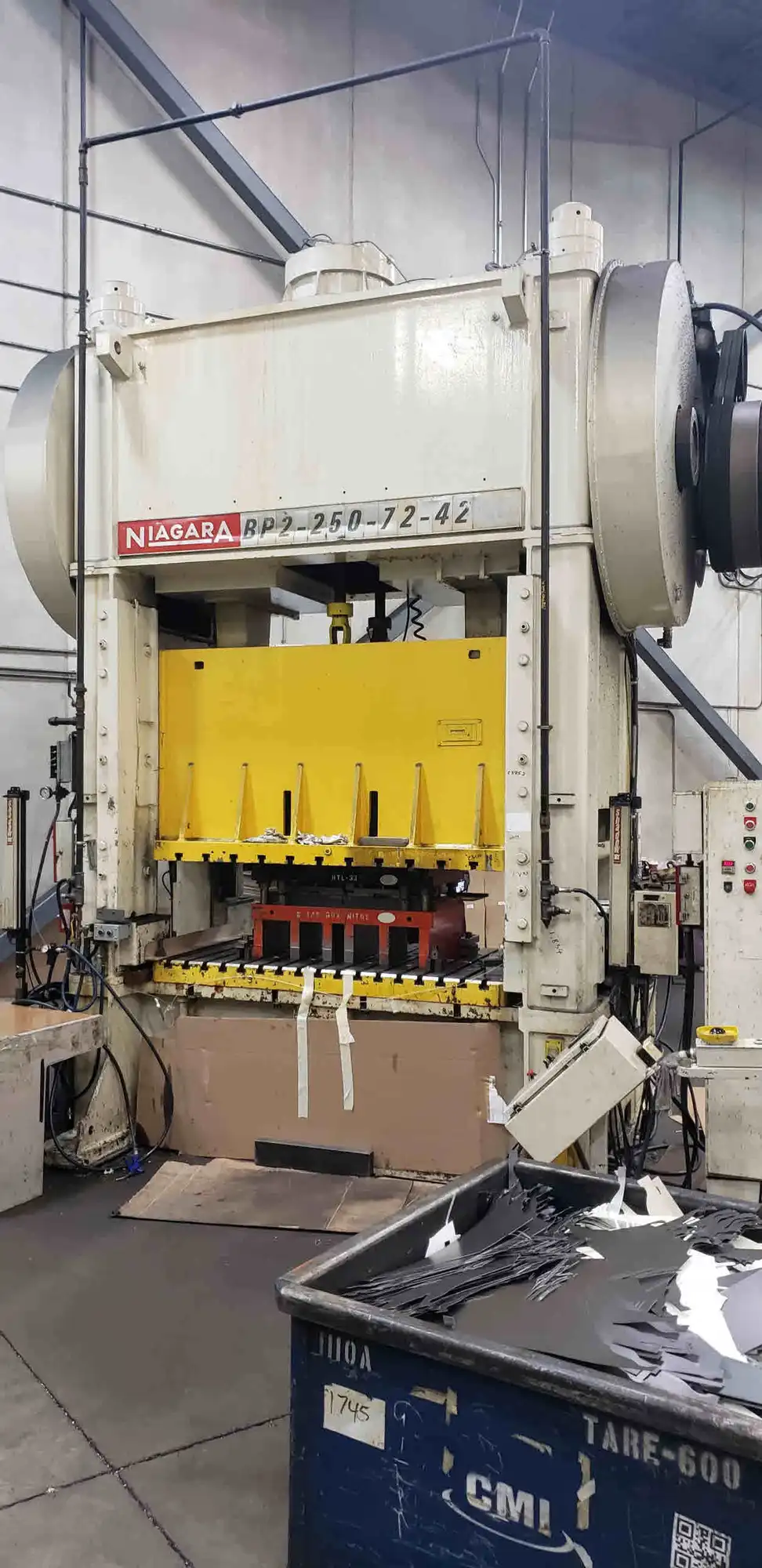

Model……………………………………...BP2-250-72-42
Tonnage…………………………………..250 Ton
Bed Size…………………………………..72”L/R x 42”F/B
Ram Size………………………………….72”L/R x 42”F/B
Stroke………………………………………8”
Shut Height……………………………….19.75”
Adjustment………………………………..10.75”
Strokes Per Minute……………………...75 SPM
Main Motor………………………………..40 HP
Electrics……………………………………575V/3PH/60HZ
Made In…………………………………….Canada
Approximate Weight…………………….75,000 LBS
Approximate Overall Dimension……...160”L x 107”W x 108”H
Equipped With:
Air Clutch Mechanical Straight Side Punch Press, Palm Buttons, Push Buttons,
Shadow VI Light Curtains, Windows, Floor Standing, Video Available.
| Type of Press | Mechanical | Mechanical |
| Tonnage | 250 T | 226.796 t |
| Bolster (LR) | 72" | 1,828.8 mm |
| Bolster (FB) | 42" | 1,066.8 mm |
| Stroke | 8" | 203.2 mm |
| Shut Height | 19.75" | 501.65 mm |
| Max SPM | 75 spm | 75 strokes/min. |
| Ram (FB) | 42" | 1,066.8 mm |
| Ram (LR) | 72" | 1,828.8 mm |
| Crank (Single/Double) | Double | Double |
| Slide Adjustment | 10.75" | 273.05 mm |
| Dimensions | 160"L x 107"W x 108"H | 160"L x 107"W x 108"H |
| Weight | 75000 LBS | 75000 LBS |
Model……………………………………...BP2-250-72-42
Tonnage…………………………………..250 Ton
Bed Size…………………………………..72”L/R x 42”F/B
Ram Size………………………………….72”L/R x 42”F/B
Stroke………………………………………8”
Shut Height……………………………….19.75”
Adjustment………………………………..10.75”
Strokes Per Minute……………………...75 SPM
Main Motor………………………………..40 HP
Electrics……………………………………575V/3PH/60HZ
Made In…………………………………….Canada
Approximate Weight…………………….75,000 LBS
Approximate Overall Dimension……...160”L x 107”W x 108”H
Equipped With:
Air Clutch Mechanical Straight Side Punch Press, Palm Buttons, Push Buttons,
Shadow VI Light Curtains, Windows, Floor Standing, Video Available
