Low hours| Under Power| Over $1M New Price

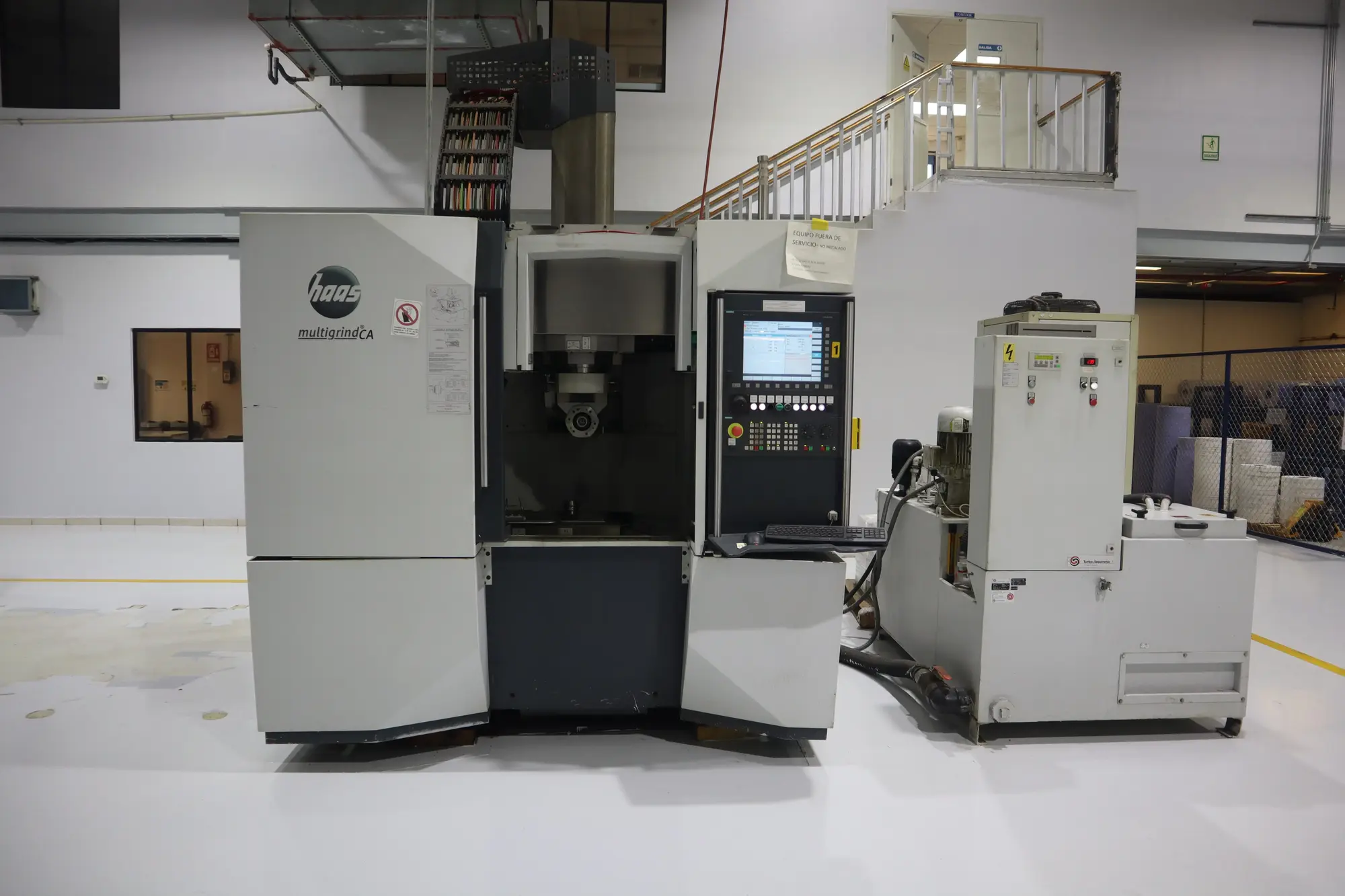

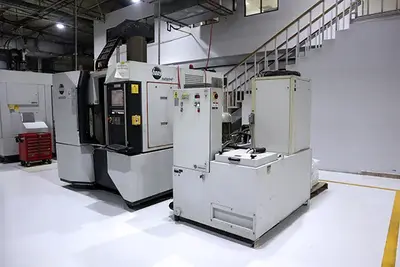

Used Haas Multigrind CA. This pre-owned Grinding Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Haas Multigrind Grinding Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Control: Sinumerik 840sl
Available axis: X, Y, Z, A, C, X3, Z1
Spindles: S1 & S2
Dresser: 1 dresser mounted in X axis.
Tool Changer: C1 & C2 can be loaded with grinding wheels, end mills,
Probing: The machine has 1 probing unit (Renishaw)
X-Axis (Longitudinal) Travel: 24.8”
Y-Axis (Cross) Travel: 13,58”
Z-Axis Vertical) Travel: 16,92”
Main Spindle Motor: 40 HP.
Weight: 20,950 Lbs.
C-Axis Travel: 320 Degrees
Workpiece Diameter: 10.23”
Working Length: 21.65”
Footprint: 94.50” x 94.50”
Turbo Separator Type: KSA 1000 Coolant
System/Filtration System
Turret Positions: 8
LTA Industrial Air Cleaner
Parts Conveyor System
Tailstock
Program Warm-up Switch
Open Roof Cover Switch
Work Light
Setup Mode Switch
Semi-Automatic Switch
Test Stop Safety Switch
Request Main Door Switch
Spindle Clamp/Unclamp Switch
