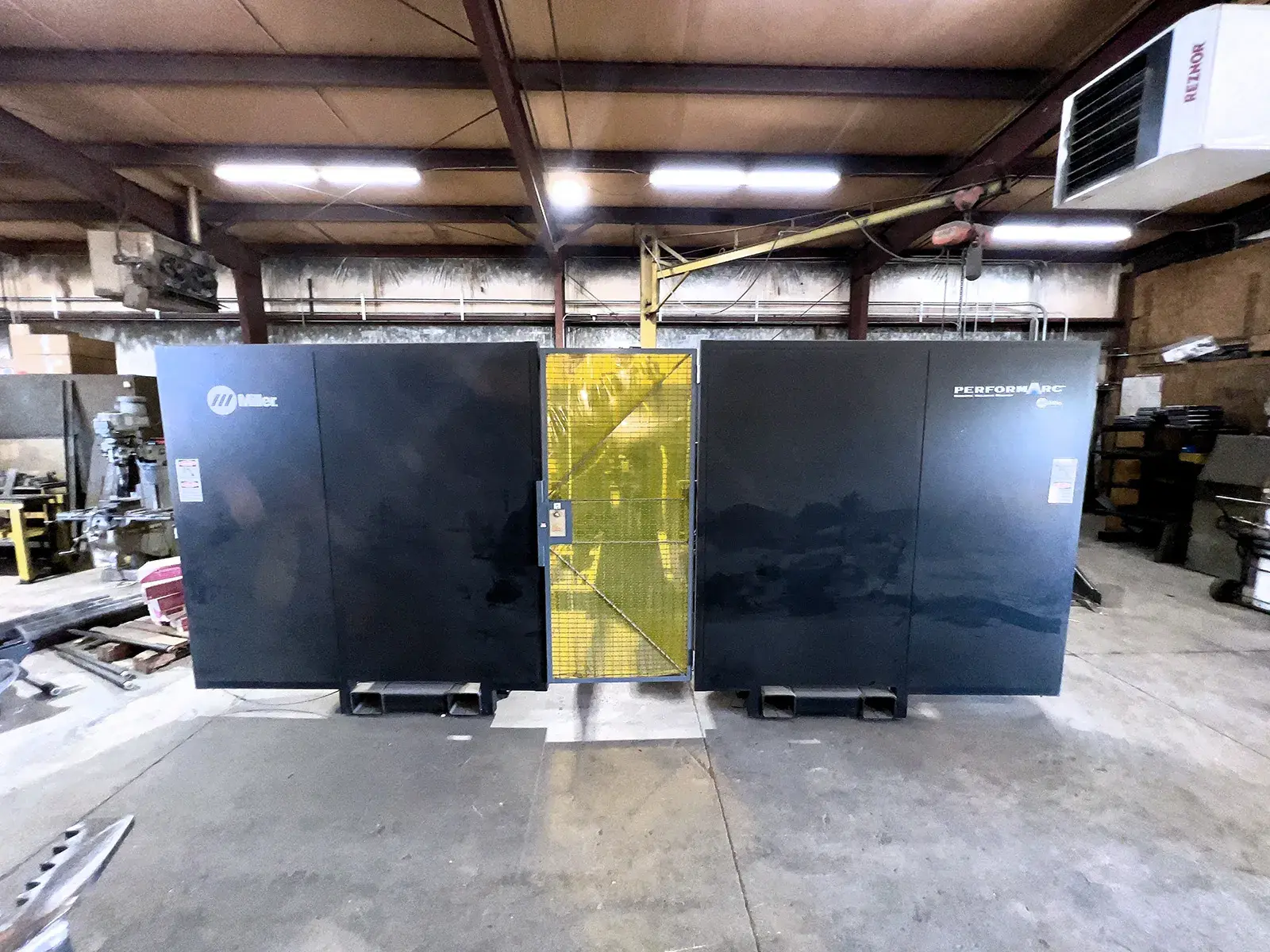

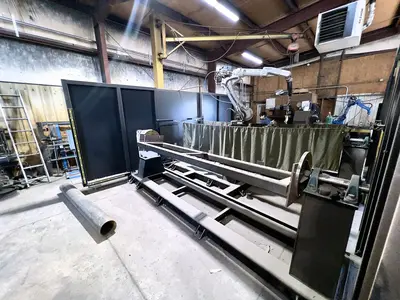

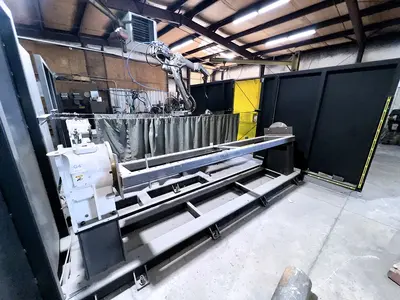

USED 2023 MILLER PA-2200SS-70"

Used Miller PA-2200SS-70". This pre-owned Welding Cell is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Miller Welding Cell we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Cell Width: 200.75"
Cell Depth: 196.5"
Cell Height: 90"
Rotation Height: 36.5"
Rotation Diameter: 60"
Headstock-Tailstock Span: 120"
Distance from Rotation to Light Curtain: 17.5"
Light Curtain Opening: 152.5"
Robot Height from Floor: 43.5"
Robot Distance from CL of Rotation: 45.25"
Positioner CL to Positioner CL: 92.5"
Robot CL to Positioner Face Plate: 90.5"
Controls Area Width: 90"
Controls Area Depth: 35"
Payload: 2200LB Per Side

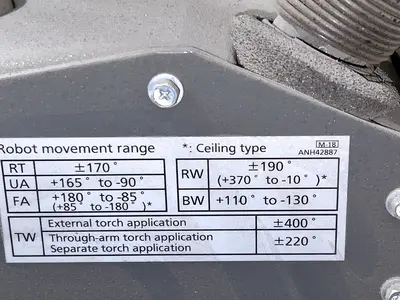

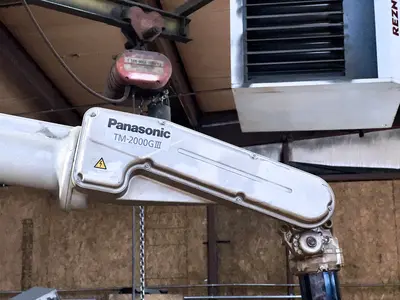

Panasonic TM-2000G III 6KG Arc Welding Robot

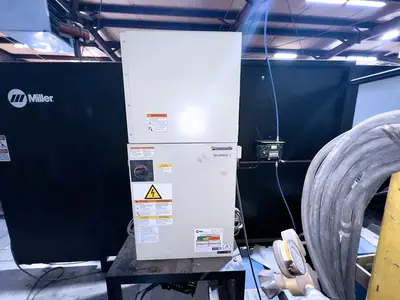

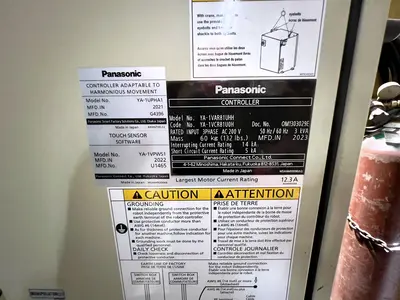

Panasonic 64 Bit Controller
Auto-Axcess Inverter Arc Welder
Miller 4 Drive Roll Wire Feeder

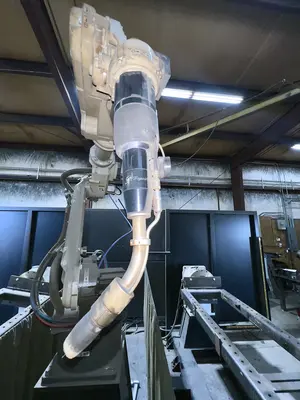

Tregakiss 500 Air Cooled Welding Torch
High Speed Servo Positioner Type II 500 KG
Miller Designer and Manufactured Total Productivity System

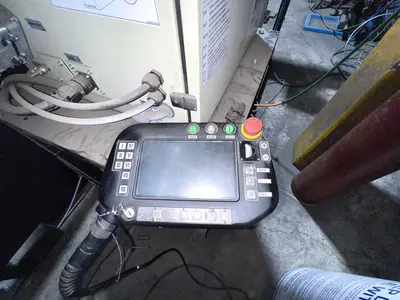

Teach Pendant with 7" Wide Color LCD

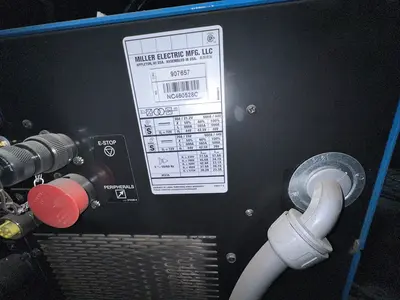

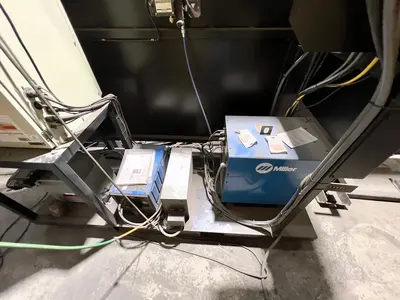

Miller Auto Continuum 500 Digital Welder
Step Down Transformer
Panasonic Servo Positioners

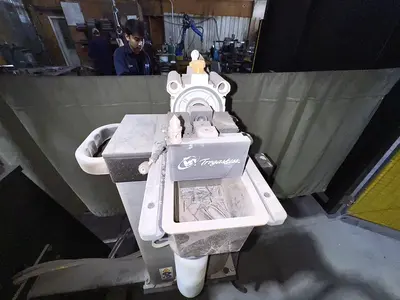

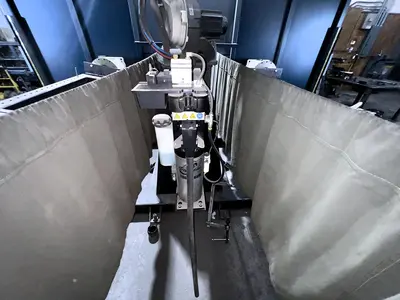

Tregakiss Torch Reamer Sprayer and Wire Cutter
Wire Brake Kit

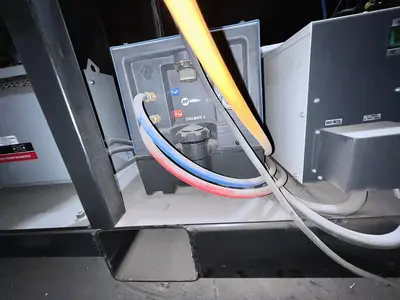

Coolmate 3 and Water Flow Switch
ICE Torch Upgrade
Harmony Software
Touch Sensing Software
Through Arc Sensing
