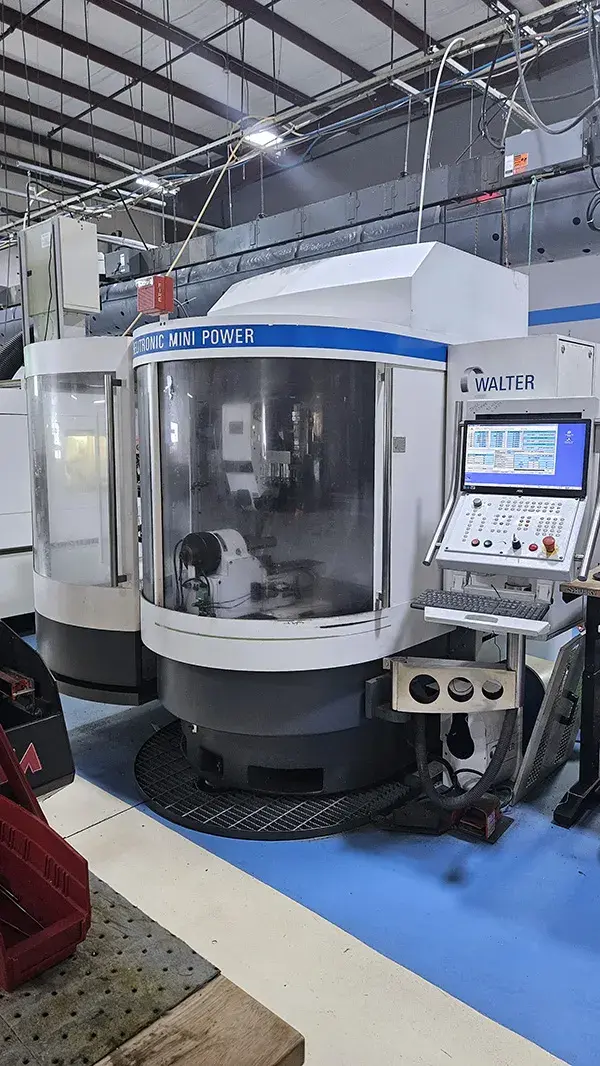

Used Walter Helitronic Mini. This pre-owned CNC Grinder is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Walter CNC Grinder we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
X-Axis Travel: 320 mm
Y-Axis Travel: 200 mm
Z-Axis Travel: 470 mm
Rapid traverse speed X, Y, Z max: 15 m/min
C axis: ± 200°
Linear resolution : 0.0001 mm
Radial resolution: 0.0001°
Max. grinding wheel diameter : 150 mm
Grinding Spindle Speed: 0 – 10,500 rpm
Maximum Tool Diameter: 100 MM
Max. Workpiece Length: 255 mm
Max. workpiece length, end face grinding: 185 mm
Max. Workpiece Weight: 30 kg
Min. tool diameter: 1 mm
High pressure coolant
ATC

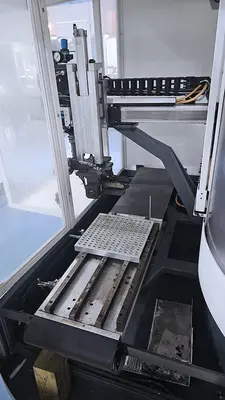

Pallet conveyer
New Y axis motor
New spindle motor and belt
Hydraulic steady rest
Fire suppression

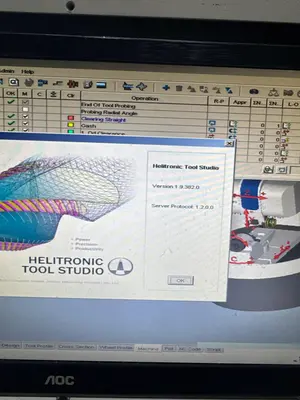

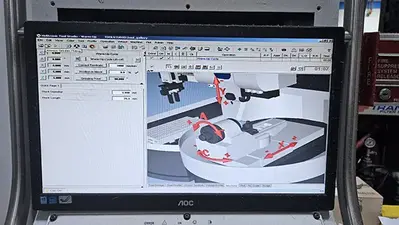

Has upgraded software with tool studio
W25 collet chuck
W20 collet chuck
4 wheel pack holders
Alignment bar and disc included
