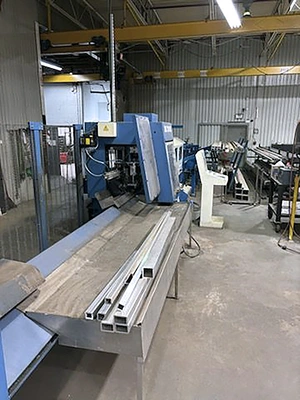

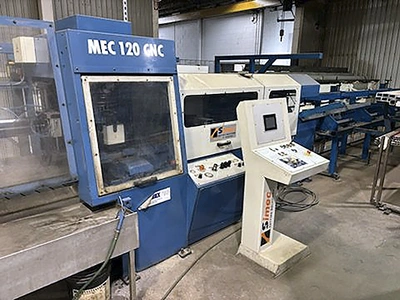

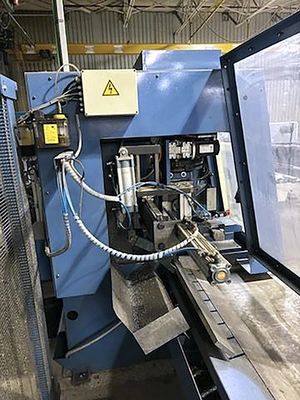

USED 2019 SIMEC MEC 120 CNC

-Straight or angle cut of tubes from minimum ø 10mm to max ø 100mm (0.394" - 3.94")

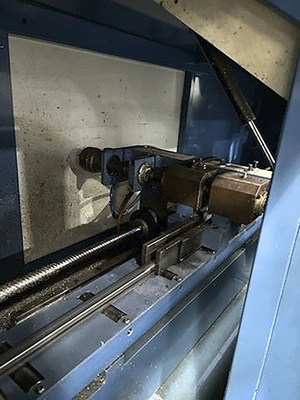

- Step by step feeding of the gripper: stroke 2000mm (78.74") through ball screw and Motor Brushless
- Automatic positioning of the feeding gripper length

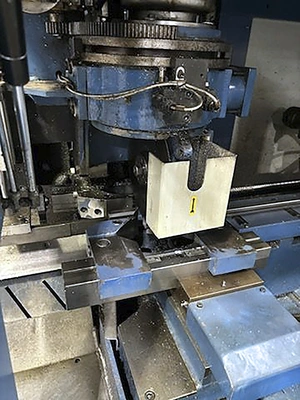

- Quick release vice jaws for rapid tooling changes
- Double clamping vices
on both sides of the saw blade
- Hydraulic clamping vice and gripper
- Vertical cutting descending from above saw head mounted on prismatic guides tempered and ground
- Discharge systems with unloader cylinder plus deflector

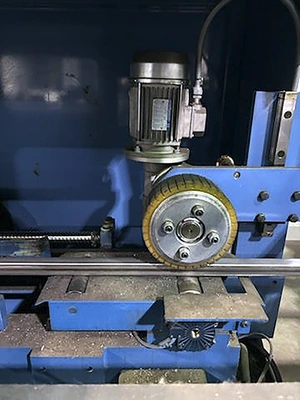

Auto Feed

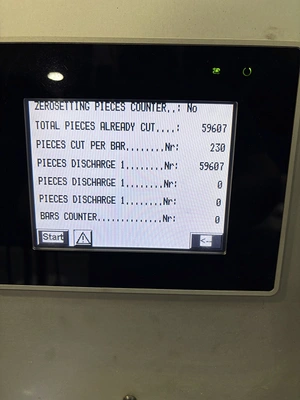

CNC Control
Tooling
Exit System
Less than 1000 hours total of usage
Round Tubes: 10mm to 100mm (0.394" - 3.94")
Square Tube: 10 x 10mm to 90 x 90mm (0.394" x 0.394" to 3.54" x 3.54")
Rectangular: 10 x 10mm to 120 x 80mm (0.394" x 0.394" to 4.7" x 3.15")
Bar Size: 10mm to 40mm (0.394" - 1.58")
Minimum cut length: 10mm (0.394")
Maximum Cutting Length: 3000mm (up to 118")
Cutting tolerance: +/- 0.2mm (0.008")
Angle cutting: +/-60°
Blade Diameter: Ø250mm to Ø350mm (9.84" - 13.78")
Cutting Speed: 30rpm to 3000rpm, depending on the material
Feeding speed of the gripper: 1.5m/s (4.9 ft/sec)
Blade Motor: 2.25/ 3kw (or 4kw with inverter)
Cutting Height: 900mm (35.4")
Maximum vice opening: 130mm (5.12")
