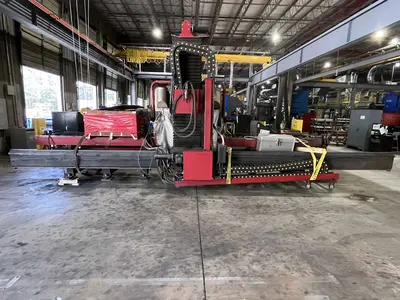

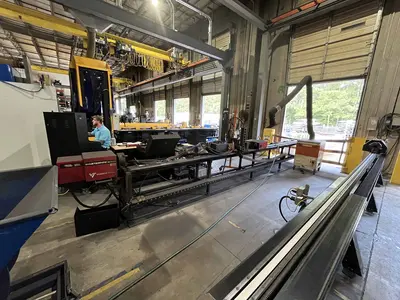

USED 2015 VERNON MPMP 2 AXES

Used Vernon MPMP 2 AXES. This pre-owned Pipe Cutter is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Vernon Pipe Cutter we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Capacity: 1" - 8" OD production capacity
Max Load Capacity: 100 lbs per ft to a maximum load of 1000lbs
Cut Length: 5 ft. Machine bed assembly for total of 4.5 ft

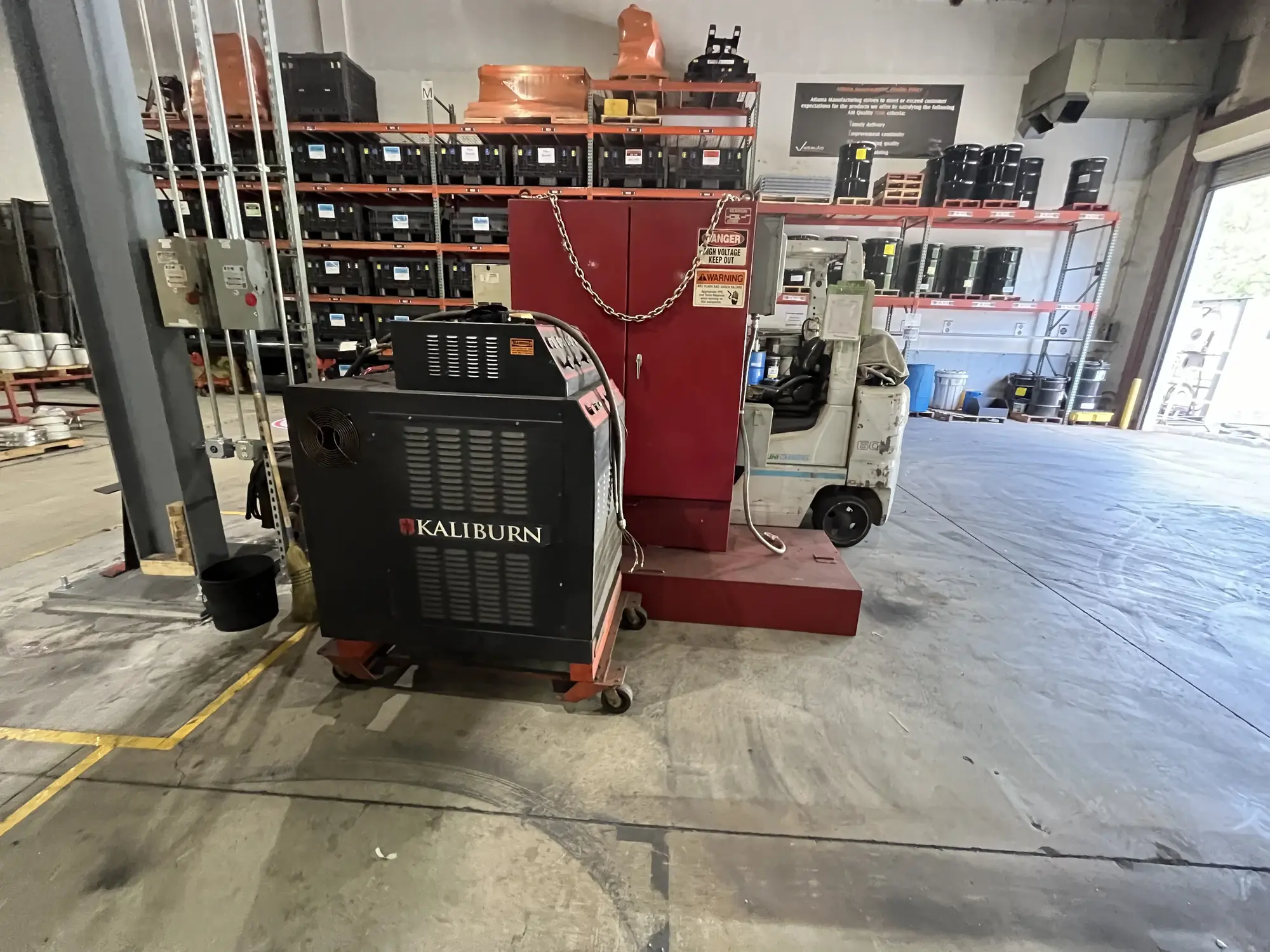

Hypertherm Powermax 85 Power Supply
WinMPM Desktop Software Program
Arc Voltage Height Control with Magnetic Breakaway
Includes:
50' Motor Cable
Control Box
Precision Lifter Station with Smart Motor
*Fully integrated with Vernon Tool Master Pipe Mini Profiler
Power Box/System controller containing motion control system to consist of P.C. compatible microprocessor with serial USB and Ethernet communication ports
Self centering 3-jaw chuck included
X/Y assembly on precision machined hardened and polished
ways driven by rack & pinion drive
To control tube rotation (x-axis) and longitudinal movement (y-axis)
Self centering 3-jaw chuck included
Torch mounting assembly with manually adjustable torch height
manual bevel angle and pivot point
Qty. 2 - Pipe supports with ball transfers to allow longitudinal
and rotating pipe motion
