X-axis: 11"
Y-Axis: 11"
Z-axis: 11"

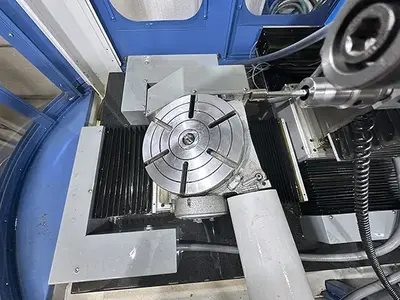

C-Axis (Rotary): 230°
Work-head RPM: 400 RPM Maximum
spindle power: 5HP, 220V AC 3 phase
Spindle RPM: 3,500, variable control up to 10.000 RPM
Control/Servo Resolution: 0.000025" 0.000025" 0.000025" 0.000025/rev. 0.001°

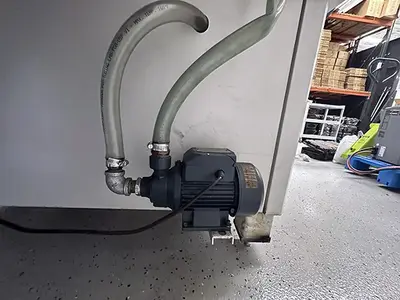

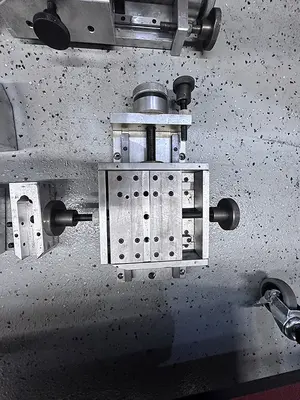

30 Gallon Coolant Tank w/ 1/2 HP Pump 3D Touch Probe For Tool Regrinding Air collet Closer Built-in complete tool grinding macro-programs Automatic Probing Option Lubrication System (1) Workpiece Vise Operator Manuals Shipping Dimensions: 72" x 60" x 78" Shipping Weight: Approx. 4
000 LBS.
