USED 2008 AMERA SEIKI VT600M

Milling| Live Tooling

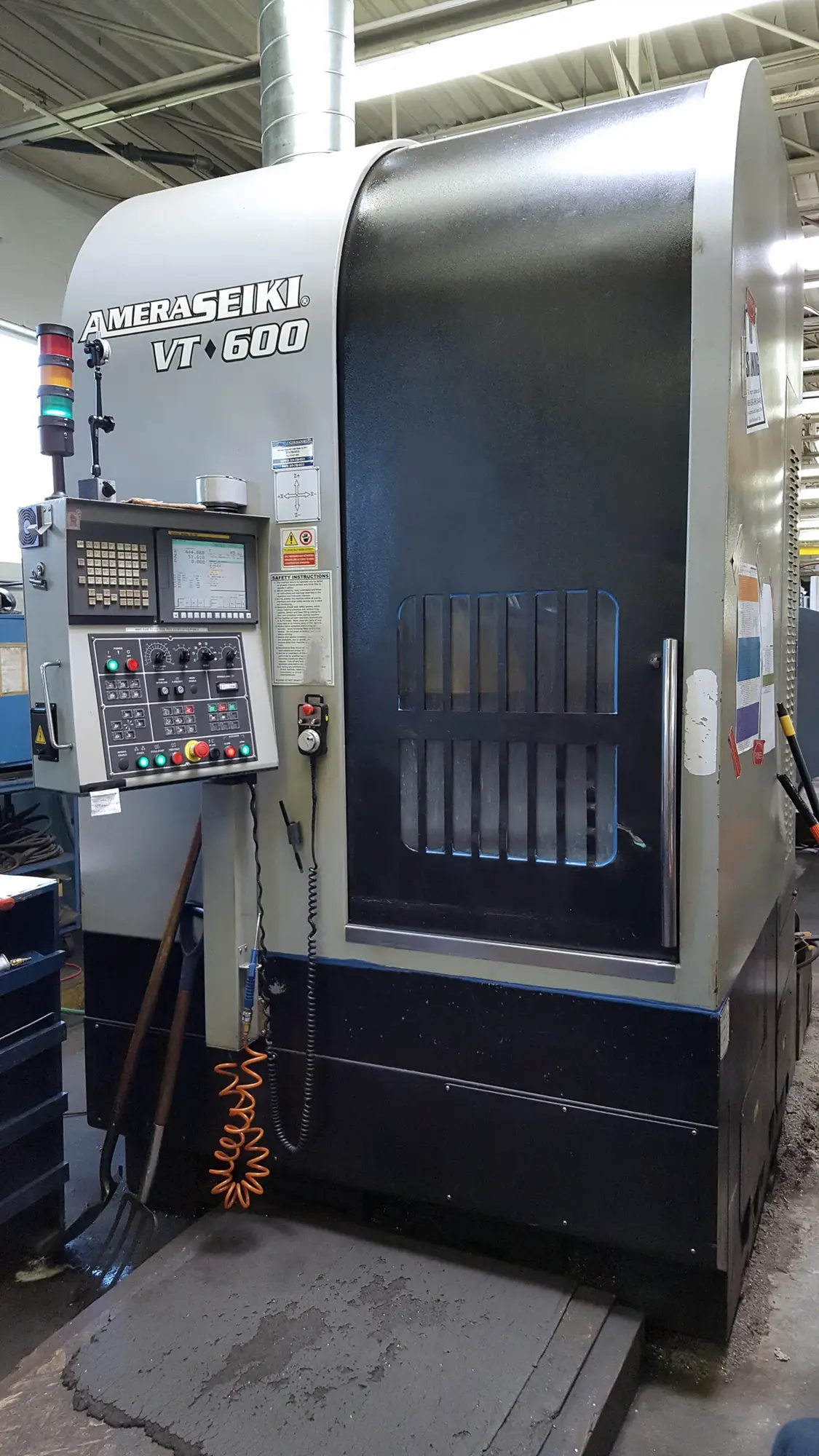

The Amera Seiki VT600M Vertical Turret Lathe (2008) with Fanuc Oi-TC control is a heavy-duty CNC machine designed for high-precision turning, boring, and facing of large, complex parts. Commonly used in aerospace, energy, and automotive sectors, it efficiently machines components such as engine blocks, turbine blades, gears, and casings. Ideal for high-volume, high-precision manufacturing in demanding industries.

Chuck Diameter: 24”
Table Diameter: 23.63"
Maximum Swing : 29.50”
Maximum Turning Diameter: 25.59”
Maximum Turning Height: 23.62”
Spindle Nose: A2-11
Spindle Speed: 20~2000 RPM
Maximum Spindle Torque: (30min) 3,100 ft.lbs.
X-Axis Travel: -1.96”, +17.72”
Z-Axis Travel: 25.59”
X-Axis Rapid Traverse: 787.4”/ Min
Z-Axis Rapid Traverse: 787.4” / Min
Spindle Motor: 50HP
Number of Tool Stations: 12
Tool Size: 1.25”
Machine Length x Width: 137” x 70”
Machine height: 138.5”
Machine Weight: 19,841 lbs
Power Requirements: 48 KVA

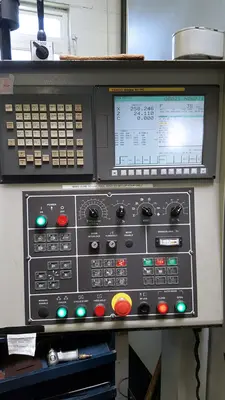

Fanuc OiTC Control
3-Jaw Power Chuck

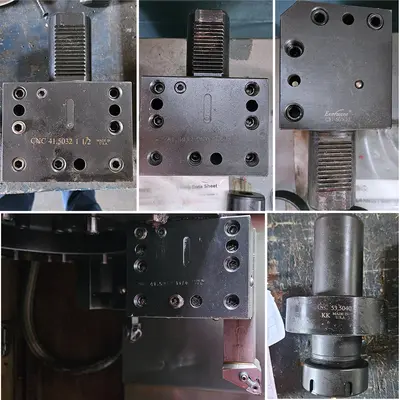

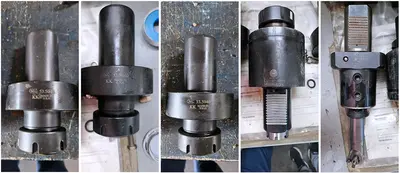

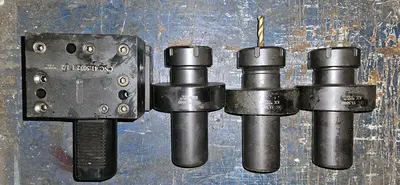

(4) Turning Tool Holders & (3) Live Tool Holders
Coolant System
Hydraulic Unit
Chip Conveyor

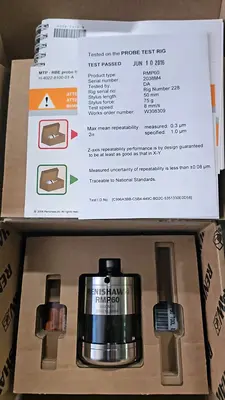

Renishaw RMP60 Probe
