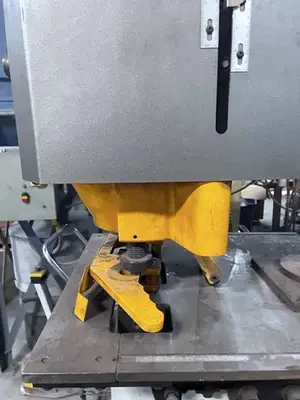

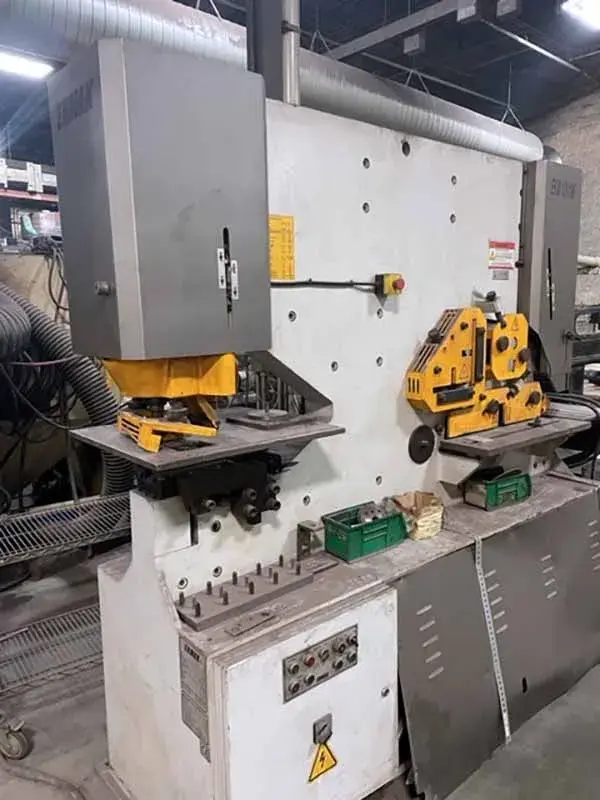

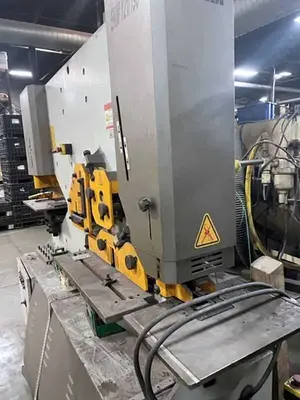

USED 2011 ERMAK EKM 121-198
Overview
Used Ermak EKM 121-198. This pre-owned Ironworker is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Ermak Ironworker we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

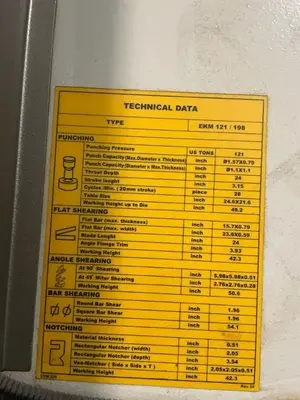

Specs
Weight: 8335 Lbs
Motor Power: 15HP
Voltage: 480
IP: 54
Oil Capacity: 21.1
Width: 76.3″
Length: 99.4″
Height: 86.4″
Punching Pressure: 121 Tons
Punch Capacity: (DiameterxMax.Thickness) 1.1×1.1″
Max Punch Capacity: (Max.Diameter x Thickness) 1.57×0.79
Throat Depth: 24″
Stroke lenght: 3.15″
Cycles/Min. (20mm Stroke): 28
Table Size: 24.6X21.6″
Working height up to Die: 49.2″
Flat Bar: (Max.width) 15.7X0.79″
Flat Bar (Max. width): 3.6×0.59″
Blade Length: 24″
Angle Flange Trim: 3,93″
Working Height: 42.3″

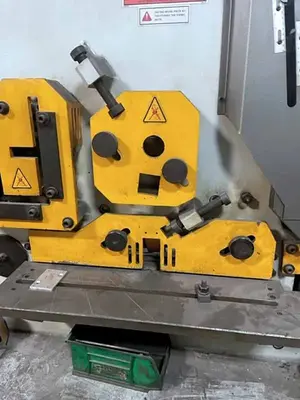

At 90 degrees Shearing: 5.98×5.98×0.51
At 45degrees Miter Shearing: 2.76×2.76×0.28
---------- Angle Shearing: ----------: Working Height: 50.6″
Round Bar Shear: 1.96″
Square Bar Shear: 1.96″
Working Height Bar Shearing: 54.1″
--------- Notching ---------
Material Thickness: 0.51
Rectangular Notcher (Width): 2.05″
Rectangular Notcher (Depth): 3.54″
Vee-Notcher (Side x Side x T ): 2.05×2.05×0.51
Working Height Notching: 42.3″
Equipped With
Weight 8335 Lbs
Motor Power 15HP
Voltage 480
IP 54
Oil Capacity 21.1
Width 76.3″
Length 99.4″
Height 86.4″
Punching Pressure 121 Tons
Punch Capacity (DiameterxMax.Thickness) 1.1×1.1″
Max Punch Capacity (Max.Diameter x Thickness) 1.57×0.79
Throat Depth 24″
Stroke lenght 3.15″
Cycles/Min. (20mm Stroke) 28
Table Size 24.6X21.6″
Working height up to Die 49.2″
Flat Bar (Max.width) 15.7X0.79″
Flat Bar (Max. width) 3.6×0.59″
Blade Length 24″
Angle Flange Trim 3,93″
Working Height 42.3″
At 90 degrees Shearing 5.98×5.98×0.51
At 45degrees Miter Shearing 2.76×2.76×0.28
---------- Angle Shearing: ---------- Working Height: 50.6″
Round Bar Shear 1.96″
Square Bar Shear 1.96″
Working Height Bar Shearing 54.1″
--------- Notching ---------
Material Thickness 0.51
Rectangular Notcher (Width) 2.05″
Rectangular Notcher (Depth) 3.54″
Vee-Notcher (Side x Side x T ) 2.05×2.05×0.51
Working Height Notching 42.3″
