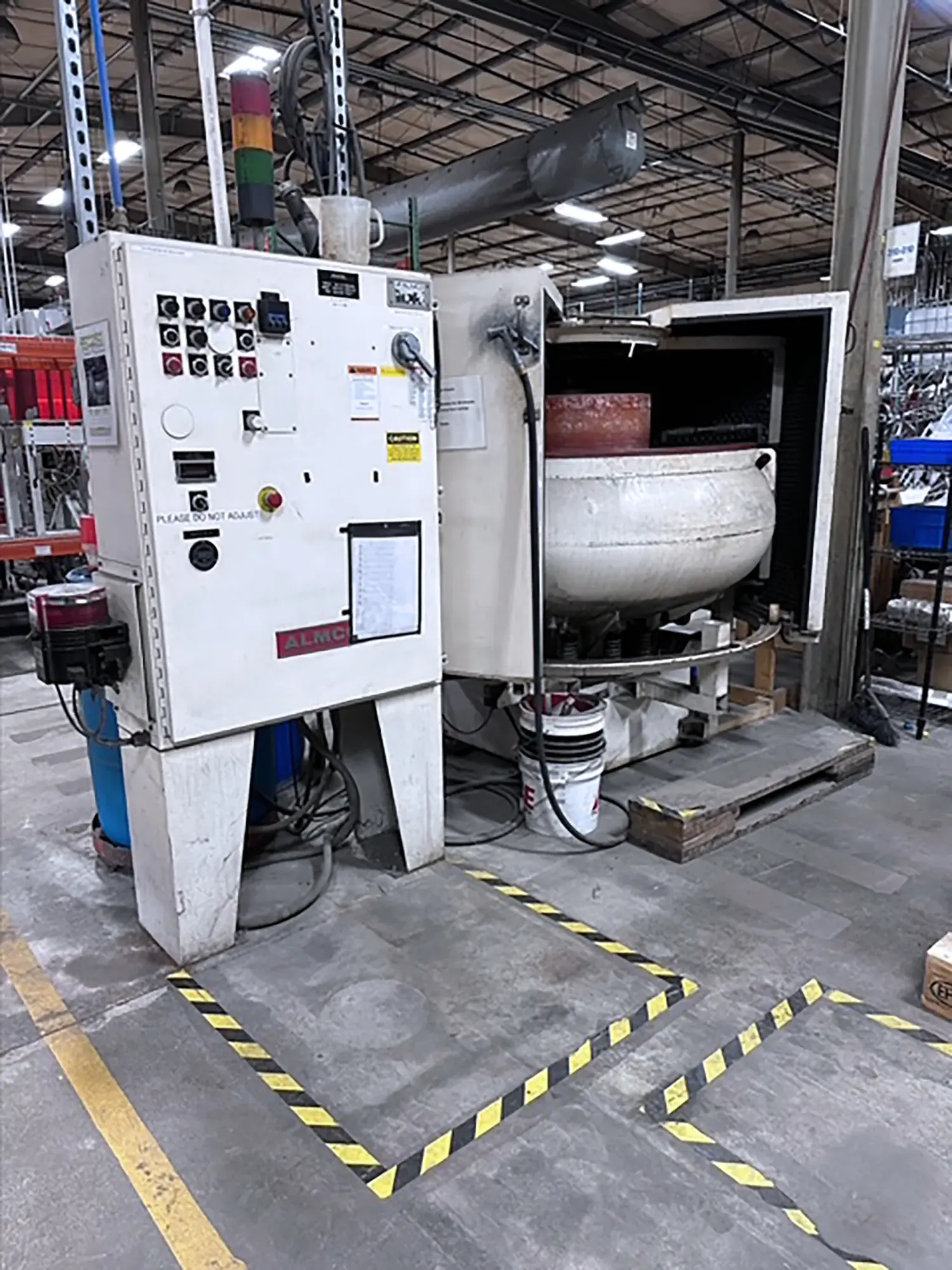

USED ALMCO OR-23V
Overview
Specs
Capacity: 23 cu. ft.
Length: 80" (including electrical control box)
Width: 66"
Height: 55"
Diameter: 66"
Blade Cross Section: 19" Dia.
Lining: 1" thick polyurethan (hot pour), 90 durometer

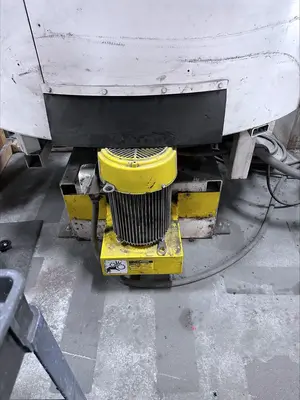

Power Unit
HP: 10 HP
1800 RPM
Ball Bearing Motor for 460 volts
3 Phase
60 cycle operation powered by an AC Variable Frequency Inverter
Pullet is connected by a V-belt to a companion sheave on the vibratory mechanism
Frequency of vibration is variable from 900 to 1400 cycles per minute
All moving drive components are well guarded for operator protection
**GENERAL DESCRIPTION **
Energy Efficient "OR" Series Machine is composed of the following basic components:
1. The Supporting Base and Framework
2. The Drive Unit

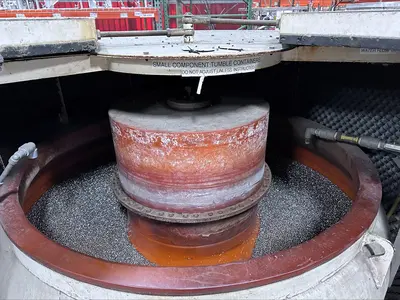

3. Almco's Natural Contour Molded Urethane Lined Tub
4. The Vertical Shaft Vibrator

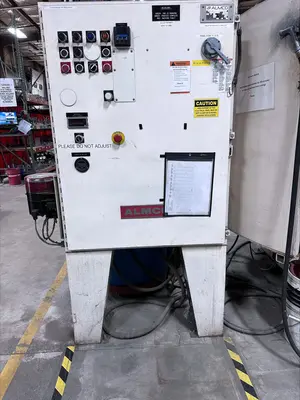

5. The Electrical Control Enclosure
Equipped With
INCLUDED FEATURES
Flowmeters
Elapsed Time Recorder

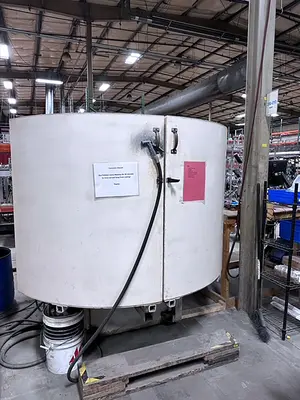

OR-23V Sound Hood
Automatic Lubrication System
Tachometer
Compartmentalized Divider Assembly
