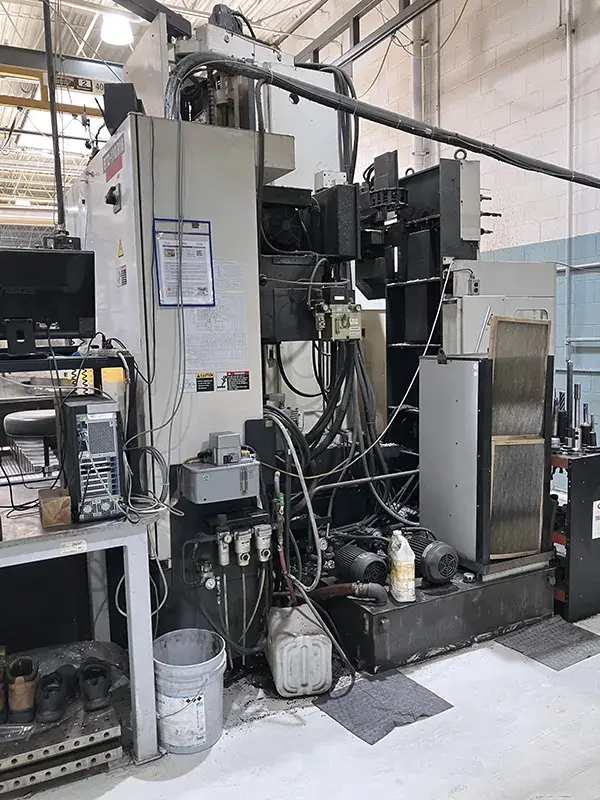

TOSHIBA BTD 110-R16

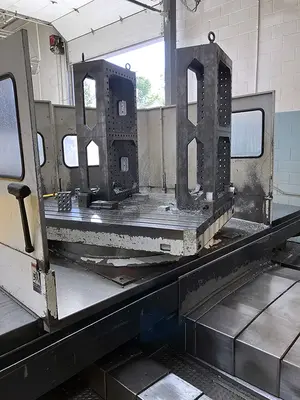

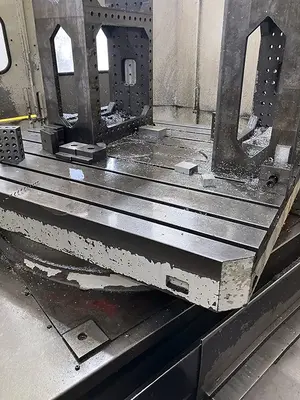

Rotary Table Size: 55" X 63"
Table Load: 22,000 LB.

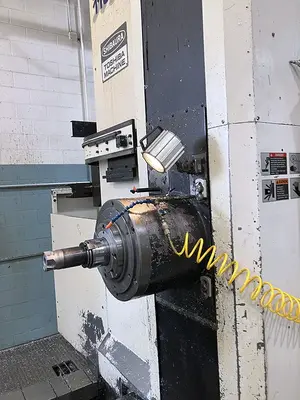

Spindle Diameter: 4.33"
Milling Spindle Diameter: 8.86"
Spindle Taper: CAT #50
X-Axis Travel: 78.8"
Y-Axis Travel: 59.1"
Z-Axis Travel: 57"
Spindle Motor: 40 HP DIRECT DRIVE
Spindle Speeds: 3000 RPM
SPINDLE TRAVEL-AXIS: 19.7"
RAPID TRAVERSE FEED RATE: 472 IPM
DEGREE ROTARY INDEX TABLE: .0001

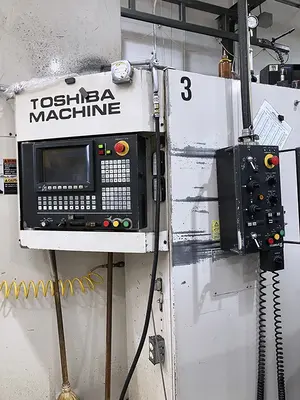

TOSNUC 888 32-BIT 4-AXIS CNC CONTROL
REMOTE CONTROL BUFFER
38 ATC TOOL CHANGER
SYNCHRONOUS TAPPING
CHIP CONVEYOR
COOLANT THROUGH SPINDLE
