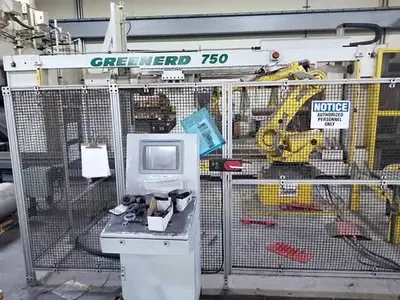

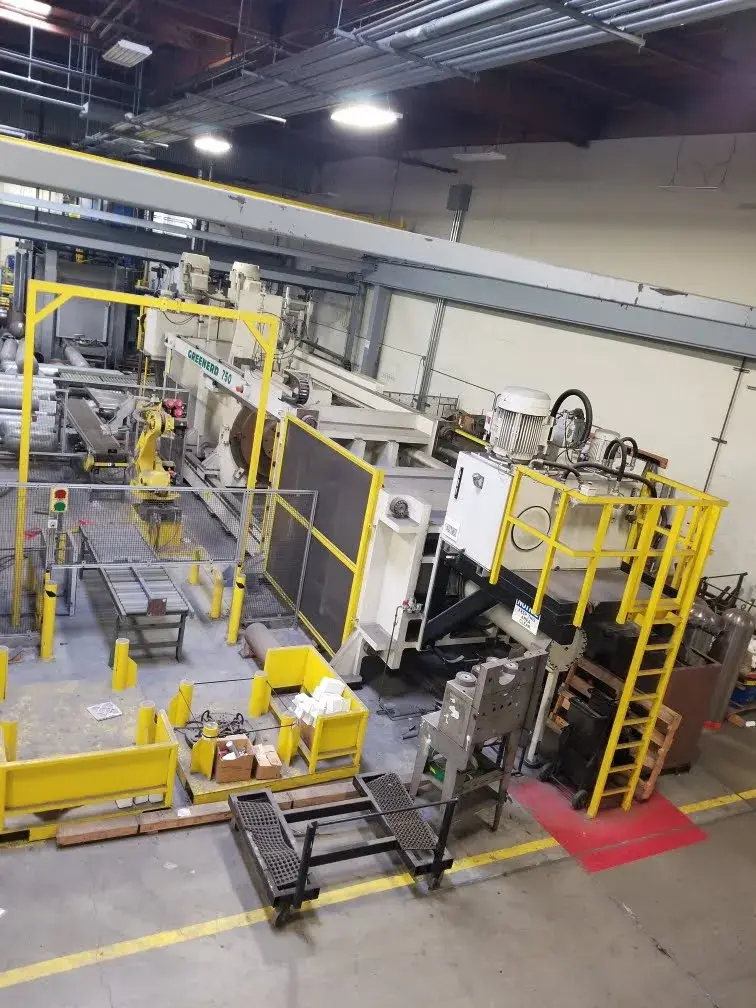

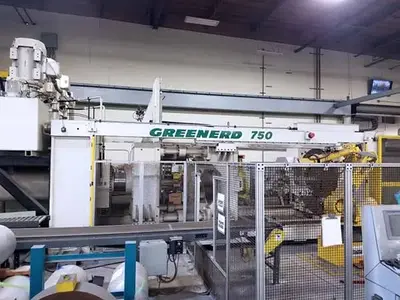

USED 2016 GREENERD 4H-750-113 X 113-68X6R
Overview
Used greenerd 4H-750-113 x 113-68X6R. This pre-owned Hydraulic Press is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this greenerd Hydraulic Press we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs
Approximate Machine Weight: 280000 LBS
Stroke: ADJUSTABLE TO MAXIMUM 104"
Daylight: MAXIMUM OPEN DISTANCE 180"
Ram Speed: 109 CLOSE/ADJUSTABLE FROM 6-61 PRESS SPEED/140 OPEN
Cylinder Diameter: 24"
Hydraulic System: 109 CLOSE/ADJUSTABLE FROM 6-61 PRESS SPEED/140 OPEN
Reservoir Capacity: 750 GAL MINIMUM
Motor Capacity: (3) 125 HP 1800 RPM MOTORS
Approximate Dimensions: 588" X 113" (RL X FB) X 112" HIGH
Cushion Force: ADJUSTABLE 70 TO 350 TONS
Cushion Stroke: ADJUSTABLE TO MAXIMUM 56"
Equipped With
DISTANCE REVERSAL
PRESSURE REVERSAL
PRE-SLOW DOWN CIRCUIT
ELECTRONIC PRESS CONTROL
CLOSED LOOP SPEED CONTROL
70-135 TON CUSHION (ADJUSTABLE) W/56? STROKE AND 69/113 IPM
WATER-COOLED HEAT EXCHANGER
ROBOT LOAD /UNLOAD SYSTEM AVAILABLE FOR AN ADDITIONAL PRICE UPON REQUEST
