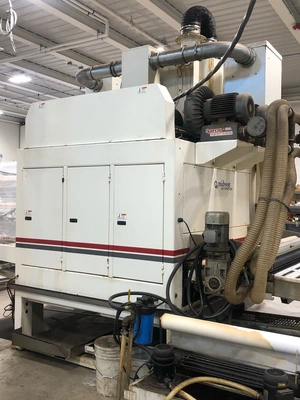

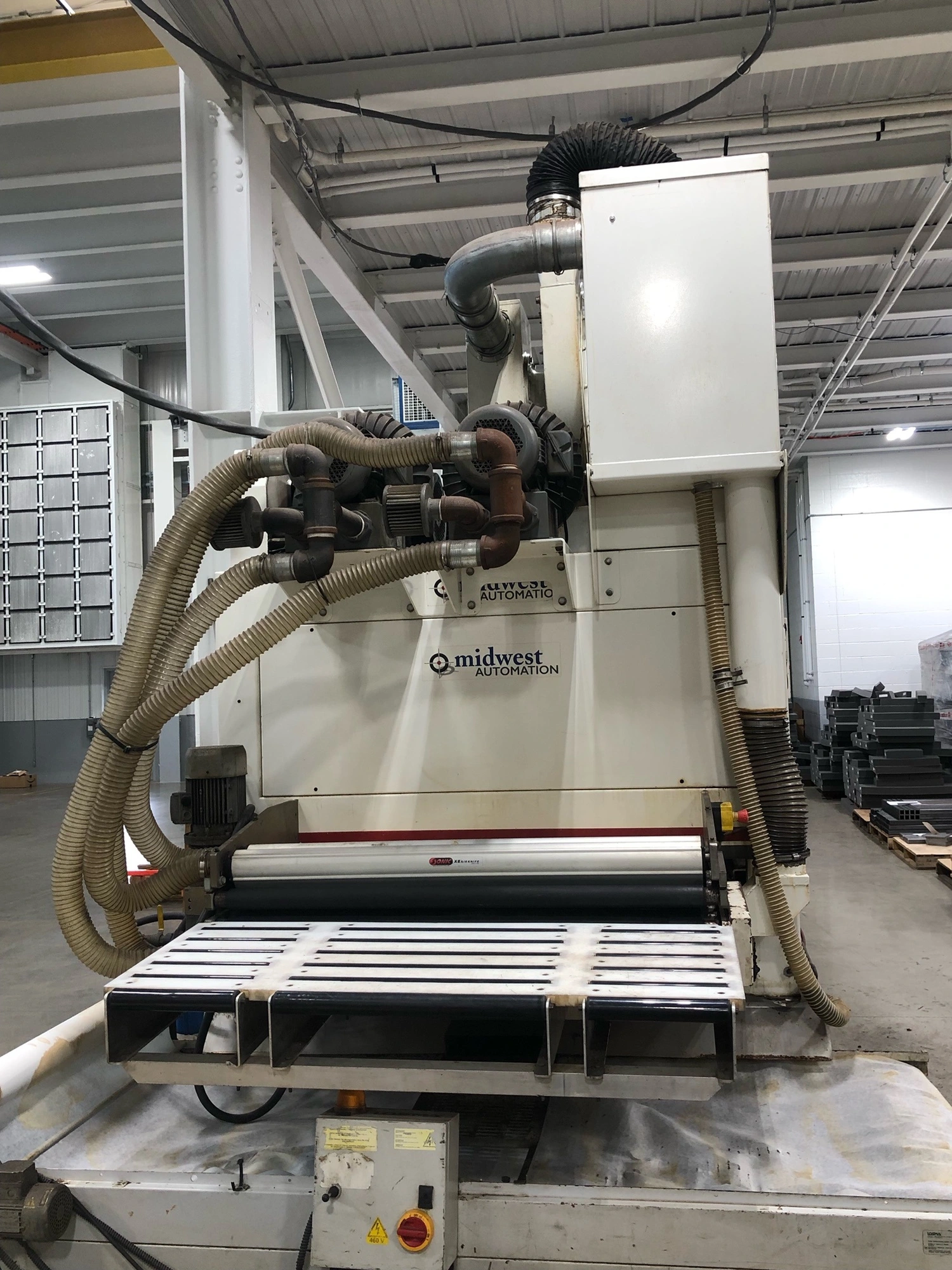

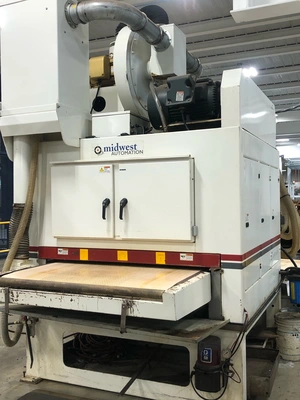

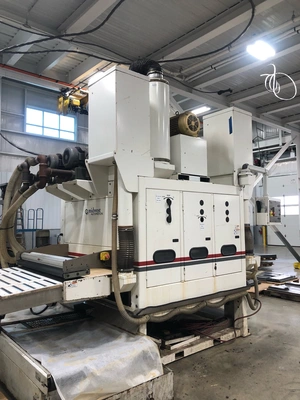

USED 2016 MIDWEST AUTOMATION / TIMESAVERS NAUTILUS - N3 5275 THREE HEAD

Midwest / Timesaver 3 Head Belt Grinding| Deburring| and Finishing Machine - 52" width - 1 belt head| 1 flat brush head| 1 round brush head - wet type with dryer - recirculating and filtration system - Built it 2016 now sold by Timesaver| 2016
Used midwest automation / Timeasaver Nautilus - N3 5275 Three Head. This pre-owned Deburring Machine is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this midwest automation / Timeasaver Deburring Machine we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.

Maximum Panel Width: 52"
Working Thickness Max: 6 inches (152 mm)
Working Thickness Min: 0.035 inches (0.9 mm)
Minimum Part Length with belt head assemblies: 11.75 inches (298 mm)
Minimum Part Length with 12-inch barrel brush assemblies: 14 inches (355 mm)
Minimum Part Length with top brush assemblies: 14.5 inches (368 mm)
Contact Drum Diameter: 8 inches (203 mm)
Drum speed: 3660 SFPM
Surface material: Rubber 35-40 durometer
Motor Size: 25 hp
Abrasive belt size: 52" x 75"
Electrical Requirement: 460V/3Ph/60Hz
Approx Shipping Dimensions: 8’ X 12’ X 102” Tall
Approx Shipping Weight: 15,000 pounds

Motorized Infeed Conveyor
Filtration System

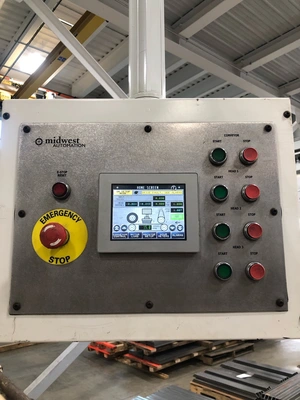

PC Control (HMI/PLC control with 5.7 inch color monitor)
Vacuum Table W/ Integrated Pump
Automatic Paper Bed Filter
Electronic variable feed speed control with AC drive and digital readout
